Front Riggings - Footboard Assembly

Print this page

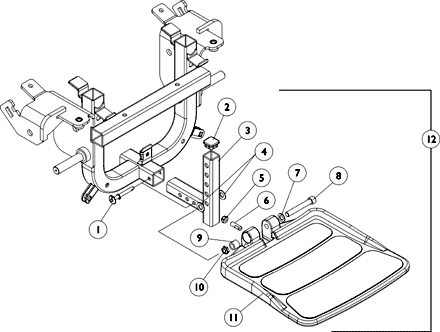

Front Rigging - Footboard Assembly

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1109011	Pin, Quick Release	1	1	$56.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1105038	Plug Button, Black (1" Square)	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1106369	Bracket, Footboard Support, Black	1	1	$31.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1049527	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1028769	Locknut (5/16-18)	1	1	$9.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1108457	Screw, Set Socket Flat Point (5/16-18 x 1")	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1065214	Washer, Flat (3/8 x 11/16 x 1/16")	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1106223	Screw, Socket Head (3/8-16 x 2-1/2")	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1105039	Bushing (3/8 x 5/8 x 1/2")	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1028486	Locknut, Low Profile (3/8-16)	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1114311	Footboard w/ Cover (11-1/4" W x 11-1/2" L)	1	1	$327.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1114312	Footboard Assembly	1	1	$450.00	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Includes items 1-11

Catalog Literature

Parts Books for Pronto® M91™ with SureStep® (Non-VA Chairs)
