Seats - Captain (Before 9/1/02)

Print this page

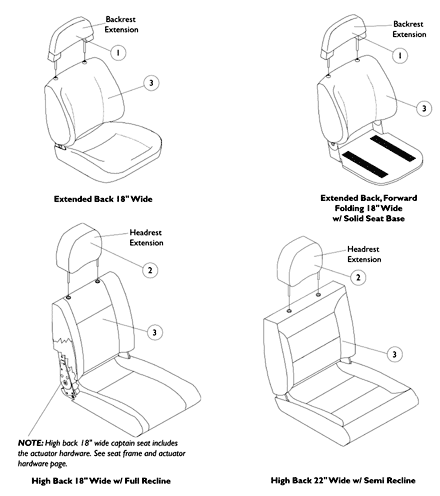

Captain Seat Assembly Before 9/1/02

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

See Chart

Added to Cart

Item Number		Description		Grey Fabric Vinyl		All Grey Vinyl		Brunswick Buff All Tan Vinyl
1.		Backrest, Extended Back (E.B.) (Before 3/25/98)		Note-A 1071578- NLA		N/A		N/A
1.		Backrest, Extended Back (3/25/98-8/3/99) and (E.B. Forward Folding Before 5/12/00)		Note-B 1078997- NLA		N/A		N/A
1.		Backrest, Extended Back (After 8/3/99) and (E.B. Forward Folding after 5/11/00)		Note-C 1090374- NLA		N/A		N/A
1.		Backrest, Extended Back (Before 7/22/99)		N/A		Note-B 1081285- NLA		Note-B 1086109- NLA
1.		Backrest, Extended Back (After 7/21/99)		N/A		Note-C 1090375- NLA		Note-C 1090376- NLA
2.		Headrest, High Back (Before 8/16/99)		Note-D 1071576- NLA		N/A		N/A
2.		Headrest, High Back (After 8/15/99) (18" and 22" Wide)		Note-C 1090379- NLA		N/A		N/A
2.		Headrest, High Back		N/A		Note-C 1090380- NLA		N/A
3.		18" Wide Extended Back (Before 8/4/99) w/Mtg. Screws		1091124- NLA		N/A		N/A
3.		18" Wide Extended Back (After 8/3/99)		1090371- NLA		N/A		N/A
3.		18" Wide Extended Back (Before 7/22/99)		N/A		1081284- NLA		1086108- NLA
3.		18" Wide Extended Back (After 7/21/99)		N/A		1090372- NLA		1090373- NLA
3.		18" Wide Extended Back Forward Folding (Before 5/12/00)		1085104- NLA		N/A		N/A
3.		18" Wide Extended Back Forward Folding (After 5/11/00)		1090370- NLA		N/A		N/A
3.		18" Wide High Back (Before 8/16/99)		Note-E 1070456- NLA		N/A		N/A
3.		18" Wide High Back (After 8/15/99)		Note-E 1091068- NLA		N/A		N/A
3.		18" Wide High Back with Full Recline		N/A		1091069- NLA		N/A
3.		22" Wide High Back with Semi Recline		1098287- NLA		N/A		N/A

Create/add to Wishlist

Create/add to Wishlist

See chart-note

Captain Seat Assembly Before 9/1/02

N/A

N/A

N/A
