EQUIPMENT US Site

1

420166

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
	Pad, Calf SmartLeg with Cover - Right (16" W)	1	1
	Pad, Calf SmartLeg with Cover - Left (16" W)	1	1

Kit, Calf Pad 16" - Right and Left SmartLeg

1

Create/add to Wishlist

1

420167

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
	Pad, Calf SmartLeg with Cover - Right (18" W)	1	1
	Pad, Calf SmartLeg with Cover - Left (18" W)	1	1

Kit, Calf Pad 18" - Right and Left SmartLeg

1

Create/add to Wishlist

1

420172

NLA - Cover, Calf Pad, Black (16")

1

N/A

Create/add to Wishlist

1

420173

Cover, Calf Pad, Black (18")

1

Create/add to Wishlist

2

350044

NLA - Bar, Calf Pad Mounting

1

N/A

Create/add to Wishlist

3

04526X019

Plate, Legrest Pad

1

2

$9.00

Create/add to Wishlist

4

1108194

NLA - Locknut (#10-32)

1

4

N/A

Create/add to Wishlist

5

1108122

NLA - Locknut (5/16-18)

1

2

N/A

Create/add to Wishlist

6

1108141

NLA - Screw, Phillips Flat Head (#10-32 x 1")

1

4

N/A

Create/add to Wishlist

7

420151-1

Tube, Pivot/Slide, Chrome - Right

1

N/A

B

Create/add to Wishlist

7

1129528

Tube, Pivot/Slide, Grey - Right

1

N/A

C

Create/add to Wishlist

7

420150-1

Tube, Pivot/Slide, Chrome - Left

1

N/A

B

Create/add to Wishlist

7

1129529

Tube, Pivot/Slide, Grey - Left

1

N/A

C

Create/add to Wishlist

8

420197

Plate, Footrest (16")

1

Create/add to Wishlist

8

420198

NLA - Plate, Footrest (18")

1

N/A

Create/add to Wishlist

9

420193

NLA - Clamp, Footplate

1

N/A

Create/add to Wishlist

10

1025195

Locknut (1/4-20)

1

2

$9.00

Create/add to Wishlist

11

1008495

Screw, Socket Button Head (1/4-20 x 1-1/2")

1

2

$10.00

Create/add to Wishlist

12

1018133

Plug Button, Black (5/8")

1

Create/add to Wishlist

13

1072342

Pivot/Slide Tube w/ Footplate, Chrome (16")

2

1

A ,B

Create/add to Wishlist

13

1129618

NLA - Pivot/Slide Tube w/ Footplate, Grey (16")

2

1

N/A

A ,C

Create/add to Wishlist

13

1072343

NLA - Pivot/Slide Tube w/ Footplate, Chrome (18")

2

1

N/A

A ,B

Create/add to Wishlist

13

1129603

Pivot/Slide Tube w/ Footplate, Grey (18")

2

1

N/A

A ,C

Note Code	Definition
A	Includes Items 7-12.
B	Before 1/24/05. For use on chairs with "Chrome Frame Finish."
C	After 1/23/05. For use on chairs with "Grey Frame Finish."

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

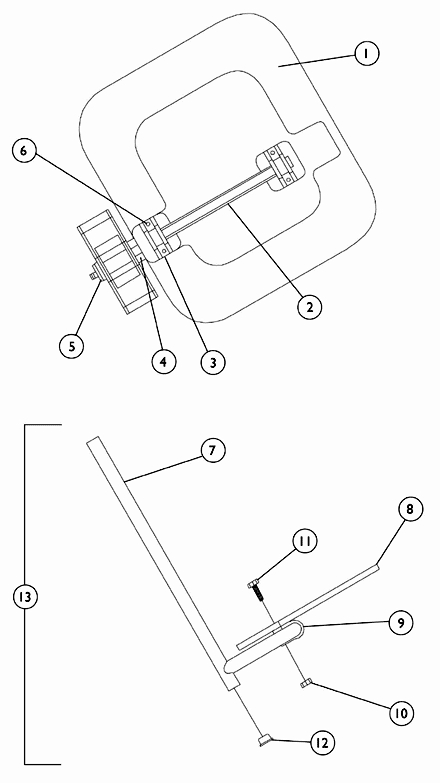

Front Riggings - Legrest Calf Pad Assembly & Pivot/Slide Tube w/ Footplate
