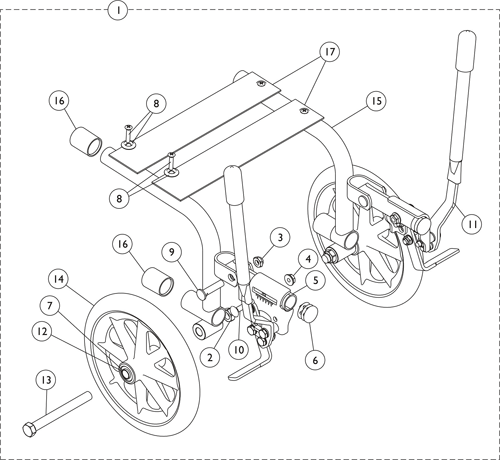

Accessories - Transport Kit w/ Luggage Rack

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1042420	NLA - Kit, Transport w/Luggage Rack	1	1	N/A	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	20225X000	Locknut (7/16-20)	1	2	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1107321	Nut, Low Cap (5/16"-24)	1	2	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	16721X000	Locknut (1/4-20)	1	2	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1014333	NLA - Tube, Mounting	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1027095	Plug Button, Black (7/8")	1	2	$9.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1040102	Bearing (7/16")	1	4	$11.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1076283	Screw, Phillips Oval Head w/ Washer (#10-16 x 7/8")	1	4	$10.00	C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1041541	Package, Screw Phillips Csunk Oval Head w/ Washer (#10-16 x 7/8") (12 ea.)	1	4	$15.00	D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	11232X009	Bolt, Lug (5/16-24 x 1-3/8")	1	2	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1011479	Bolt, Carriage (1/4-20 x 1-1/4")	1	2	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1014353	NLA - Wheel Lock, Push to Lock - Right	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1014354	NLA - Wheel lock, Push to Lock - Left	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1037911	Spacer, Bearing (7/16 x 5/8 x 1-5/8")	1	2	$13.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	47203X024	NLA - Bolt, Hex Head (7/16-20 x 4")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
14	1041590	Wheel, Black (8")	1	2			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
15	04609X015	NLA - Tube, Support - Right	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
15	04609X016	NLA - Tube, Support - Left	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
16	1016346	Cap, End, Tube, Black (7/8")	1	4	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
17	47465X000	NLA - Webbing, Luggage Strap	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1016945	NLA - Loop, Luggage Belt	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1016946	NLA - Hook, Luggage Belt	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Not Shown
B	Includes items 1-16 and the items "not shown"
C	Package includes 25 screws w/washers.
D	Package includes 12 screws w/washers.

Catalog Literature

Parts Books for Tracer® / Tracer® IV (Before 10/1/03) Tracer® Transport Tracer® LX & LX Recliner Tracer® Plus / Tracer® LT
