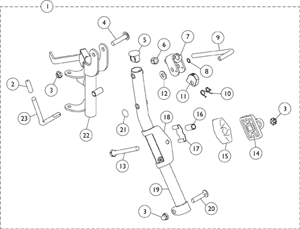

Front Riggings - Legrest Support Assembly -TR14, TRP14, TLX4A/C/S, T934A/C/S

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1041824	Legrest Support Assembly, Black - Right	1	1		A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	1041825	Legrest Support Assembly, Black - Left	1	1		A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1040060	Tip, Plastic, Black	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1107321	Nut, Low Cap (5/16"-24)	1	3	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1030948	Screw, Slotted Truss Head (5/16-24 x 1-1/2")	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1095433	Plug Button, Black (7/8")	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	10261X000	Nut, Acorn (5/16-24)	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	04528X002	Bracket, Release, Black	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1040831	Ring, Snap	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	42326X001	Bar, Ratchet	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1037485	Spring, Release	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1037125	Cam, Legrest	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1013519	Washer, Nylon (5/16 x 11/16 x 1/16")	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	1014807	Screw, Hex Head (5/16-24 x 3-1/4")	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
14	04526X019	Plate, Legrest Pad	1	1	$9.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
15	1091220	Spacer, Legrest	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
16	47328X003	Bushing, Pivot (5/16 x 7/16 x 7/8")	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
17	48823X008	Spring, Leaf	1	1	$9.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
18	1025104	Bracket, Legrest, Chrome	1	1	$16.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
19	1095434	NLA - Tube, Support, Chrome - Right	1	1	N/A	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
19	1095435	NLA - Tube, Support, Chrome - Left	1	1	N/A	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
20	11232X009	Bolt, Lug (5/16-24 x 1-3/8")	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
21	1096773	Nut, Push Dome (5/16")	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
22	1031581	NLA - Legrest Support Tube Assembly, Adult, Black - Right	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
22	1031582	Legrest Support Tube Assembly, Adult, Black - Left	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
23	1037126	Handle, Release	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1046328	NLA - Kit, Ratchet	1	1	N/A	C ,D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Includes items 2-23.
B	Due to product improvement, a plug button (#1095433) must also be ordered.
C	Not shown.
D	Includes Items 2-6, 8-13, 21 and instruction sheet.

Catalog Literature

Parts Books for Tracer® / Tracer® IV (Before 10/1/03) Tracer® Transport Tracer® LX & LX Recliner Tracer® Plus / Tracer® LT
