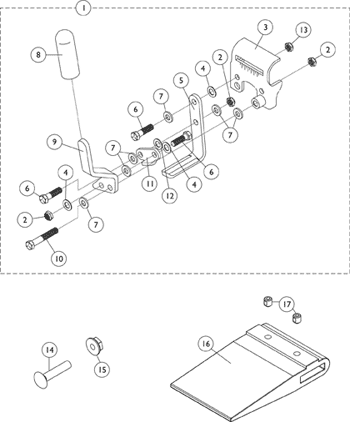

Wheel Locks - Link-Pivot Style, Permanent Arm - Hemi
| Item | Part/Kit | Part/Kit Description | Qty/Pkg | Qty/Asbly | MSRP | View Parts Notes | |
|---|---|---|---|---|---|---|---|
| 1 | 1045857 | Wheel Lock Assembly, Pull to Lock, Black - Right | 1 | 1 |
$61.00 |
A |
Create/add to WishlistCreate/add to Wishlist |
| 1 | 1045858 | Wheel Lock Assembly, Pull to Lock, Black - Left | 1 | 1 |
$61.00 |
A |
Create/add to WishlistCreate/add to Wishlist |
| 2 | 60320X000 | Locknut (1/4-28) | 1 | 3 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 3 | 1015445 | NLA - Bracket, Mounting, Chrome - Right | 1 | 1 | N/A | B |
Create/add to WishlistCreate/add to Wishlist |
| 3 | 1015446 | NLA - Bracket, Mounting, Chrome - Left | 1 | 1 | N/A | B |
Create/add to WishlistCreate/add to Wishlist |
| 3 | 1045843 | NLA - Bracket, Mounting, Chrome - Right | 1 | 1 | N/A | C |
Create/add to WishlistCreate/add to Wishlist |
| 3 | 1045844 | NLA - Bracket, Mounting, Chrome - Left | 1 | 1 | N/A | C |
Create/add to WishlistCreate/add to Wishlist |
| 4 | 40157X016 | NLA - Washer (1/4 x 1/2 x 1/16") | 1 | 3 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 5 | 1015443 | NLA - Shoe | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 6 | 60274X012 | NLA - Screw, Hex Head (1/4-28 x 3/4") | 1 | 3 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 7 | 1010398 | Washer, Nylon (1/4 x 1/2 x 1/16") | 1 | 6 |
Create/add to WishlistCreate/add to Wishlist |
||
| 8 | 47376x024 | Tip, Rubber Wheel Lock Handle, Black | 1 | 1 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 9 | 1016590 | NLA - Handle, Pull, Hemi, Chrome - Right | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 9 | 1016591 | NLA - Handle, Pull, Hemi, Chrome - Left | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 10 | 1007017 | NLA - Screw, Hex Head (1/4-20 x 1-1/4") | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 11 | 1016592 | NLA - Link, Chrome | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 12 | 40157X004 | Spacer, Nylon (1/4 x 7/16 x 1/8") | 1 | 4 |
$10.00 |
B |
Create/add to WishlistCreate/add to Wishlist |
| 12 | 40157X016 | NLA - Washer (1/4 x 1/2 x 1/16") | 1 | 1 | N/A | C |
Create/add to WishlistCreate/add to Wishlist |
| 13 | 60275X000 | Locknut (1/4-20) | 1 | 1 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 14 | 1011479 | Bolt, Carriage (1/4-20 x 1-1/4") | 1 | 1 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 15 | 16721X000 | Locknut (1/4-20) | 1 | 1 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 16 | 1016980 | Spacer, Wheel Lock Shoe (2-63/64") | 1 | 1 |
$12.00 |
D |
Create/add to WishlistCreate/add to Wishlist |
| 16 | 1024431 | Spacer, Wheel Lock Shoe (1-45/64") | 1 | 1 |
$16.00 |
D |
Create/add to WishlistCreate/add to Wishlist |
| 17 | 1008438 | Screw, Set Socket Cup Point (#8-32 x 3/16") | 1 | 2 |
$10.00 |
D |
Create/add to WishlistCreate/add to Wishlist |
Assembly Part Notes
| Note Code | Definition |
|---|---|
| A | Includes items 2-13. |
| B | Before 5/94. |
| C | After 4/94. |
| D | These items are needed when 20" or 22" rear wheels are on the chair. These parts are not included with wheel lock. |
