Seats - Captain (Before 11/01/01)

Print this page

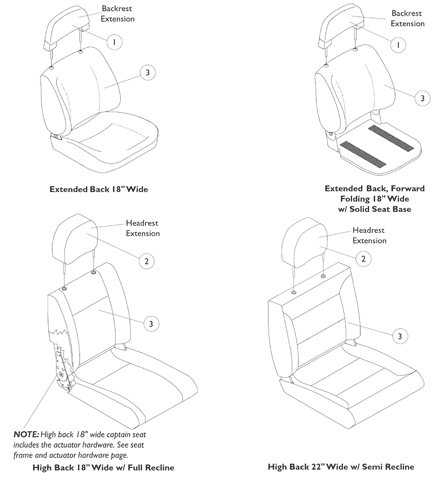

Captain Seat Assembly - Before 11/01/01

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

See Chart

Added to Cart

Item Number		Backrest/Headrest Extension and Captain Seat Assemblies		Grey Fabric/Vinyl		All Grey Vinyl		Brunswick Buff All Tan Vinyl
1.		Backrest, Extended Back		Note-A 1090374- NLA		Note-A 1090375- NLA		Note-A 1090376- NLA
1.		Backrest, Extended Back Forward Folding (Before 5/12/00)		Note-B 1078997- NLA		N/A		N/A
1.		Backrest, Extended Back Forward Folding (After 5/11/00)		Note-A 1090374- NLA		N/A		N/A
2.		Headrest, High Back (For 18 and 22" Wide)		Note-A 1090379- NLA		Note-A 1090380- NLA		N/A
3.		18" W Extended Back		1090371- NLA		1090372- NLA		1090373- NLA
3.		18" W Extended Back Forward Folding (Before 5/12/00)		1085104- NLA		N/A		N/A
3.		18" W Extended Back Forward Folding (After 5/11/00)		1090370- NLA		N/A		N/A
3.		18" Wide High Back with Full Recline		Note-C 1091068- NLA		1091069- NLA		N/A
3.		22" Wide High Back with Semi Recline		1098287- NLA		N/A		N/A

Create/add to Wishlist

Create/add to Wishlist

See chart-note

Chart Part Notes

Chart Code	Definition
A	4-3/4" Backrest/Headrest Post Spacing
B	9" Backrest Post Spacing
C	High back 18" wide captain seats includes actuator attaching hardware.

Captain Seat Assembly - Before 11/01/01

N/A

N/A

N/A

Catalog Literature

Parts Books for Pronto® R2™, Ranger II™ MWD for WSBT (After 2/29/2000)
