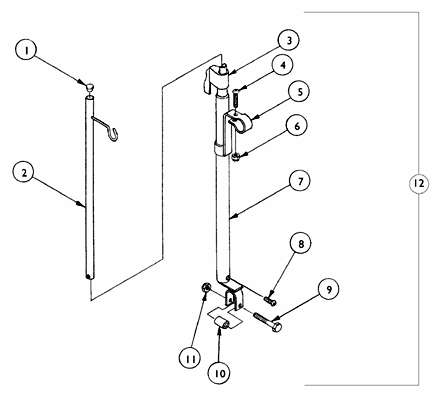

Accessories - I.V. Rod

Print this page

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1027095	Plug Button, Black (7/8")	1	1	$9.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	04701X028	Rod, I.V.	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	12592X000	NLA - Adjustment Lock Assembly, Chrome	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	16718X000	NLA - Screw, Phillips Pan Head (#10-32 x 7/8")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1020082	Bracket, Mounting, Chrome	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	7930365	NLA - Locknut (#10-32)	25	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1017623	Socket, I.V.	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	21243X000	NLA - Screw, Phillips Pan Head (#6-20 x 3/8")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	11239X001	Screw, Hex Head (5/16-24 x 1-1/2")	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1102577	Spacer, Black (5/16 x 11/16 x 15/16")	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	7930363	NLA - Package, Locknut (5/16"-24)	25	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1036820	NLA - Rod, I.V.	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1083233	Instruction Sheet	1	1		B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Includes items 1-11
B	Not Shown

Catalog Literature

Parts Books for Patriot®
