Arms - Half Arm & Hardware

Print this page

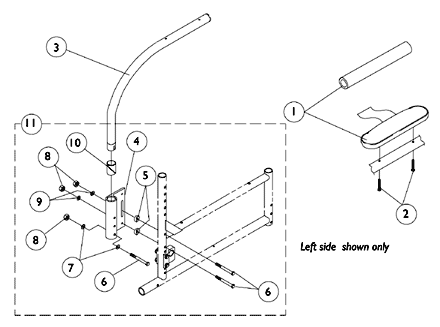

Half Arm and Hardware

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	8881053570	Kit, Arm Pad w/ Screws, Desk Length (Pair)	2	1	$53.00	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	1032244	Grip, Foam Hand (9" L)	1	1	$2.50		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1026107	Screw, Phillips Pan Head (#10-32 x 1-3/8")	1	2	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1069815	NLA - Half Arm Assembly, Black - Right	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1069816	NLA - Half Arm Assembly, Black - Left	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1032206	NLA - Socket, Arm, Rear - Right	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1032207	NLA - Socket, Arm, Rear - Left	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1009861	Spacer, Coved (1/4 x 11/16 x 1/2")	1	2	$9.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1055348	Screw, Hex Head (1/4-28 x 1-3/4")	1	3	$9.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1026907	Washer (1/4 x 1/2 x 1/16")	1	2	$7.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	7930334	NLA - Locknut (1/4-28)	25	3	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1026900	Washer (1/4 x 23/32 x 1/16")	1	2	$1.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1018687	Sleeve, Bearing	1	1	$5.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1027062	Kit, Half Arm Mounting Hardware	2	1	$114.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Specify upholstery color, see page titled, "Upholstery Color Options" when ordering.
