Arms - Van Seat & Hardware (18" W) (Before 9/1/02)

Print this page

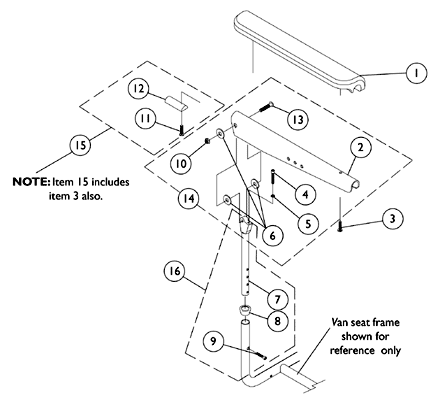

Arms - Van Seat 18

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1117328	Kit, Arm Pad w/ Screws, Full Length, Urethane Waterfall, Black (13" L x 2-5/8" W)	1	2	$66.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1071359	NLA - Plate, Armrest (Black)	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1028755	Screw, Phillips Pan Head (#10-32 x 5/8")	1	2	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1009837	Screw, Socket Button Head (1/4-20 x 1")	1	2	$7.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1025711	NLA - Nut, Hex (1/4-20)	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1025704	Washer, Flat (5/16 x 5/8 x 1/16")	1	6	$7.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1070928	Tube, Arm, Upper Height and Width Adjustable, Black	1	2			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	15680X013	Anti-Rattle (1")	1	2	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1003545	Screw, Socket Head (1/4-20 x 1-1/4")	1	2	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1026906	NLA - Locknut (5/16-24)	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1102546	NLA - Screw, Phillips Pan Head (#10-32 x 7/8")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1070106	NLA - Insert, Armrest, Black	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	1031026	Screw w/ Lug (5/16-24 x 1-3/8")	1	2	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
14	1074120	NLA - Kit, Armrest Attaching Hardware (Pair)	2	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
15	1073378	NLA - Kit, Arm Pad Attaching Hardware	2	1	N/A	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
16	1070756	NLA - Arm Tube Assembly, Upper Adjustable (Pair)	2	1	N/A	C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Includes items 2, 4, 5, 6, 10, 13
B	Includes items 3, 11, 12
C	Includes items 7-9

Catalog Literature

Parts Books for Pronto® M50™ Pronto® M51™ with SureStep® (Before 1/20/05)
