EQUIPMENT US Site

1

See Chart

Added to Cart

Right		Left
1109203- NLA		1109204- NLA

Create/add to Wishlist

#1 Side Shrouds Candy Apple Red (Before 8/9/02)

N/A

Create/add to Wishlist

1

See Chart

Added to Cart

Right		Left		Pair
1112805- NLA		1112806- NLA		1112824- NLA

Create/add to Wishlist

#1 Side Shrouds Candy Red Pearl (After 8/8/02)

N/A

Create/add to Wishlist

1

See Chart

Added to Cart

Right		Left
1109207- NLA		1109208- NLA

Create/add to Wishlist

#1 Side Shrouds Dark Blue Metallic (Before 7/24/02)

N/A

Create/add to Wishlist

1

See Chart

Added to Cart

Right		Left		Pair
Note-A 1112811- NLA		See Note		1112823

Create/add to Wishlist

See chart-note

Chart Part Notes

Chart Code	Definition
A	No longer available as a service part in the field.

#1 Side Shrouds Dark Blue Pearl (After 7/23/02)

N/A

Create/add to Wishlist

1

See Chart

Added to Cart

Right		Left		Pair
Note-A 1112817- NLA		Note-A 1112818- NLA		1112825- NLA

Create/add to Wishlist

See chart-note

Chart Part Notes

Chart Code	Definition
A	No longer available. Use 1112825 as its replacement.

#1 Side Shrouds Magic Black (After 8/28/02)

N/A

Create/add to Wishlist

1

See Chart

Added to Cart

Right		Left
1109205- NLA		1109206- NLA

Create/add to Wishlist

#1 Side Shrouds Metallic Black (Before 8/29/02)

N/A

Create/add to Wishlist

2

1025451

Screw, Slotted Hex Washer Head (#10-32 x 5/8")

1

8

$8.00

Create/add to Wishlist

3

1070587

Washer, Flat (3/16 x 5/8 x 1/16")

1

12

$10.00

Create/add to Wishlist

4

1028755

Screw, Phillips Pan Head (#10-32 x 5/8")

1

4

$10.00

Create/add to Wishlist

5

1106366

NLA - Plate, Shroud -Right

1

N/A

Create/add to Wishlist

5

1106367

NLA - Plate, Shroud -Left

1

N/A

Create/add to Wishlist

6

1106343

NLA - Hardware, Shroud, Side (1 Pair)

1

N/A

B

Create/add to Wishlist

7

1109032

NLA - Decal, Shroud - Pronto M71

1

N/A

Create/add to Wishlist

8

1104797

Decal, Drive/Push

1

$10.00

Create/add to Wishlist

9

1108464

NLA - Kit, Shroud Clamp Hardware - Right

1

N/A

C ,E

Create/add to Wishlist

9

1108465

NLA - Kit, Shroud Clamp Hardware - Left

1

N/A

C ,E

Create/add to Wishlist

10

1109036

NLA - Bracket, Clamp Shroud Mounting, Black - Right

1

N/A

Create/add to Wishlist

10

1109037

NLA - Bracket, Clamp Shroud Mounting, Black - Left

1

N/A

Create/add to Wishlist

11

1026907

Washer (1/4 x 1/2 x 1/16")

1

$7.20

Create/add to Wishlist

12

1025736

Locknut (1/4-20)

1

$7.20

Create/add to Wishlist

13

1109035

NLA - Clamp, Shroud

1

N/A

Create/add to Wishlist

14

1025713

NLA - Screw, Hex Head (1/4-20 x 1")

1

N/A

Create/add to Wishlist

15

1106503

NLA - Battery Shroud without Decal, Black - Rear

1

N/A

D

Create/add to Wishlist

16

1119281

NLA - Plate, Name, Patent Numbers

1

N/A

Create/add to Wishlist

17

1106502

NLA - Battery Shroud without Decal, Black - Front

1

N/A

A

Create/add to Wishlist

18

1095489

Decal, Invacare 3-D Logo (2-1/2" L)

1

2

$7.00

Create/add to Wishlist

19

1070587

Washer, Flat (3/16 x 5/8 x 1/16")

1

2

$10.00

Create/add to Wishlist

20

1117240

Screw, Thumb (#10-32 x 1/2")

1

2

$17.00

Note Code	Definition
A	This shroud encompasses the controller as well as the batteries.
B	Includes items 2-5
C	Includes items 10-14
D	This shroud encompasses the battery charger as well as the batteries.
E	This Washer is not required for use after 2/6/07; Kit will not contain the Washer after 2/6/07.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

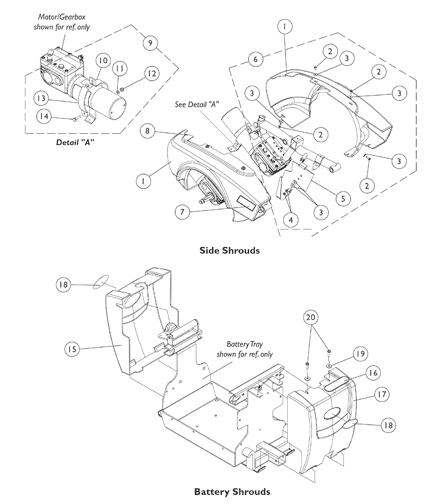

Shrouds & Attaching Hardware (Before 7/14/03)
