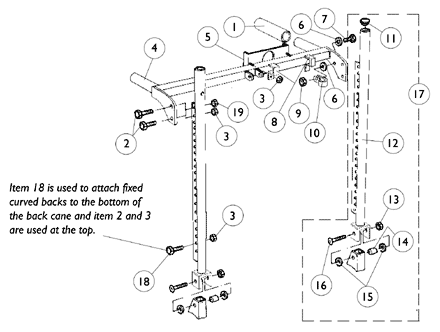

Canes - Back - Tilt/Recline & Recline Only

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	0014500	NLA - Grip, Hand	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	0053006	NLA - Screw, Hex Head (1/4-20 x 3/4")	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	7930333	Locknut (1/4-20)	25	6	$44.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1072883	Push Bar with Hardware, 14" Wide	1	1		B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1072884	Push Bar with Hardware, 15" Wide	1	1		B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1072812	Push Bar with Hardware, 16" Wide	1	1		B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1072813	Push Bar with Hardware, 17" Wide	1	1		B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1072814	Push Bar with Hardware, 18" Wide	1	1		B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1072815	Push Bar with Hardware, 19" Wide	1	1		B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1072816	Push Bar with Hardware, 20" Wide	1	1		B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1072885	Push Bar with Hardware, 21" Wide	1	1		B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1072886	Push Bar with Hardware, 22" Wide	1	1		B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	0117206	NLA - Plate, Max Controller Mounting (4.0-5.5)	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	0050006	NLA - Lockwasher, External Star (1/4")	2	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	0067106	NLA - Screw, Phillips Pan Head (#10-32 x 1/2")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	0188902	Bracket, Max Controller Mounting	1	2			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	7930332	NLA - Locknut, High Profile (#10-32)	25	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	0062800	NLA - Bracket, Cable/Wire Mounting, Black	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1027095	Plug Button, Black (7/8")	1	2	$9.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	0029324	NLA - Post, Back, Recliner	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	0054906	Locknut, High Profile (5/16-18)	1	2	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
14	0060600	Bushing (7/16 x 5/16 x 1-1/4")	1	2			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
15	0055800	NLA - Washer, Nylon (7/16 x 3/4 x 3/32")	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
16	0055506	NLA - Screw, Button Head, Socket (5/16-18 x 2")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
17	1072811	NLA - Back Cane Assembly	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
18	0053006	NLA - Screw, Hex Head (1/4-20 x 3/4")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
19	7930323	NLA - Package, Locknut (1/4-20)	25	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Only used on systems with 4.0 to 5.5 MAX box.
B	Includes items 1-3

Catalog Literature

Parts Books for Tarsys® Basic Tilt, Tilt Only, Recline 4XP, Recline Only, Tilt/Recline
