Wheel Lock

Print this page

Click to Enlarge

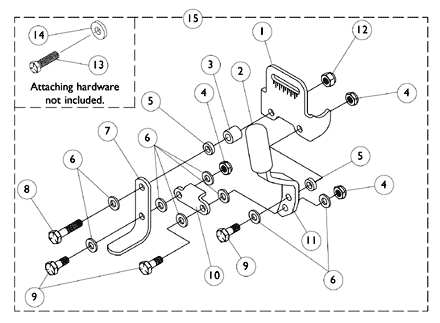

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1057912	NLA - Bracket, Black	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	47376x024	Tip, Rubber Wheel Lock Handle, Black	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1057946	NLA - Spacer (17/64 x 31/64 x 7/16")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1025765	Locknut (1/4-28)	1	1	$7.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1026105	NLA - Spacer, Nylon (1/4 x 7/16 x 1/8")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1026033	Washer, Nylon (1/4 x 1/2 x 1/16")	1	8	$7.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1031833	NLA - Shoe, Wheel Lock	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1021406	Screw, Hex Head (1/4-20 x 1-1/4")	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1028687	Screw, Hex Head (1/4-28 x 3/4")	1	3	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1018733	NLA - Link, Stop, Black	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1021408	NLA - Handle, Wheel Lock, Black - Right	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1021409	NLA - Handle, Wheel Lock, Black - Left	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1025736	Locknut (1/4-20)	1	1	$7.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	1025708	NLA - Bolt, Hex Head Cap (1/4-20 x 3/4")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
14	1018739	Washer (1/4 x 5/8 x 3/32")	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
15	1057947	NLA - Wheel Lock Assembly - Right	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
15	1057948	NLA - Wheel Lock Assembly - Left	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1058899	Wheel Lock Extension Handle Assembly, Black (6")	1	1	$38.00	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1058900	Wheel Lock Extension Handle Assembly, Black (8")	1	1	$50.00	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Not Shown

Catalog Literature

Parts Books for Storm Series® Ranger II™
