EQUIPMENT US Site

1

See Chart

Added to Cart

Frame Type	Non-Recliner	Recliner
Adult - Right	Note-A ,B 8881101699- NLA	Note-A ,B 8881062457- NLA
Adult - Left	Note-A ,B 8881101700	Note-A ,B 8881062458- NLA
Hemi - Right	Note-A ,B 8881101701	Note-A ,B 8881062459- NLA
Hemi - Left	Note-A ,B 8881101702	Note-A ,B 8881062460- NLA

Create/add to Wishlist

See chart-note

Chart Part Notes

Chart Code	Definition
A	Specify frame finish when ordering. See page titled "Frame Finishes, Touch-Up Paints and Upholstery Colors."
B	Decals not included with frame. See page titled "Packaging, Literature and Decals."

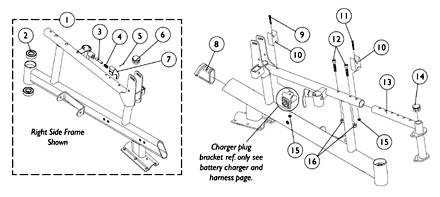

Item # 1 Side Frames and Hardware

N/A

A

Create/add to Wishlist

2

40117X006

Bearing (5/8")

1

2

$11.00

Create/add to Wishlist

3

1028594

Pin, Arm Lock, Black

1

$8.00

Create/add to Wishlist

4

47471X074

Spring, Arm Lock

1

$8.00

Create/add to Wishlist

5

1089723

Rivet, Tubular

1

$8.00

Create/add to Wishlist

6

1029501

Plug Button, Black (1")

1

$7.20

Create/add to Wishlist

7

1090768

Kit, Lock Handle w/Rivets (Pair)

2

1

$16.00

Create/add to Wishlist

8

1059371

NLA - Cap, End, Oval

1

N/A

Create/add to Wishlist

9

1085124

NLA - Screw, Socket Flat Head (#10-32 x 1-3/4")

1

2

N/A

Create/add to Wishlist

10

1007541

Clamp, Seat

1

2

$8.00

Create/add to Wishlist

11

1085134

NLA - Screw, Socket Flat Head (#10-32 x 1-5/8")

1

2

N/A

Create/add to Wishlist

12

1003545

Screw, Socket Head (1/4-20 x 1-1/4")

1

2

$10.00

Create/add to Wishlist

13

1060099

NLA - Hanger, Front Rigging, Black - Right

1

N/A

Create/add to Wishlist

13

1060100

NLA - Hanger, Front Rigging, Black - Left

1

N/A

Create/add to Wishlist

14

1027097

Plug Button, Black (3/4")

1

$7.50

Create/add to Wishlist

15

1025731

Locknut (#10-32)

1

2

$8.00

Create/add to Wishlist

16

1025736

Locknut (1/4-20)

1

2

$7.20

Frames, Side and Hardware (After 9/30/00)
