Accessories - Utility Tray

Print this page

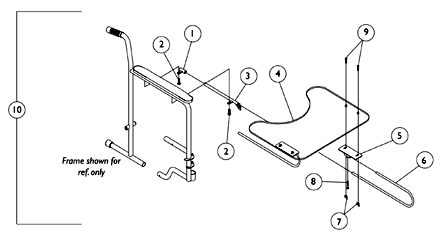

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	04570X002	NLA - Tube, Support, Slide, Chrome	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	11008X011	Screw, Phillips Round Head (#10-32 x 1-3/8")	1	2	$6.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	04570X009	NLA - Tube, Slide Lock, Full Length Arm - Right	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	04570X010	NLA - Tube, Slide Lock, Full Length Arm - Left	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	04570X011	NLA - Tube, Slide Lock, Desk Length Arm - Right	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	04570X012	NLA - Tube, Slide Lock, Desk Length Arm - Left	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	47469X006	NLA - Tray	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1009341	NLA - Bracket, Tray	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1010922	NLA - Tube, Support	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	20148X004	NLA - Nut, Wing (1/4-20)	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	60284X001	Screw, Socket Head (1/4-20 x 1/2")	1	2	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	10123X006	Bolt, Carriage (1/4-20 x 3/4")	1	4	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1035965	NLA - Tray, Utility, Full Length Arm	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1035966	NLA - Tray, Utility, Desk Length Arm	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1023704	NLA - Instruction Sheet	1	1	N/A	A ,B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Not Shown
B	Item is no longer available from the Invacare Service Parts Department. Refer to the Invacare Website under "Product Literature Search". Enter the part number in the "Keywords" field and download a free PDF version copy.

Catalog Literature

Parts Books for Youthmobile 3000
