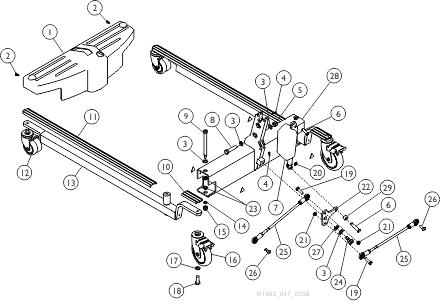

Base Assembly - RPL600-2

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1132017

Shroud

$74.00

Create/add to Wishlist

1023632

Clip, Shroud

$9.00

Create/add to Wishlist

1026174

Washer (1/2 x 7/8 x 3/64")

$9.00

Create/add to Wishlist

51000M743

Pin, Hitch (3/8 x 1-3/16")

$9.00

Create/add to Wishlist

1078981

Locknut (1/2-13)

$10.00

Create/add to Wishlist

1142010

Pin, Clevis (10mm x 44mm)

$14.00

Create/add to Wishlist

1132028

Actuator Motor

$403.00

Create/add to Wishlist

1078979

Screw, Hex Head (1/2-13 x 2-1/4")

$10.00

Create/add to Wishlist

1062424

Screw, Shoulder Hex Socket Head (1/2" x 5", 3/8-16)

$12.00

Create/add to Wishlist

1079137

Cover, Rear Leg (Short) - Low Base/ Standard Base

$14.00

Create/add to Wishlist

1070114

Cover, Front Leg (Long)

$48.00

Create/add to Wishlist

1123560

Caster, Swivel Dual (3")

$56.00

Create/add to Wishlist

1095672

Leg, Adjustable, Low Base, Grey

$137.00

Create/add to Wishlist

1065214

Washer, Flat (3/8 x 11/16 x 1/16")

$10.00

Create/add to Wishlist

1065216

Locknut (3/8-16)

$10.00

Create/add to Wishlist

1123539

Caster Assembly, Swivel w/ Brake (5")

$55.00

Create/add to Wishlist

1110421

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
	Caster Assembly, Swivel w/ Brake (5")	1	2
	Caster Assembly, Swivel w/ Brake (5")	1	2
	Bushing (15/32 x 1-1/16 x 9/32")	1	2
	Instruction Sheet	1	1
	Instruction Sheet	1	1
	Caster Assembly, Swivel w/ Brake (5")	1	2
	Bushing (15/32 x 1-1/16 x 9/32")	1	2
	Bushing (15/32 x 1-1/16 x 9/32")	1	2
	Bushing (15/32 x 1-1/16 x 9/32")	1	2
	Instruction Sheet	1	1
	Instruction Sheet	1	1
3	Bushing (15/32 x 1-1/16 x 9/32")	1	2
	Bushing (15/32 x 1-1/16 x 9/32")	1	2
	Instruction Sheet	1	1
	Caster Assembly, Swivel w/ Brake (5")	1	2
	Bushing (15/32 x 1-1/16 x 9/32")	1	2
	Instruction Sheet	1	1
2	Caster Assembly, Swivel w/ Brake (5")	1	2
	Bushing (15/32 x 1-1/16 x 9/32")	1	2
	Instruction Sheet	1	1
	Bushing (15/32 x 1-1/16 x 9/32")	1	2
	Instruction Sheet	1	1
	Caster Assembly, Swivel w/ Brake (5")	1	2
	Instruction Sheet	1	1
	Caster Assembly, Swivel w/ Brake (5")	1	2
	Instruction Sheet	1	1
	Caster Assembly, Swivel w/ Brake (5")	1	2
	Bushing (15/32 x 1-1/16 x 9/32")	1	2
	Instruction Sheet	1	1
	Instruction Sheet	1	1
	Caster Assembly, Swivel w/ Brake (5")	1	2
	Caster Assembly, Swivel w/ Brake (5")	1	2
	Caster Assembly, Swivel w/ Brake (5")	1	2
	Caster Assembly, Swivel w/ Brake (5")	1	2
	Bushing (15/32 x 1-1/16 x 9/32")	1	2
	Caster Assembly, Swivel w/ Brake (5")	1	2
	Bushing (15/32 x 1-1/16 x 9/32")	1	2
	Instruction Sheet	1	1
	Bushing (15/32 x 1-1/16 x 9/32")	1	2

Kit, Caster Assembly, Swivel w/ Brake (5") (Pair)

$99.00

D ,E

Create/add to Wishlist

1014371

Lockwasher (1/2")

$10.00

Create/add to Wishlist

1073884

Screw, Hex Head (1/2-13 x 1-1/4")

$10.00

Create/add to Wishlist

1003548

Screw, Hex Head (5/16-18 x 1")

$10.00

Create/add to Wishlist

1079113

Label, Year of Manufacture

$8.00

Create/add to Wishlist

1028769

Locknut (5/16-18)

$9.00

Create/add to Wishlist

1132026

Bracket, Pivot

$12.00

Create/add to Wishlist

1062419

Bushing, Flanged

$9.00

Create/add to Wishlist

1086322

Screw, Shoulder Hex Socket Head (1/2 x 3/8", 3/8-16)

$12.00

Create/add to Wishlist

1065152

Tie Rod Assembly

$41.00

Create/add to Wishlist

1144639

Washer, Nylon (1/2 x 7/8 x 1/16")

$8.00

Create/add to Wishlist

1132033

Cross Support

$252.00

Create/add to Wishlist

1111931

Spacer (1/2 x 5/8 x 3/8")

$10.00

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Caster stem is threaded. No additional hardware needed.
B	As of 7/2/10, when using Item 28 (1132033) to replace 1078300, Items 1169830 and 1156176 should be ordered also.
C	Item also available as a pair, refer to Kit Part Number 1110421.
D	Bushings added 7/30/12 and used for 9805/9805P Lifts only to provide clearance for the caster to rotate freely.
E	Not Shown
F	1142010 is now available from The Aftermarket Group (TAG) under part number TAG1142010.
G	This item is also a component of Actuator Mounting Hardware Kit (1177625)
H	As of 11/09/21 item 11 part #1070114 Long Leg Cover was replaced w/ item 10 part #1079137 Short Leg Cover.
I	As of 11/09/21 item 10 is assembled to both Front and Rear of Base Leg Assembly.
