EQUIPMENT US Site

1

60126449

Actuator Motor w/ Bushings

1

$924.00

C ,E

Create/add to Wishlist

2

1078276

Battery Pack, Linak

1

$246.00

Create/add to Wishlist

3

1132050

Controller, Linak

1

$242.00

Create/add to Wishlist

4

1129465

Screw, Shoulder Hex Socket Head (3/8 x 2-1/4", 5/16-18)

1

$12.00

Create/add to Wishlist

5

1065214

Washer, Flat (3/8 x 11/16 x 1/16")

1

$10.00

Create/add to Wishlist

6

1129466

Spacer (3/8 x 5/8 x 11/32")

1

$12.00

Create/add to Wishlist

7

1028769

Locknut (5/16-18)

1

$9.00

Create/add to Wishlist

8

1130200

Label, Warning Bolt Mast

1

$2.00

Create/add to Wishlist

9

1070965

NLA - Label, Lift Warning/Operation - USA

1

N/A

Create/add to Wishlist

10

1064267

Locknut (5/16-18)

1

$10.00

Create/add to Wishlist

11

1078980

Screw, Phillips Pan Head (#10-24 x 1/4")

1

3

$10.00

Create/add to Wishlist

12

1064443

Bushing (3/8 x 15/32 x 1-3/32")

1

$12.00

Create/add to Wishlist

13

1078981

Locknut (1/2-13)

1

$10.00

Create/add to Wishlist

14

1031665

Screw, Shoulder Hex Socket Head (3/8 x 1-1/2", 5/16-18)

1

$8.00

Create/add to Wishlist

15

1078979

Screw, Hex Head (1/2-13 x 2-1/4")

1

$10.00

Create/add to Wishlist

16

1026174

Washer (1/2 x 7/8 x 3/64")

1

2

$9.00

Create/add to Wishlist

17

1079133

Cord, Power, USA

1

$20.00

Create/add to Wishlist

18

1065361

Cap, End, Black (1-1/2 x 2-1/2")

1

$8.00

Create/add to Wishlist

19

1132027

NLA - Mast

1

N/A

Create/add to Wishlist

20

1078274

Charger, Electric Only w/o Power Cord

1

$286.00

Create/add to Wishlist

21

1078306

Bracket, Wall Mount Charger

1

$54.00

Create/add to Wishlist

22

1078284

Bracket, Battery - Electric Only

1

$49.00

Create/add to Wishlist

23

1132051

NLA - Pendant, Four Channel w/ Hook

1

N/A

B ,D

Create/add to Wishlist

23

1177605

Pendant, Four Channel w/ Hook

1

$86.00

B

Create/add to Wishlist

24

1161593

Package, Rubber Clip

10

1

$59.00

B

Create/add to Wishlist

10369X000

NLA - Wrench, Allen (3/16")

1

N/A

A

Create/add to Wishlist

1079815

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
14	Charger, Electric Only w/o Power Cord	1	1
21	Bracket, Wall Mount Charger	1	1
21	Bracket, Wall Mount Charger	1	1
14	Charger, Electric Only w/o Power Cord	1	1
6	Battery Pack, Linak	1	1
20	Battery Pack, Linak	1	1
13	Bracket, Wall Mount Charger	1	1
25	Bracket, Wall Mount Charger	1	1
11	Battery Pack, Linak	1	1
20	Charger, Electric Only w/o Power Cord	1	1
2	Battery Pack, Linak	1	1
16	Cord, Power, USA	1	1
11	Battery Pack, Linak	1	1
11	Battery Pack, Linak	1	1
25	Charger, Electric Only w/o Power Cord	1	1
28	Bracket, Wall Mount Charger	1	1
2	Battery Pack, Linak	1	1
26	Bracket, Wall Mount Charger	1	1
24	Charger, Electric Only w/o Power Cord	1	1
13	Bracket, Wall Mount Charger	1	1
25	Bracket, Wall Mount Charger	1	1
28	Cord, Power, USA	1	1
24	Charger, Electric Only w/o Power Cord	1	1
16	Cord, Power, USA	1	1
21	Battery Pack, Linak	1	1
20	Battery Pack, Linak	1	1
27	Charger, Electric Only w/o Power Cord	1	1
	Cord, Power, USA	1	1
17	Cord, Power, USA	1	1
17	Cord, Power, USA	1	1
20	Charger, Electric Only w/o Power Cord	1	1
16	Cord, Power, USA	1	1
29	Cord, Power, USA	1	1
14	Charger, Electric Only w/o Power Cord	1	1
13	Bracket, Wall Mount Charger	1	1
28	Cord, Power, USA	1	1

Kit, Charger - USA Only

1

$595.00

F

Note Code	Definition
A	Not Shown.
B	1161593 should slip over Clip on Handset to provide stable positioning for Handset.
C	As of 3/19/2010, the pull pin changed to a pull grip.
D	No Longer Available. See part #1177605 as a replacement.
E	Part #1078273 Actuator Motor is No Longer Available and replaced with part #60126449 Actuator Motor that now includes press-fitted Bushings.
F	Includes items 2,17,20,21

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

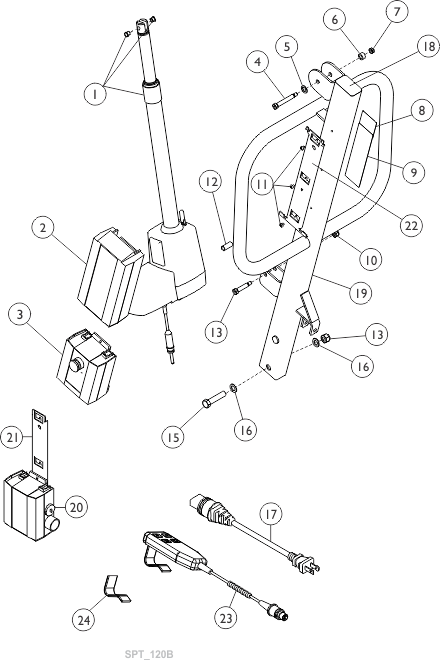

Mast Assembly - RPL600-2
