Electronics - C629M Junction Box, Shroud Cover and Hardware

Print this page

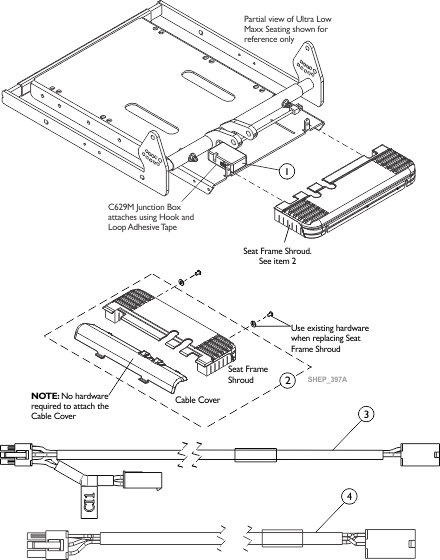

C629M Junction Box, Shroud Cover and Hardware

Click to Enlarge

Assembly Part Notes

Note Code Definition
A C629 Junction Box includes the Hook and Loop Adhesive Strips.
B Use existing hardware when attaching the Seat Frame Shroud.
C Long Extension Cable used with Elevate Option.
D Extension Cable used with Non-Elevate Option.
