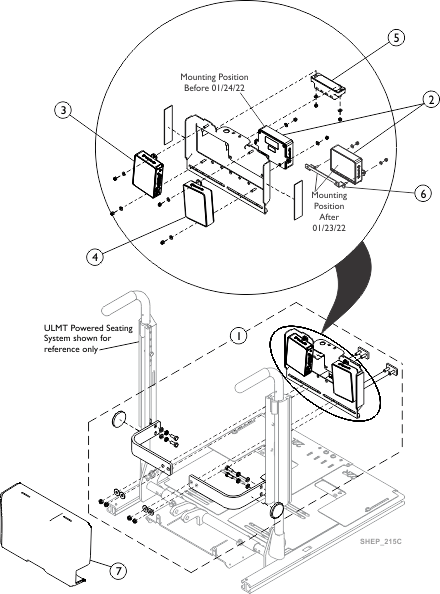

Electronics - Backrest Bracket Mounting Hardware, Tilt or ASBA-2 for (DLX-ACT200/400, DLX-IN500, DLX-OUT500, GLM-CONX4)

Assembly Part Notes

Note Code Definition
A ACT200 orACT400 are attached in the same location.
B Not Shown.
C Includes all hardware shown.
D Item #4 includes LiNX DLX-OUT500 Output Module, 2 ea. Washer (M4 4.3 x 9 x .8), 2 ea. Locknut (M4), 1 ea. LiNX Bus Cable (PWH) 300mm 11-13/16" (GLM-BUS030)
E Before ordering a new DLX-OUT500 Module, contact Invacare Technical Services for assistance regarding NOTE located below.
F Item #3 LiNX DLX-IN500 Input Module does not include the LiNX Bus Cable (PWH) 300mm 11-13/16" (GLM-BUS030).
G Item 6 used after 01/23/22.
