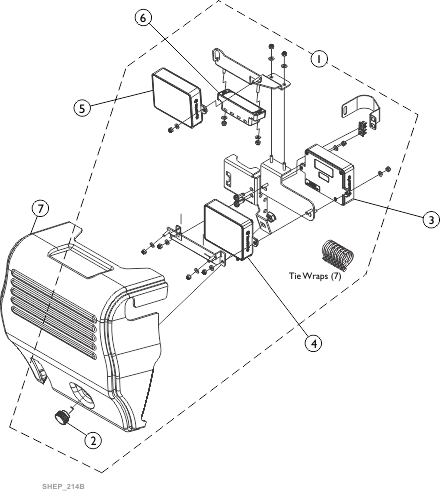

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	60102541	Kit, Backrest Bracket Mounting Hardware, Recline for DLX-IN500, CONX4, DLX ACT400	1	1	$323.00	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	60102721	Kit, Knob, Hand Wheel (M6 x 15)	1	1	$38.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	60102474	Kit, LiNX DLX-IN500 Input Module (INPUT)	1	1	$1,340.00	E ,F	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	60102475	Kit, LiNX 4-Channel Actuator Module (DLX-ACT400)	1	1	$607.00	F	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	60108452	Kit, LiNX DLX-OUT500 Output Module (OUT500)	1	1	$832.00	C ,D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	60102473	Kit, LiNX CONX4 4-way Expansion Block	1	1	$319.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	60102672	Kit, Shroud, Backrest Recline	1	1	$188.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	60102523	Kit, Sip-N-Puff, 16" Fixed (PKG32666) Includes: (3) Air Tube Straws, (2) Saliva Traps, Tubing, Pivot Shaft/Flexible Metal Gooseneck Assembly, and Extruded Figure "8" Clamp to fit 7/8" Wheelchair Frame Tubing. Extruded Back Cane Adapter Clamp.	1	1	$625.00	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Note Code	Definition
A	Includes all hardware shown including item #2 and Tie Wraps (7 ea.).
B	Not Shown
C	Item #5 includes LiNX DLX-OUT500 Output Module, 2 ea. Washer (M4 4.3 x 9 x .8), 2 ea. Locknut (M4), 1 ea. LiNX Bus Cable (PWH) 300mm 11-13/16" (GLM-BUS030)
D	Before ordering a new DLX-OUT500 Module, contact Invacare Technical Services for assistance regarding NOTE located below.
E	Item #4 LiNX DLX-IN500 Input Module does not include the LiNX Bus Cable (PWH) 300mm 11-13/16" (GLM-BUS030).
F	Item #3 and #4 switched mounting locations after 01/23/22.
