1

60102726

Kit, LNX Power Legrest w/ Independant Footplates - Small

1

$2,112.00

D

Create/add to Wishlist

1

60103356

Kit, LNX Power Legrest w/ Independant Footplates - Medium

1

$2,144.00

D

Create/add to Wishlist

1

60102727

Kit, LNX Power Legrest w/ Independant Footplates - Large

1

$2,154.00

D

Create/add to Wishlist

2

60123531

Kit, LNX Actuator w/ Elev./Extending Assembly

1

$1,687.00

Create/add to Wishlist

3

60102709

Kit, Flat Calf Pad Assembly, LNX

1

$701.00

Create/add to Wishlist

4a

60102545

Part/Kit Description	Qty/Pkg	Qty/Asbly
Actuator Cable, LNX, (MPELR - Left)	1	1
Sheet, Insert Parts Service	1	1
Actuator Cable, LNX, (MPELR - Left)	1	1
Sheet, Insert Parts Service	1	1
Actuator Cable, LNX, (MPELR - Left)	1	1
Sheet, Insert Parts Service	1	1
Actuator Cable, LNX, (MPELR - Left)	1	1
Sheet, Insert Parts Service	1	1
Actuator Cable, LNX, (MPELR - Left)	1	1
Sheet, Insert Parts Service	1	1
Actuator Cable, LNX, (MPELR - Left)	1	1
Sheet, Insert Parts Service	1	1

Kit, Actuator Cable, LNX, (MPELR - Left)

1

$189.00

A

Create/add to Wishlist

4b

60132733

Part/Kit Description	Qty/Pkg	Qty/Asbly
Harness Wire Extension, LNX Center Mount, 914mm 35-63/64"	1	1
Sheet, Insert Parts Service	1	1
Harness Wire Extension, LNX Center Mount, 914mm 35-63/64"	1	1
Sheet, Insert Parts Service	1	1

Kit, Harness Wire Extension, LNX Center Mount, 914mm 35-63/64"

1

$42.00

E

Create/add to Wishlist

5

60102713

Kit, Footboard Assembly, Center Mount, Fixed Heel Cup (12" W x 9" D)

1

$430.00

B

Create/add to Wishlist

6

60105162

Center Mount Flip-Up Foot Platform Assembly, LNX (12" W x 8-1/2" D)

1

$247.00

B

Create/add to Wishlist

6

60105161

Center Mount Flip-Up Foot Platform Assembly, LNX (12" W x 10-3/4" D)

1

$247.00

B

Create/add to Wishlist

6

60105163

Center Mount Flip-Up Foot Platform Assembly, LNX (17" W x 13" D)

1

$247.00

B

Create/add to Wishlist

7

60105164

Center Mount Foot Platform Mount Assembly, Flex Heel Cup

1

$330.00

C

Create/add to Wishlist

8

60105165

Independent Footplate Mounting Hardware, Center Mount (Pair)

1

$330.00

Create/add to Wishlist

9

1163374

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
	Pad, Footplate, Small - Right	1	1
	Pad, Footplate, Small - Left	1	1
29	Pad, Footplate, Small - Right	1	1
29	Pad, Footplate, Small - Left	1	1
29	Pad, Footplate, Small - Left	1	1
29	Pad, Footplate, Small - Right	1	1
29	Pad, Footplate, Small - Left	1	1
29	Pad, Footplate, Small - Right	1	1
29	Pad, Footplate, Small - Left	1	1
29	Pad, Footplate, Small - Right	1	1
29	Pad, Footplate, Small - Left	1	1
29	Pad, Footplate, Small - Right	1	1
29	Pad, Footplate, Small - Left	1	1
17	Pad, Footplate, Small - Right	1	1
17	Pad, Footplate, Small - Left	1	1
29	Pad, Footplate, Small - Right	1	1
29	Pad, Footplate, Small - Left	1	1
29	Pad, Footplate, Small - Right	1	1
29	Pad, Footplate, Small - Left	1	1
17	Pad, Footplate, Small - Right	1	1
17	Pad, Footplate, Small - Left	1	1
29	Pad, Footplate, Small - Right	1	1
29	Pad, Footplate, Small - Left	1	1
29	Pad, Footplate, Small - Left	1	1
29	Pad, Footplate, Small - Right	1	1
29	Pad, Footplate, Small - Left	1	1
29	Pad, Footplate, Small - Right	1	1
29	Pad, Footplate, Small - Left	1	1
29	Pad, Footplate, Small - Right	1	1
29	Pad, Footplate, Small - Left	1	1
29	Pad, Footplate, Small - Right	1	1
29	Pad, Footplate, Small - Right	1	1
	Pad, Footplate, Small - Right	1	1
	Pad, Footplate, Small - Left	1	1
29	Pad, Footplate, Small - Right	1	1
29	Pad, Footplate, Small - Left	1	1
29	Pad, Footplate, Small - Right	1	1
29	Pad, Footplate, Small - Left	1	1
29	Pad, Footplate, Small - Right	1	1
29	Pad, Footplate, Small - Left	1	1
29	Pad, Footplate, Small - Right	1	1
29	Pad, Footplate, Small - Left	1	1
29	Pad, Footplate, Small - Right	1	1
29	Pad, Footplate, Small - Left	1	1

Kit, Footrest Pad - Small (Pair)

1

$51.00

Create/add to Wishlist

9

1163375

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
	Pad, Footplate, Medium - Right	1	1
	Pad, Footplate, Medium - Left	1	1
29	Pad, Footplate, Medium - Right	1	1
29	Pad, Footplate, Medium - Left	1	1
29	Pad, Footplate, Medium - Right	1	1
29	Pad, Footplate, Medium - Left	1	1
29	Pad, Footplate, Medium - Right	1	1
29	Pad, Footplate, Medium - Right	1	1
29	Pad, Footplate, Medium - Left	1	1
29	Pad, Footplate, Medium - Right	1	1
29	Pad, Footplate, Medium - Left	1	1
29	Pad, Footplate, Medium - Left	1	1
29	Pad, Footplate, Medium - Right	1	1
29	Pad, Footplate, Medium - Left	1	1
29	Pad, Footplate, Medium - Right	1	1
29	Pad, Footplate, Medium - Left	1	1
17	Pad, Footplate, Medium - Right	1	1
17	Pad, Footplate, Medium - Left	1	1
17	Pad, Footplate, Medium - Right	1	1
17	Pad, Footplate, Medium - Left	1	1
29	Pad, Footplate, Medium - Right	1	1
29	Pad, Footplate, Medium - Left	1	1
29	Pad, Footplate, Medium - Right	1	1
29	Pad, Footplate, Medium - Left	1	1
29	Pad, Footplate, Medium - Right	1	1
29	Pad, Footplate, Medium - Left	1	1
29	Pad, Footplate, Medium - Right	1	1
29	Pad, Footplate, Medium - Left	1	1
29	Pad, Footplate, Medium - Right	1	1
29	Pad, Footplate, Medium - Left	1	1
29	Pad, Footplate, Medium - Right	1	1
29	Pad, Footplate, Medium - Left	1	1
29	Pad, Footplate, Medium - Left	1	1
	Pad, Footplate, Medium - Right	1	1
	Pad, Footplate, Medium - Left	1	1
29	Pad, Footplate, Medium - Right	1	1
29	Pad, Footplate, Medium - Left	1	1
29	Pad, Footplate, Medium - Right	1	1
29	Pad, Footplate, Medium - Right	1	1
29	Pad, Footplate, Medium - Left	1	1
29	Pad, Footplate, Medium - Right	1	1
29	Pad, Footplate, Medium - Left	1	1
29	Pad, Footplate, Medium - Right	1	1
29	Pad, Footplate, Medium - Left	1	1

Kit, Footrest Pad - Medium (Pair)

1

$67.00

Create/add to Wishlist

9

1163376

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
	Pad, Footplate, Large - Right	1	1
	Pad, Footplate, Large - Left	1	1
29	Pad, Footplate, Large - Right	1	1
29	Pad, Footplate, Large - Left	1	1
29	Pad, Footplate, Large - Right	1	1
29	Pad, Footplate, Large - Left	1	1
29	Pad, Footplate, Large - Right	1	1
29	Pad, Footplate, Large - Left	1	1
29	Pad, Footplate, Large - Right	1	1
29	Pad, Footplate, Large - Right	1	1
29	Pad, Footplate, Large - Left	1	1
29	Pad, Footplate, Large - Left	1	1
29	Pad, Footplate, Large - Right	1	1
29	Pad, Footplate, Large - Left	1	1
29	Pad, Footplate, Large - Right	1	1
29	Pad, Footplate, Large - Right	1	1
29	Pad, Footplate, Large - Left	1	1
17	Pad, Footplate, Large - Right	1	1
17	Pad, Footplate, Large - Left	1	1
17	Pad, Footplate, Large - Right	1	1
17	Pad, Footplate, Large - Left	1	1
29	Pad, Footplate, Large - Right	1	1
29	Pad, Footplate, Large - Left	1	1
29	Pad, Footplate, Large - Right	1	1
29	Pad, Footplate, Large - Left	1	1
29	Pad, Footplate, Large - Right	1	1
29	Pad, Footplate, Large - Left	1	1
29	Pad, Footplate, Large - Right	1	1
29	Pad, Footplate, Large - Left	1	1
29	Pad, Footplate, Large - Left	1	1
29	Pad, Footplate, Large - Right	1	1
29	Pad, Footplate, Large - Left	1	1
	Pad, Footplate, Large - Right	1	1
	Pad, Footplate, Large - Left	1	1
29	Pad, Footplate, Large - Right	1	1
29	Pad, Footplate, Large - Right	1	1
29	Pad, Footplate, Large - Left	1	1
29	Pad, Footplate, Large - Left	1	1
29	Pad, Footplate, Large - Left	1	1
29	Pad, Footplate, Large - Right	1	1
29	Pad, Footplate, Large - Right	1	1
29	Pad, Footplate, Large - Left	1	1
29	Pad, Footplate, Large - Right	1	1
29	Pad, Footplate, Large - Left	1	1

Kit, Footrest Pad - Large (Pair)

1

$79.00

Create/add to Wishlist

See Chart

Added to Cart

Footplate Side

Small 5-1/4" W x 7-1/2" L

Medium 5-1/2" W x 9-1/2" L

Large 5-7/8" W x 11-1/2" L

Right

Note-A

1170683

Part/Kit Description	Qty/Pkg	Qty/Asbly
Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	1
Footplate, Black, Small - Right	1	1
Pad, Footplate, Small - Right	1	1
Spacer, Nylon (1/2 x 3/4 x 1/4")	1	4
Instruction Sheet, Adjustable Width Footplate	1	1
NLA - Washer, Wave (17/32 x 3/4 x 1/64")	1	1
Washer (1/2 x 7/8 x 3/64")	1	1
Washer, Nylon (5/16 x 11/16 x 1/16")	1	1
Screw, Socket Button Head (1/4-20 x 1-1/2")	1	1

MSRP: $115.00

Note-A

1170685

Part/Kit Description	Qty/Pkg	Qty/Asbly
Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	1
Spacer, Nylon (1/2 x 3/4 x 1/4")	1	4
Instruction Sheet, Adjustable Width Footplate	1	1
NLA - Washer, Wave (17/32 x 3/4 x 1/64")	1	1
Footplate, Black, Medium - Right	1	1
Pad, Footplate, Medium - Right	1	1
Washer (1/2 x 7/8 x 3/64")	1	1
Washer, Nylon (5/16 x 11/16 x 1/16")	1	1
Screw, Socket Button Head (1/4-20 x 1-1/2")	1	1

MSRP: $115.00

Note-A

1170687

Part/Kit Description	Qty/Pkg	Qty/Asbly
Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	1
Spacer, Nylon (1/2 x 3/4 x 1/4")	1	4
Instruction Sheet, Adjustable Width Footplate	1	1
NLA - Washer, Wave (17/32 x 3/4 x 1/64")	1	1
Footplate, Black, Large - Right	1	1
Pad, Footplate, Large - Right	1	1
Washer (1/2 x 7/8 x 3/64")	1	1
Washer, Nylon (5/16 x 11/16 x 1/16")	1	1
Screw, Socket Button Head (1/4-20 x 1-1/2")	1	1

MSRP: $115.00

Left

Note-A

1170684

Part/Kit Description	Qty/Pkg	Qty/Asbly
Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	1
Spacer, Nylon (1/2 x 3/4 x 1/4")	1	4
Instruction Sheet, Adjustable Width Footplate	1	1
NLA - Washer, Wave (17/32 x 3/4 x 1/64")	1	1
Footplate, Black, Small - Left	1	1
Pad, Footplate, Small - Left	1	1
Washer (1/2 x 7/8 x 3/64")	1	1
Washer, Nylon (5/16 x 11/16 x 1/16")	1	1
Screw, Socket Button Head (1/4-20 x 1-1/2")	1	1

MSRP: $115.00

Note-A

1170686

Part/Kit Description	Qty/Pkg	Qty/Asbly
Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	1
Spacer, Nylon (1/2 x 3/4 x 1/4")	1	4
Instruction Sheet, Adjustable Width Footplate	1	1
NLA - Washer, Wave (17/32 x 3/4 x 1/64")	1	1
Footplate, Black, Medium - Left	1	1
Pad, Footplate, Medium - Left	1	1
Washer (1/2 x 7/8 x 3/64")	1	1
Washer, Nylon (5/16 x 11/16 x 1/16")	1	1
Screw, Socket Button Head (1/4-20 x 1-1/2")	1	1

MSRP: $115.00

Note-A

1170688

Part/Kit Description	Qty/Pkg	Qty/Asbly
Screw, Socket, Button Head w/ Patch (5/16-18 x 3/4")	1	1
Spacer, Nylon (1/2 x 3/4 x 1/4")	1	4
Instruction Sheet, Adjustable Width Footplate	1	1
NLA - Washer, Wave (17/32 x 3/4 x 1/64")	1	1
Footplate, Black, Large - Left	1	1
Pad, Footplate, Large - Left	1	1
Washer (1/2 x 7/8 x 3/64")	1	1
Washer, Nylon (5/16 x 11/16 x 1/16")	1	1
Screw, Socket Button Head (1/4-20 x 1-1/2")	1	1

MSRP: $115.00

Create/add to Wishlist

See chart-note

Chart Part Notes

Chart Code	Definition
A	Includes the Footplate, attaching hardware and the Adjustable Width Footplate Instruction Sheet (Not Shown).

#10 Footplate Kits

N/A

Note Code	Definition
A	The Left Side Actuator Cable is used for both LNX and MPELR Power Legrest. Used before 01/11/22
B	Item's 5 and 6 only include the lower Footboard Assembly portion of the Power LNX Legrest as shown.
C	Item 6 and 7 assemble together.
D	Kit includes the Actuator Motor.
E	Used after 01/23/22

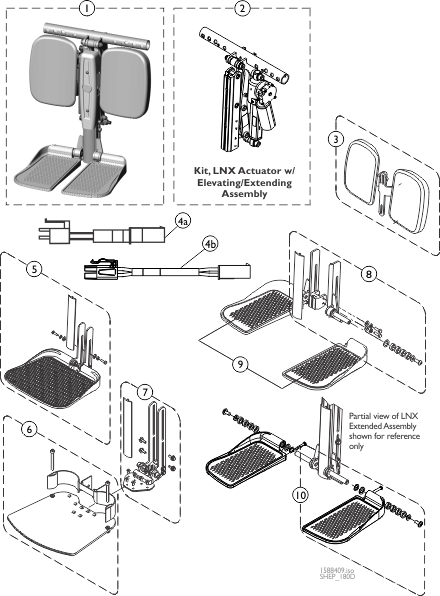

Front Riggings - Center Mount Legrest Power (LNX)

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Chart Part Notes

Assembly Part Notes

Catalog Literature

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

Front Riggings - Center Mount Legrest Power (LNX)

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Chart Part Notes

Assembly Part Notes

Catalog Literature
