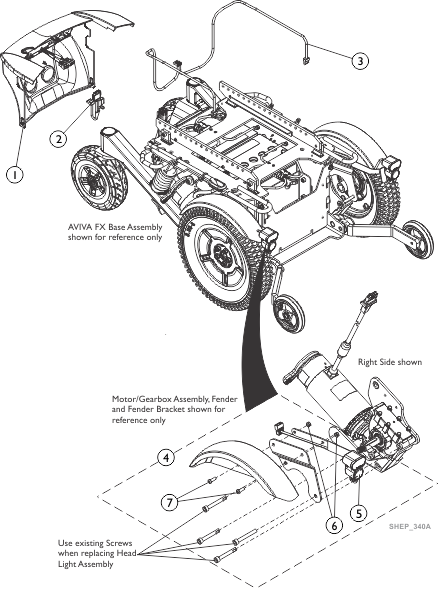

Light System
| Item | Part/Kit | Part/Kit Description | Qty/Pkg | Qty/Asbly | MSRP | View Parts Notes | |
|---|---|---|---|---|---|---|---|
| 1 |
60124349
|
Kit, Shroud, Rear Lower w/ Lights | 1 | 1 | A |
Create/add to WishlistCreate/add to Wishlist |
|
| 2 | 60124848 | Kit, Cable, Power Light | 1 | 1 |
$66.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 3 | 60124382 | Kit, Cable, Front Lights | 1 | 1 |
$56.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 4 |
60124884
|
Kit, Head Light Assembly w/ Hardware - Right | 1 | 1 |
$210.00 |
B ,C |
Create/add to WishlistCreate/add to Wishlist |
| 4 |
60124885
|
Kit, Head Light Assembly w/ Hardware - Left | 1 | 1 |
$210.00 |
B ,C |
Create/add to WishlistCreate/add to Wishlist |
Assembly Part Notes
| Note Code | Definition |
|---|---|
| A | For exploded detail view of the Rear Lower Shroud w/ Lights see page titled "Shrouds, Top Rear and Lower Rear" |
| B | Includes items 5-7 |
| C | NOTE: The top two Motor Mounting Screws that attach the Fender Bracket and Light Assembly are longer than the two bottom Motor Mounting Screws. |
