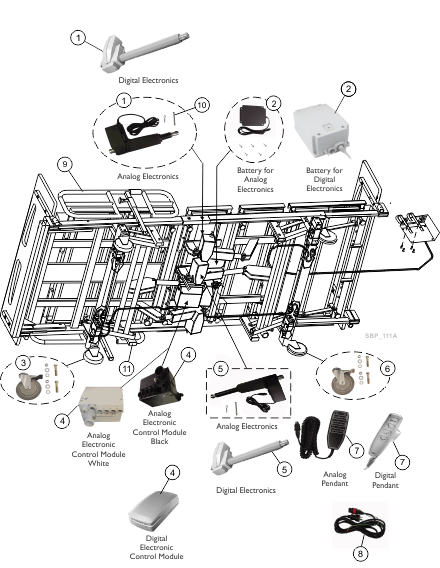

27. Full Electric (BAR750)
| Item | Part/Kit | Part/Kit Description | Qty/Pkg | Qty/Asbly | MSRP | View Parts Notes | |
|---|---|---|---|---|---|---|---|
| 1 | 1147492 | Actuator Motor, Back Rest/Leg Lift, Analog | 1 | 2 |
$717.00 |
H |
Create/add to WishlistCreate/add to Wishlist |
| 1 | 60129095 | Actuator Motor, Back Rest/Leg Lift, Digital | 1 | 2 |
$965.00 |
J |
Create/add to WishlistCreate/add to Wishlist |
| 2 | 1147496 | NLA - Battery (9V) with Hardware | 1 | 1 | N/A | A ,I |
Create/add to WishlistCreate/add to Wishlist |
| 2 | 60129096 | Battery, KB19 Lead-Acid (For Digital) | 1 | 1 | J |
Create/add to WishlistCreate/add to Wishlist |
|
| 3 | 1147497 | Steering Caster with Hardware | 1 | 1 |
$559.00 |
B |
Create/add to WishlistCreate/add to Wishlist |
| 4 | 1147490 | Module, Electronic Control, White, Analog | 1 | 1 |
$2,084.00 |
K |
Create/add to WishlistCreate/add to Wishlist |
| 4 | 60129093 | Module, Electronic Control, White, Digital | 1 | 1 |
$1,489.00 |
J |
Create/add to WishlistCreate/add to Wishlist |
| 5 | 1147491 | Actuator Motor, High/Low, Analog | 1 | 1 |
$766.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 5 | 60129094 | Actuator Motor, High/Low, Digital | 1 | 1 |
$722.00 |
J |
Create/add to WishlistCreate/add to Wishlist |
| 6 | 1147498 | Locking Caster with Hardware | 2 | 1 |
$559.00 |
C |
Create/add to WishlistCreate/add to Wishlist |
| 7 | 1147488 | Pendant Control, Three Function, Analog | 1 | 1 |
$549.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 7 | 60129092 | Pendant Control, Three Function, Digital | 1 | 1 |
$517.00 |
J |
Create/add to WishlistCreate/add to Wishlist |
| 8 | 1147489 | Cord, Power | 1 | 1 |
$187.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 9 | 1147493 | Rails, Side | 2 | 1 |
$724.00 |
D |
Create/add to WishlistCreate/add to Wishlist |
| 10 | 1147495 | Package, Clevis Pin w/ Rue Clip | 10 | 1 |
$52.00 |
E |
Create/add to WishlistCreate/add to Wishlist |
| 11 | 1147494 | NLA - Plug Button, Black | 10 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 12 | 1165872 | NLA - Package, Release Knobs, Bed Rails/Extensions | 5 | 1 | N/A | F |
Create/add to WishlistCreate/add to Wishlist |
| 1165871 | NLA - Kit, Footboard Extensions - Right/Left | 1 | 1 | N/A | G |
Create/add to WishlistCreate/add to Wishlist |
Assembly Part Notes
| Note Code | Definition |
|---|---|
| A | Includes 1) Battery (9V) and 5) Screws. |
| B | Includes 2) Steering Casters, 2) Locknuts, 2) Flat Washers, 2) Lock Washers and 2) Screws. |
| C | Includes 2) Locking Casters, 2) Locknuts, 2) Flat Washers, 2) Lock Washers and 2) Screws. |
| D | Includes 2) Side Rails. |
| E | Includes 5) Clevis Pins and 5) Rue Clips. |
| F | These are release knobs for the footboard and headboard extensions and the side bed rail. Sold in packages of five. |
| G | Not shown in illustration. |
| H | One Actuator is for the Head End (Back Rest) and the other for the Foot End (Leg Lift). |
| I | Battery is No LongerAvailable from Invacare but can be purchased from Gendron Inc. 1-800-537-2521. |
| J | Used for Digital components that replaced Analog starting with serial number 111016111. |
| K | Part number 1147490 Electronic Analog Control Module was changed from Black color to white. |
