60103272

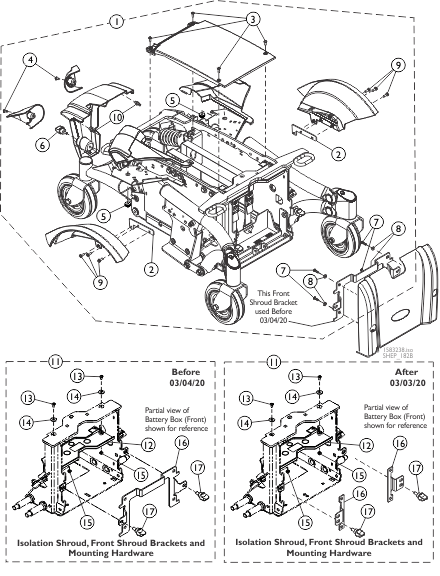

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	Spacer, Shroud, Black	1	2
3	Screw, Phillips Pan Head (#10-32 x 1/2")	1	4
4	Screw, Phillips Pan Head Tap (#10-32 x 1/2")	1	2
5	Nut, Knurled, Plastic (M5)	1	2
6	Screw, Knob (10-32 x 1/2")	1	1
7	Screw, Phillips Pan Head (#8-16 x 5/8")	1	4
8	Washer, Steel (3/16 x 7/16 x 1/16")	1	4
9	Screw, Slotted Hex Washer Head (#10-32 x 5/8")	1	6
10	Stud, Snaploc Plastic	1	2
2	Spacer, Shroud, Black	1	2
3	Screw, Phillips Pan Head (#10-32 x 1/2")	1	4
4	Screw, Phillips Pan Head Tap (#10-32 x 1/2")	1	2
5	Nut, Knurled, Plastic (M5)	1	2
6	Screw, Knob (10-32 x 1/2")	1	1
7	Screw, Phillips Pan Head (#8-16 x 5/8")	1	4
8	Washer, Steel (3/16 x 7/16 x 1/16")	1	4
9	Screw, Slotted Hex Washer Head (#10-32 x 5/8")	1	6
10	Stud, Snaploc Plastic	1	2

Kit, Shroud Hardware

$61.00

60102806

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
12	Shroud, Isolation, 22NF Narrow Battery Box	1	1
13	Screw, Phillips Pan Head (#10-32 x 3/8")	1	2
14	Washer (1/4 x 23/32 x 1/16")	1	2
15	Locknut (#10-32)	1	2
16	Bracket, Shroud, Black, 22NF Narrow Battery Box	1	1
17	Knob, Screw (5/16-18 x 5/8")	1	2
12	Shroud, Isolation, 22NF Narrow Battery Box	1	1
13	Screw, Phillips Pan Head (#10-32 x 3/8")	1	2
14	Washer (1/4 x 23/32 x 1/16")	1	2
15	Locknut (#10-32)	1	2
16	Bracket, Shroud, Black, 22NF Narrow Battery Box	1	1
17	Knob, Screw (5/16-18 x 5/8")	1	2

Kit, Isolation Shroud and Front Shroud Bracket w/ Mounting Hardware, 22NF Narrow Battery Box

$174.00

60102807

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
15	Locknut (#10-32)	1	2
16	Bracket, Shroud, Black, GP24 Wide Battery Box	1	1
17	Knob, Screw (5/16-18 x 5/8")	1	2
12	Shroud, Isolation, GP24/3-22NF Batteries	1	1
13	Screw, Phillips Pan Head (#10-32 x 3/8")	1	2
14	Washer (1/4 x 23/32 x 1/16")	1	2
12	Shroud, Isolation, GP24/3-22NF Batteries	1	1
13	Screw, Phillips Pan Head (#10-32 x 3/8")	1	2
14	Washer (1/4 x 23/32 x 1/16")	1	2
15	Locknut (#10-32)	1	2
16	Bracket, Shroud, Black, GP24 Wide Battery Box	1	1
17	Knob, Screw (5/16-18 x 5/8")	1	2

Kit, Isolation Shroud and Front Shroud Bracket w/ Mounting Hardware, GP24 Wide Battery Box

$176.00

Note Code	Definition
A	Includes items 2-10.
B	Used Before 03/04/20. Includes items 12-17. NOTE: Item #11 dated After 03/03/20 is Non-Serviceable in the Field.
