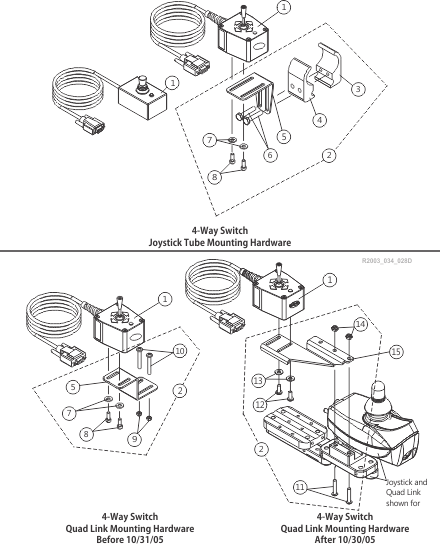

Electronics - 4-Way Switch & Mounting Hardware

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1080116

NLA - Switch, 4-Way (FWT)

N/A

Create/add to Wishlist

60105577

Kit, Switch, 4-Way (FWT)

$423.00

Create/add to Wishlist

1077519

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
7	Washer (#10 Flat)	1	2
3	NLA - Half Clamp, Threaded Holes	1	1
4	Half Clamp, Non-Threaded Holes	1	1
5	NLA - Bracket, Joystick Mounting, Black	1	1
6	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	2
7	Washer (#10 Flat)	1	2
8	Screw, Phillips Pan Head (#10-32 x 1/2")	1	2
3	NLA - Half Clamp, Threaded Holes	1	1
4	Half Clamp, Non-Threaded Holes	1	1
5	NLA - Bracket, Joystick Mounting, Black	1	1
6	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	2
7	Washer (#10 Flat)	1	2
8	Screw, Phillips Pan Head (#10-32 x 1/2")	1	2
11	NLA - Half Clamp, Threaded Holes	1	1
12	Half Clamp, Non-Threaded Holes	1	1
13	NLA - Bracket, Joystick Mounting, Black	1	1
14	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	2
15	Washer (#10 Flat)	1	2
16	Screw, Phillips Pan Head (#10-32 x 1/2")	1	2
7	NLA - Half Clamp, Threaded Holes	1	1
8	Half Clamp, Non-Threaded Holes	1	1
9	NLA - Bracket, Joystick Mounting, Black	1	1
10	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	2
11	Washer (#10 Flat)	1	2
12	Screw, Phillips Pan Head (#10-32 x 1/2")	1	2
3	NLA - Half Clamp, Threaded Holes	1	1
4	Half Clamp, Non-Threaded Holes	1	1
5	NLA - Bracket, Joystick Mounting, Black	1	1
6	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	2
7	Washer (#10 Flat)	1	2
8	Screw, Phillips Pan Head (#10-32 x 1/2")	1	2
3	NLA - Half Clamp, Threaded Holes	1	1
4	Half Clamp, Non-Threaded Holes	1	1
5	NLA - Bracket, Joystick Mounting, Black	1	1
6	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	2
7	Washer (#10 Flat)	1	2
8	Screw, Phillips Pan Head (#10-32 x 1/2")	1	2
4	Half Clamp, Non-Threaded Holes	1	1
3	NLA - Half Clamp, Threaded Holes	1	1
8	Screw, Phillips Pan Head (#10-32 x 1/2")	1	2
20	NLA - Bracket, Joystick Mounting, Black	1	1
21	Washer (#10 Flat)	1	2
22	Screw, Phillips Pan Head (#10-32 x 1/2")	1	2
23	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	2
24	Half Clamp, Non-Threaded Holes	1	1
25	NLA - Half Clamp, Threaded Holes	1	1
8	NLA - Half Clamp, Threaded Holes	1	1
9	Half Clamp, Non-Threaded Holes	1	1
10	NLA - Bracket, Joystick Mounting, Black	1	1
11	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	2
12	Washer (#10 Flat)	1	2
13	Screw, Phillips Pan Head (#10-32 x 1/2")	1	2
7	NLA - Bracket, Joystick Mounting, Black	1	1
8	Washer (#10 Flat)	1	2
9	Screw, Phillips Pan Head (#10-32 x 1/2")	1	2
10	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	2
11	Half Clamp, Non-Threaded Holes	1	1
12	NLA - Half Clamp, Threaded Holes	1	1
6	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	2
16	NLA - Half Clamp, Threaded Holes	1	1
17	Half Clamp, Non-Threaded Holes	1	1
18	NLA - Bracket, Joystick Mounting, Black	1	1
19	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	2
20	Washer (#10 Flat)	1	2
21	Screw, Phillips Pan Head (#10-32 x 1/2")	1	2
5	NLA - Bracket, Joystick Mounting, Black	1	1
8	Screw, Phillips Pan Head (#10-32 x 1/2")	1	2
7	Washer (#10 Flat)	1	2
7	NLA - Half Clamp, Threaded Holes	1	1
8	Half Clamp, Non-Threaded Holes	1	1
9	NLA - Bracket, Joystick Mounting, Black	1	1
10	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	2
11	Washer (#10 Flat)	1	2
12	Screw, Phillips Pan Head (#10-32 x 1/2")	1	2
5	NLA - Half Clamp, Threaded Holes	1	1
6	Half Clamp, Non-Threaded Holes	1	1
7	NLA - Bracket, Joystick Mounting, Black	1	1
8	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	2
9	Washer (#10 Flat)	1	2
10	Screw, Phillips Pan Head (#10-32 x 1/2")	1	2
3	NLA - Half Clamp, Threaded Holes	1	1
4	Half Clamp, Non-Threaded Holes	1	1
5	NLA - Bracket, Joystick Mounting, Black	1	1
6	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	2
7	Washer (#10 Flat)	1	2
8	Screw, Phillips Pan Head (#10-32 x 1/2")	1	2
3	NLA - Half Clamp, Threaded Holes	1	1
4	Half Clamp, Non-Threaded Holes	1	1
5	NLA - Bracket, Joystick Mounting, Black	1	1
6	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	2

Kit, 4-Way Switch Joystick Tube Mounting Hardware

$56.00

Create/add to Wishlist

1077520

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
5	NLA - Bracket, Quad Link Mounting, Black	1	1
7	Washer (#10 Flat)	1	2
8	Screw, Phillips Pan Head (#10-32 x 1/2")	1	2
9	Locknut (#10-32)	1	2
10	Screw, Phillips Pan Head (#10-32 x 1-3/8")	1	2
13	NLA - Bracket, Quad Link Mounting, Black	1	1
15	Washer (#10 Flat)	1	2
16	Screw, Phillips Pan Head (#10-32 x 1/2")	1	2
17	Locknut (#10-32)	1	2
18	Screw, Phillips Pan Head (#10-32 x 1-3/8")	1	2
9	NLA - Bracket, Quad Link Mounting, Black	1	1
11	Washer (#10 Flat)	1	2
12	Screw, Phillips Pan Head (#10-32 x 1/2")	1	2
13	Locknut (#10-32)	1	2
14	Screw, Phillips Pan Head (#10-32 x 1-3/8")	1	2
5	NLA - Bracket, Quad Link Mounting, Black	1	1
7	Washer (#10 Flat)	1	2
8	Screw, Phillips Pan Head (#10-32 x 1/2")	1	2
9	Locknut (#10-32)	1	2
10	Screw, Phillips Pan Head (#10-32 x 1-3/8")	1	2
5	NLA - Bracket, Quad Link Mounting, Black	1	1
7	Washer (#10 Flat)	1	2
8	Screw, Phillips Pan Head (#10-32 x 1/2")	1	2
9	Locknut (#10-32)	1	2
10	Screw, Phillips Pan Head (#10-32 x 1-3/8")	1	2
7	Washer (#10 Flat)	1	2
8	Screw, Phillips Pan Head (#10-32 x 1/2")	1	2
10	Screw, Phillips Pan Head (#10-32 x 1-3/8")	1	2
8	Screw, Phillips Pan Head (#10-32 x 1/2")	1	2
5	NLA - Bracket, Quad Link Mounting, Black	1	1
9	Washer (#10 Flat)	1	2
13	Locknut (#10-32)	1	2
14	Screw, Phillips Pan Head (#10-32 x 1-3/8")	1	2
21	Washer (#10 Flat)	1	2
22	Screw, Phillips Pan Head (#10-32 x 1/2")	1	2
20	NLA - Bracket, Quad Link Mounting, Black	1	1
26	Locknut (#10-32)	1	2
27	Screw, Phillips Pan Head (#10-32 x 1-3/8")	1	2
7	Screw, Phillips Pan Head (#10-32 x 1/2")	1	2
8	NLA - Bracket, Quad Link Mounting, Black	1	1
18	NLA - Bracket, Quad Link Mounting, Black	1	1
20	Washer (#10 Flat)	1	2
21	Screw, Phillips Pan Head (#10-32 x 1/2")	1	2
22	Locknut (#10-32)	1	2
23	Screw, Phillips Pan Head (#10-32 x 1-3/8")	1	2
9	Locknut (#10-32)	1	2
10	Screw, Phillips Pan Head (#10-32 x 1-3/8")	1	2
9	Locknut (#10-32)	1	2
5	NLA - Bracket, Quad Link Mounting, Black	1	1
9	NLA - Bracket, Quad Link Mounting, Black	1	1
11	Washer (#10 Flat)	1	2
12	Screw, Phillips Pan Head (#10-32 x 1/2")	1	2
13	Locknut (#10-32)	1	2
14	Screw, Phillips Pan Head (#10-32 x 1-3/8")	1	2
5	NLA - Bracket, Quad Link Mounting, Black	1	1
7	Washer (#10 Flat)	1	2
8	Screw, Phillips Pan Head (#10-32 x 1/2")	1	2
9	Locknut (#10-32)	1	2
10	Screw, Phillips Pan Head (#10-32 x 1-3/8")	1	2
7	Washer (#10 Flat)	1	2

NLA - Kit, 4-Way Switch Quad Link Mounting Hardware

N/A

B ,E

Create/add to Wishlist

1139418

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
13	NLA - Washer, Nylon (#10)	1	2
11	Screw, Phillips Pan Head w/Patch (#10-32 x 7/8")	1	2
12	Screw, Phillips Pan Head (#10-32 x 1/2")	1	2
13	NLA - Washer, Nylon (#10)	1	2
14	Locknut (#10-32)	1	2
19	Screw, Phillips Pan Head w/Patch (#10-32 x 7/8")	1	2
20	Screw, Phillips Pan Head (#10-32 x 1/2")	1	2
21	NLA - Washer, Nylon (#10)	1	2
22	Locknut (#10-32)	1	2
17	Screw, Phillips Pan Head w/Patch (#10-32 x 7/8")	1	2
18	Screw, Phillips Pan Head (#10-32 x 1/2")	1	2
19	NLA - Washer, Nylon (#10)	1	2
20	Locknut (#10-32)	1	2
11	Screw, Phillips Pan Head w/Patch (#10-32 x 7/8")	1	2
12	Screw, Phillips Pan Head (#10-32 x 1/2")	1	2
13	NLA - Washer, Nylon (#10)	1	2
14	Locknut (#10-32)	1	2
11	Screw, Phillips Pan Head w/Patch (#10-32 x 7/8")	1	2
12	Screw, Phillips Pan Head (#10-32 x 1/2")	1	2
13	NLA - Washer, Nylon (#10)	1	2
14	Locknut (#10-32)	1	2
13	Locknut (#10-32)	1	2
14	Screw, Phillips Pan Head w/Patch (#10-32 x 7/8")	1	2
15	Screw, Phillips Pan Head (#10-32 x 1/2")	1	2
16	NLA - Washer, Nylon (#10)	1	2
14	Screw, Phillips Pan Head w/Patch (#10-32 x 7/8")	1	2
15	Screw, Phillips Pan Head (#10-32 x 1/2")	1	2
16	NLA - Washer, Nylon (#10)	1	2
17	Locknut (#10-32)	1	2
22	Screw, Phillips Pan Head (#10-32 x 1/2")	1	2
26	Locknut (#10-32)	1	2
27	Screw, Phillips Pan Head w/Patch (#10-32 x 7/8")	1	2
28	NLA - Washer, Nylon (#10)	1	2
12	Screw, Phillips Pan Head (#10-32 x 1/2")	1	2
23	Screw, Phillips Pan Head w/Patch (#10-32 x 7/8")	1	2
24	Screw, Phillips Pan Head (#10-32 x 1/2")	1	2
25	NLA - Washer, Nylon (#10)	1	2
26	Locknut (#10-32)	1	2
14	Locknut (#10-32)	1	2
11	Screw, Phillips Pan Head w/Patch (#10-32 x 7/8")	1	2
11	Screw, Phillips Pan Head w/Patch (#10-32 x 7/8")	1	2
15	Screw, Phillips Pan Head w/Patch (#10-32 x 7/8")	1	2
16	Screw, Phillips Pan Head (#10-32 x 1/2")	1	2
17	NLA - Washer, Nylon (#10)	1	2
18	Locknut (#10-32)	1	2
11	Screw, Phillips Pan Head w/Patch (#10-32 x 7/8")	1	2
12	Screw, Phillips Pan Head (#10-32 x 1/2")	1	2
13	NLA - Washer, Nylon (#10)	1	2
14	Locknut (#10-32)	1	2
11	Screw, Phillips Pan Head w/Patch (#10-32 x 7/8")	1	2
12	Screw, Phillips Pan Head (#10-32 x 1/2")	1	2
13	NLA - Washer, Nylon (#10)	1	2
14	Locknut (#10-32)	1	2
12	Screw, Phillips Pan Head (#10-32 x 1/2")	1	2
14	Locknut (#10-32)	1	2
13	NLA - Washer, Nylon (#10)	1	2

Kit, 4-Way Switch Quad Link Mounting Hardware

C ,E

Create/add to Wishlist

1134132

Bracket, 4-Way Switch Quad Link, Black - Right

Create/add to Wishlist

1134133

Bracket, 4-Way Switch Quad Link, Black - Left

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes items 3-8
B	Before 10/31/05. Includes items 5 and 7-10
C	After 10/30/05. Includes items 11-14.
D	Part #1080116 is No Longer Available. Order Item #1 part number 60105577 as a replacement. New design is rectangular in shape. It is recommended to order new hardware 1077519 as well.
E	4-Way Toggle Switch 60105577 is not compatible with this hardware.
