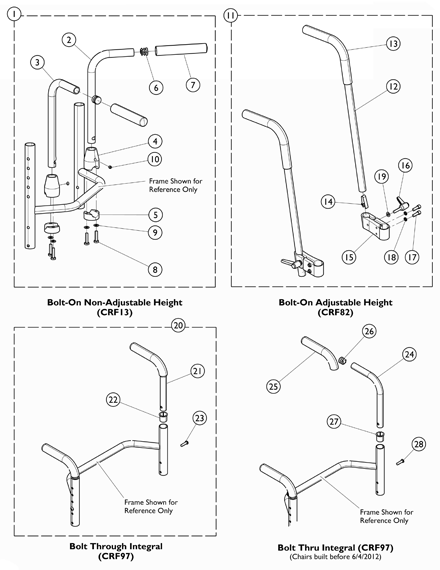

Back Canes - w/ Push Handle Assemblies

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1032213

NLA - Push Handle Assembly w/ Hardware, Bolt On (Pair)

N/A

Create/add to Wishlist

1032210

NLA - Handle, Push, Black - Left

N/A

Create/add to Wishlist

1032209

NLA - Handle, Push, Black - Right

N/A

Create/add to Wishlist

1032211

NLA - Clamp, Threaded, Top

N/A

Create/add to Wishlist

1032212

NLA - Clamp, Non-Threaded, Bottom

N/A

Create/add to Wishlist

1027097

Plug Button, Black (3/4")

$7.50

Create/add to Wishlist

1028431

NLA - Grip, Foam, Black (5")

N/A

Create/add to Wishlist

1025713

NLA - Screw, Hex Head (1/4-20 x 1")

N/A

Create/add to Wishlist

1026907

Washer (1/4 x 1/2 x 1/16")

$7.20

Create/add to Wishlist

1032217

NLA - Screw, Set Flat Point (1/4-20 x 1")

N/A

Create/add to Wishlist

1116587

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
12	Tube, Push Handle	1	2
13	Grip, Foam (8")	1	2
14	Spring, Torsion w/ Button	1	2
15	NLA - Clamp, Push Handle - Right	1	1
15	Clamp, Push Handle - Left	1	1
16	Lever	1	2
17	NLA - Screw, Socket Head (1/4-20 X 3/4")	1	4
18	NLA - Lockwasher, High Collar, Split (1/4")	1	4
19	Washer (1/4 x 1/2 x 1/16")	1	2
12	Tube, Push Handle	1	2
13	Grip, Foam (8")	1	2
14	Spring, Torsion w/ Button	1	2
15	NLA - Clamp, Push Handle - Right	1	1
15	Clamp, Push Handle - Left	1	1
16	Lever	1	2
17	NLA - Screw, Socket Head (1/4-20 X 3/4")	1	4
18	NLA - Lockwasher, High Collar, Split (1/4")	1	4
19	Washer (1/4 x 1/2 x 1/16")	1	2
2	NLA - Clamp, Push Handle - Right	1	1
3	Clamp, Push Handle - Left	1	1
4	Spring, Torsion w/ Button	1	2
5	Tube, Push Handle	1	2
6	Grip, Foam (8")	1	2
7	Lever	1	2
8	Washer (1/4 x 1/2 x 1/16")	1	2
9	NLA - Screw, Socket Head (1/4-20 X 3/4")	1	4
10	NLA - Lockwasher, High Collar, Split (1/4")	1	4

NLA - Kit, Push Handle Assembly w/ Hardware, Adjustable Height (Pair)

N/A

Create/add to Wishlist

1163659

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
21	Back Cane Assembly, Integral	1	2
22	Bushing, Pivot	1	2
23	Screw, Socket Button Head (1/4-20 x 7/8")	1	2
	Package, Screw with Washer (#10 x 7/8") (Pair)	2	1
21	Back Cane Assembly, Integral	1	2
22	Bushing, Pivot	1	2
23	Screw, Socket Button Head (1/4-20 x 7/8")	1	2
	Package, Screw with Washer (#10 x 7/8") (Pair)	2	1
27	Screw, Socket Button Head (1/4-20 x 7/8")	1	2
28	Bushing, Pivot	1	2
29	Back Cane Assembly, Integral	1	2
	Package, Screw with Washer (#10 x 7/8") (Pair)	2	1

NLA - Kit, Push Handle Assembly w/ Hardware, Integral (Pair) (8-11" H)

N/A

C ,D

Create/add to Wishlist

1145663

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
21	Push Handle Assembly, Integral	1	2
22	Bushing, Pivot	1	2
23	Screw, Socket Button Head (1/4-20 x 7/8")	1	2
	Package, Screw with Washer (#10 x 7/8") (Pair)	2	1
21	Push Handle Assembly, Integral	1	2
22	Bushing, Pivot	1	2
23	Screw, Socket Button Head (1/4-20 x 7/8")	1	2
	Package, Screw with Washer (#10 x 7/8") (Pair)	2	1
27	Screw, Socket Button Head (1/4-20 x 7/8")	1	2
28	Bushing, Pivot	1	2
29	Push Handle Assembly, Integral	1	2
	Package, Screw with Washer (#10 x 7/8") (Pair)	2	1

NLA - Kit, Push Handle Assembly w/ Hardware, Integral (Pair)

N/A

C ,E

Create/add to Wishlist

1050072

NLA - Back Cane w/ Push Handle, Straight (10-14" H)

N/A

Create/add to Wishlist

1050073

NLA - Back Cane w/ Push Handle, Straight (12-16" H)

N/A

Create/add to Wishlist

1088491

NLA - Back Cane w/ Push Handle, Straight (14-18" H)

N/A

Create/add to Wishlist

1040785

NLA - Back Cane w/ Push Handle, Straight (16-20" H)

N/A

Create/add to Wishlist

1006229

Grip, Foam (8")

$8.00

Create/add to Wishlist

1027097

Plug Button, Black (3/4")

$7.50

Create/add to Wishlist

1140378

Spacer, Flanged, Black

$10.00

Create/add to Wishlist

1154988

Screw, Socket Button Head (1/4-20 x 7/8")

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes items 2 - 10.
B	Includes items 12 - 19.
C	Includes items 21 - 23. Package, Screw w/ Washer is not shown.
D	Kit covers 8-11" back heights
E	Kit covers 10-14", 12-16", 14-18" and 16-20" back heights. Use as the replacement part for all chairs manufactured before 6/4/2012.
F	For use with 10-14" Back Heights. Use to replace parts for chairs manufactured before 6/4/2012.
G	For use with 12-16" Back Heights. Use to replace parts for chairs manufactured before 6/4/2012.
H	For use with 14-18" Back Heights. Use to replace parts for chairs manufactured before 6/4/2012.
I	For use with 16-20" Back Heights. Use to replace parts for chairs manufactured before 6/4/2012.
J	Use to replace parts for chairs manufactured before 6/4/2012.

Catalog Literature

Parts Books for Reveal™ Wheelchair
