Caster & Forks - 6" Front & Rear - Double Sided Fork

Print this page

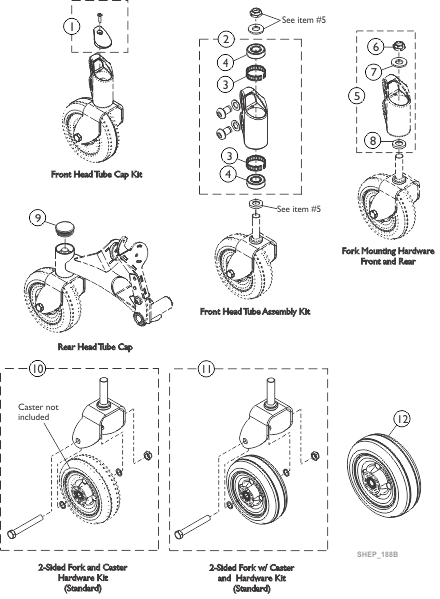

Caster and Forks, 6

Click to Enlarge

Assembly Part Notes

Note Code Definition
A Includes Front Head Tube, Hardware and items 3 and 4. Front Head Tube contains two plastic flange bearings (not shown) press fitted into place and not sold separately.
B The TRRO or TRBKTS option 2-sided fork will have stamped centered dimple on the side and radius outside edges
C Includes the Wheel Assembly w/ Bearings.
D Includes items 6-8
