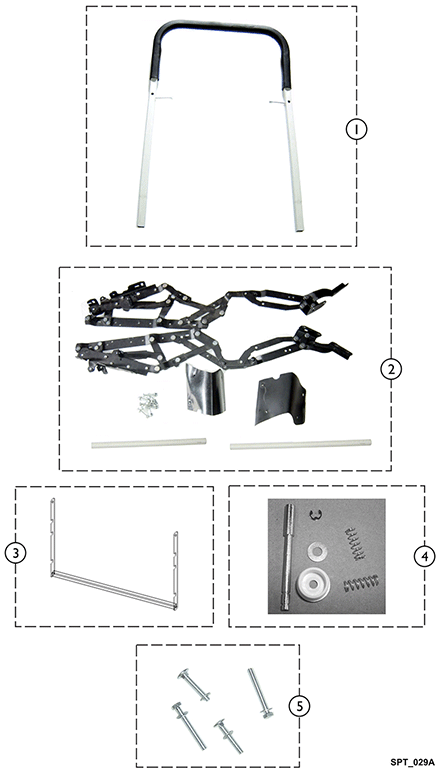

04. Mechanical Hardware Kits - IH6065 Series
| Item | Part/Kit | Part/Kit Description | Qty/Pkg | Qty/Asbly | MSRP | View Parts Notes | |
|---|---|---|---|---|---|---|---|
| 1 | 1126608 | Bar, Push, Back | 1 | 1 |
$115.00 |
A ,J |
Create/add to WishlistCreate/add to Wishlist |
| 2 | 1126609 | Reclining Mechanism Assembly w/ Hardware | 1 | 1 |
$133.00 |
B |
Create/add to WishlistCreate/add to Wishlist |
| 3 | 1163960 | Ratchet Assembly, Grey - 6065A, 6074A | 1 | 1 |
$17.00 |
E |
Create/add to WishlistCreate/add to Wishlist |
| 3 | 1162517 | Ratchet Assembly, Grey - 6065WD | 1 | 1 |
$14.00 |
F |
Create/add to WishlistCreate/add to Wishlist |
| 4 | 1163840 | Pin, Plunger w/ Hardware | 1 | 1 |
$9.00 |
G |
Create/add to WishlistCreate/add to Wishlist |
| 5 | 1126607 | NLA - Kit, Hardware | 1 | 1 | N/A | C |
Create/add to WishlistCreate/add to Wishlist |
| 1165494 | Bar, Push w/ Attaching Hardware | 1 | 1 |
$37.00 |
F ,H |
Create/add to WishlistCreate/add to Wishlist |
Assembly Part Notes
| Note Code | Definition |
|---|---|
| A | Includes (2) Hex Head Screws (M6 x 55). |
| B | Kit includes: (2) Reclining Mechanisms, (2) Finger Guards, (10) Phillips Head Screws (1/4-20 X 1) and (2) Hex Nuts (6mm). |
| C | Kit includes: (2) Phillips Head Screws (M6 x 35) with (2) Washers (6mm) and (2) Hex Head Bolts (M6.35 x 50) with (2) Washers (6.35mm). |
| D | Not Shown. |
| E | Use only with IH6065A model. |
| F | Use only with IH6065WD model. |
| G | Kit includes Plunger Pin (1), Plunger Cap (1), Spring (2) and Washer (1). |
| H | Kit includes Hex Head Screw (2), Washers (2) and Handle. |
| J | Used with the IH6065A and IH6065DA only. |
