Arms - Swing Away - Rear Mount - Transport Brackets

Print this page

Arms - Swing Away - Rear Mount - Transport Brackets

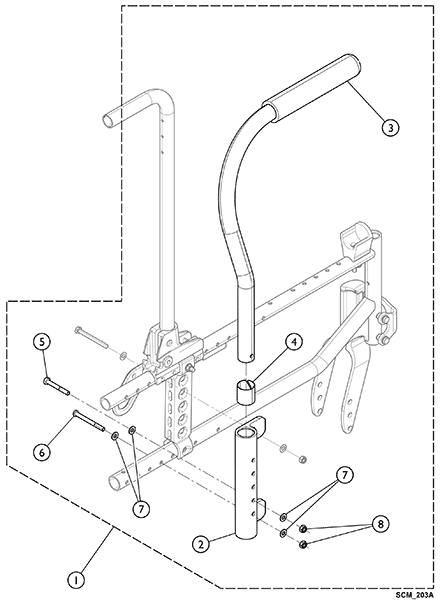

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1

1173040

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	Socket, Arm	1	2
3	Arm, Swing Away, Half, Padded - Left	1	1
4	Sleeve, Bearing	1	2
6	Screw (M6 x 1 x 60mm)	1	2
2	Socket, Arm	1	2
3	Arm, Swing Away, Half, Padded - Right	1	1
3	Arm, Swing Away, Half, Padded - Left	1	1
4	Sleeve, Bearing	1	2
5	Bolt, Hex Head (M6 x 45mm)	1	2
6	Screw (M6 x 1 x 60mm)	1	2
7	NLA - Washer, Steel (1/4 x 1/2 x 3/64")	1	8
8	NLA - Locknut (M6 x 1)	1	4
8	NLA - Locknut (M6 x 1)	1	4
5	Bolt, Hex Head (M6 x 45mm)	1	2
7	NLA - Washer, Steel (1/4 x 1/2 x 3/64")	1	8
3	Arm, Swing Away, Half, Padded - Right	1	1

Kit, Swingaway Arm Mounting w/ Hardware

1

1

$552.00

A

Create/add to Wishlist

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Kit includes items 2 thru 8.

Catalog Literature

Parts Books for MyOn® United States Junior (FXMYONJR, GRMYONJR) Adult (MYONADLT, MYONTS, HDPG)
