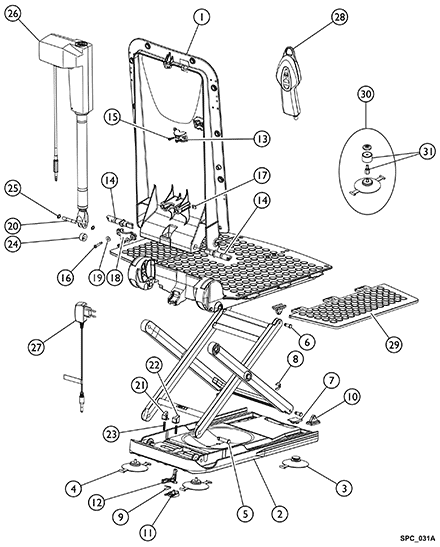

Orca Bathlift (from May 2015)

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1563010	Frame, Backrest, Orca (Lifts built after May 2015)	1	0			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1563011	Plate, Base, Orca (May 2015)	1	0			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	16441	Plate, Base, Orca (Before May 2015)	1	0			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	15353	Cups, Suction, Screw-In and Toggle (Set) (8 cm)	1	0	$13.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	15072	Cups, Suction with Toggle (Pair)	1	0	$7.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	15071	Cups, Suction, Screw-in (Pair)	1	0	$7.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	16679	Bolt (10mm)	1	0			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	15105	Bolt for Gliding Shoe	1	0			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	15121	Cap for Suction Cup	1	0			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	15344	Washer, Securing	1	0			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	15415	Spring	1	0	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	16446	Shoe, Gliding	1	0			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	16448	Latch, Bushing	1	0	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	16449	Latch	1	0	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	16455	Holding Device (Excluding Screws)	1	0			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
14	1470579	Bolt, Right	1	0			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
14	1470580	Bolt, Left	1	0			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
15	15348	Screws, Phone Jack (40 x 22)	1	0			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
16	16781	Lens Head Screw DIN 7985, M5 x 30	1	0			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
17	16779	Nut for Actuator Fastening	1	0			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
18	16778	Clamp, Pipe, Actuator Fastening	1	0			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
19	16780	Washer A2 DIN 9021	1	0			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
20	16793	Axle	1	0	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
21	16791	Locking - Left	1	0	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
22	16792	Locking - Right	1	0	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
23	16794	Pressure Spring for Locking	1	0	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
24	16450	Pulley	1	0	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
25	16456	Ring, Retaining, A2	1	0	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
26	16782	Actuator, Aquatec R	1	0	$174.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
27	16580	Charger, Battery	1	0	$24.02		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
28	1470902	Hand Control, Complete	1	0	$181.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
29	15892	Flap, Side with Film Hinge	1	0	$12.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
30	15170	Kit, Conversion Height Adapter (2 cm)	1	0	$66.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
31	14694	Adapters, Height (Set)	1	0	$39.60		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1581058	Backrest and Seat Plate Replacement	1	0		A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	16606	Cover, Seat, White	1	1	$33.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1470765	Cover, Seat, Blue	1	0	$33.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	16604	Cover, Backrest, White	1	0	$25.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1470766	Cover, Backrest, Blue	1	0	$27.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1470576	Cover Set, Seat and Backrest, White	1	0	$66.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1470767	Cover Set, Seat and Backrest, Blue	1	0	$40.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	For lifts produced (Before May 2015).

Catalog Literature

Parts Books for Aquatec® Series Shower Commodes and Bath Lifts - Canada
