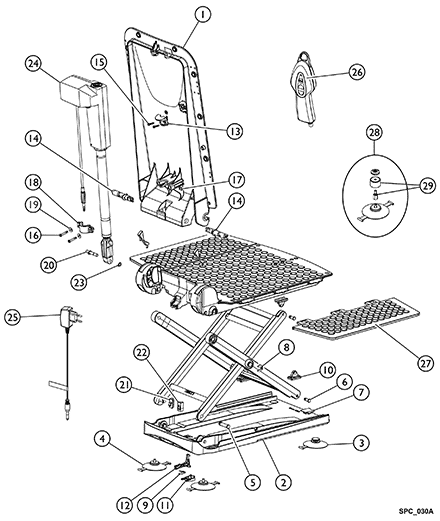

Orca F Bathlift (from June 2015)

Item	Part/Kit	Part/Kit Description	Qty/Pkg	MSRP	View Parts Notes
1	16440	Backrest, Frame	1	$122.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1471054	Base Plate	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	15072	Cups, Suction with Toggle (Pair)	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	15071	Cups, Suction, Screw-in (Pair)	1	$7.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	15353	Cups, Suction, Screw-In and Toggle (Set) (8 cm)	1	$13.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	16240AQT	Suction Cup, Black (130mm) (Pkg. of 4)	1	$57.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	16679	Bolt (10mm)	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	15105	Bolt for Gliding Shoe	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	15121	Cap for Suction Cup	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	15344	Washer, Securing	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	15415	Spring	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	16446	Shoe, Gliding	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	16448	Latch, Bushing	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	16449	Latch	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	16455	Holding Device (Excluding Screws)	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
14	1471058	Bolt, Right	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
15	15348	Screws, Phone Jack (40 x 22)	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
16	16781	Lens Head Screw DIN 7985, M5 x 30	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
17	16779	Nut for Actuator Fastening	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
18	16778	Clamp, Pipe, Actuator Fastening	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
19	16780	Washer A2 DIN 9021	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
20	16793	Axle	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
21	1471057	Locking Pin, Left	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
22	1471056	Locking Pin, Right	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
23	16456	Ring, Retaining, A2	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
24	1471060	Actuator, Aquatec F	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
25	16580	Charger, Battery	1	$24.02		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
26	1470902	Hand Control, Complete	1	$181.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
27	15892	Flap, Side with Film Hinge	1	$12.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
28	15170	Kit, Conversion Height Adapter (2 cm)	1	$66.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
29	14694	Adapters, Height (Set)	1	$39.60		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	15298	Kit, Conversion without Height Adapters	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	16804	Scissors, Lifting	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1581058	Backrest and Seat Plate Replacement	1		A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	For lifts produced before May 2015.
