Seat Pans - Mounting Hardware - Flush Mount Heavy Duty (12 - 19" D)

Print this page

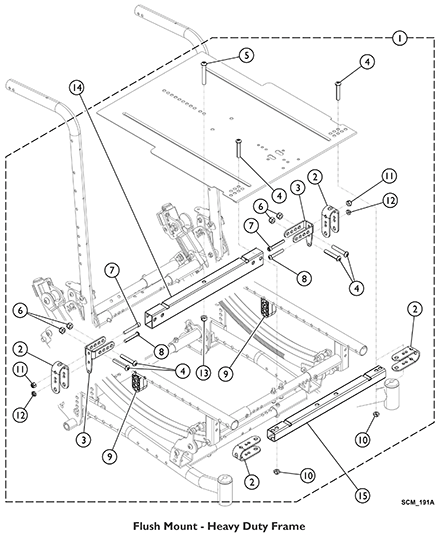

Flush Mount Hardware - Heavy Duty (12-19

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1190142

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	Bracket, Seat Pan	1	4
3	Bracket, Seat Pan, Adjustable	1	2
4	Screw, Socket Button Head (5/16-24 x 1-3/4")	1	6
5	Screw, Button Head, Socket (5/16-18 x 2-1/4")	1	1
6	Locknut (5/16-24)	1	4
7	Screw, Socket Head (1/4-20 x 1-3/4")	1	2
8	Screw, Socket Button Head (1/4-20 x 1-5/8")	1	2
9	Spacer, Block, Black	1	2
10	Locknut (5/16-24)	1	2
11	Locknut (1/4-20)	1	2
13	Locknut (5/16-18)	1	1
12	Locknut, Thin (1/4-20)	1	2
13	Locknut (5/16-18)	1	1
2	Bracket, Seat Pan	1	4
3	Bracket, Seat Pan, Adjustable	1	2
4	Screw, Socket Button Head (5/16-24 x 1-3/4")	1	6
5	Screw, Button Head, Socket (5/16-18 x 2-1/4")	1	1
6	Locknut (5/16-24)	1	4
7	Screw, Socket Head (1/4-20 x 1-3/4")	1	2
8	Screw, Socket Button Head (1/4-20 x 1-5/8")	1	2
9	Spacer, Block, Black	1	2
10	Locknut (5/16-24)	1	2
11	Locknut (1/4-20)	1	2
12	Locknut, Thin (1/4-20)	1	2

Kit, Hardware, Seat Pan, Heavy Duty (12-19" D)

$96.00

Create/add to Wishlist

See Chart

Added to Cart

Option	Chair Width	Part Number
Flush Mount (FLSEAT)	12-13" W	1165779 MSRP: $15.00
Flush Mount (FLSEAT)	14-15" W	1165780 MSRP: $16.00
Flush Mount (FLSEAT)	16-17" W	1165781 MSRP: $17.00
Flush Mount (FLSEAT)	18-19" W	1165782 MSRP: $17.00
Flush Mount (FLSEAT)	20-21" W	1165783 MSRP: $17.00
Flush Mount (FLSEAT)	22-23" W	1165784 MSRP: $18.00
Flush Mount (FLSEAT)	24" W	1165785 MSRP: $19.00

Create/add to Wishlist

#14. Seat Pan Rear Crossbraces

N/A

Create/add to Wishlist

See Chart

Added to Cart

Option	Chair Width	Part Number
SDR1216 - SDR1519	14-15" W	1190105
SDR1216 - SDR1519	16-17" W	1190106
SDR1216 - SDR1519	18-19" W	1190107
SDR1519	20-21" W	1190108
SDR1519	22-23" W	1190109 MSRP: $21.00
SDR1519	24" W	1190110 MSRP: $21.00

Create/add to Wishlist

#15. Seat Pan Front Crossbrace

N/A

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Kit includes items 2 - 13.

Catalog Literature

Parts Books for Solara® 3G Spree 3G
