2

1028835

NLA - Cap, Hub, Black

1

4

N/A

Create/add to Wishlist

3

60264X001

Locknut (5/16-24)

1

$8.00

Create/add to Wishlist

4

1028491

NLA - Washer, Caplugs (11/32" I.D. x 1" O.D.)

1

4

N/A

Create/add to Wishlist

5

1056708

NLA - Plug, Pivot Tube

1

4

N/A

Create/add to Wishlist

6

1038179

NLA - Screw, Hex Head (5/16-24 x 4-1/4")

1

2

N/A

Create/add to Wishlist

7

1024793

NLA - Screw, Hex Head (1/4-20 x 1-3/4")

1

2

N/A

Create/add to Wishlist

8

1029501

Plug Button, Black (1")

1

4

$7.20

Create/add to Wishlist

9

1025195

Locknut (1/4-20)

1

$9.00

Create/add to Wishlist

10

1057381

NLA - Link, Pivot, Hemi, Black (14 - 15" W)

1

2

N/A

Create/add to Wishlist

10

1057382

NLA - Link, Pivot, Hemi, Black (16 - 18" W)

1

2

N/A

Create/add to Wishlist

10

1057383

NLA - Link, Pivot, Hemi, Black (19 - 20" W)

1

2

N/A

Create/add to Wishlist

10

1057384

NLA - Link, Pivot, Adult, Black (14 - 15" W)

1

2

N/A

Create/add to Wishlist

10

1057385

NLA - Link, Pivot, Adult, Black (16 - 18" W)

1

2

N/A

Create/add to Wishlist

10

1057386

NLA - Link, Pivot, Adult, Black (19 - 20" W)

1

2

N/A

Create/add to Wishlist

11

1030949

Screw, Hex Head (1/4-20 x 1-1/2")

1

2

Create/add to Wishlist

12

1057828

NLA - Strap, Pivot Link

1

2

N/A

Create/add to Wishlist

13

1098625

Screw, Hex Head (5/16-24 x 3-1/2")

1

Create/add to Wishlist

14

1037913

NLA - Bushing (5/16 x 7/16 x 9/32")

1

N/A

Create/add to Wishlist

15

1016301

Washer, Nylon (5/16 x 7/8 x 1/8")

1

$10.00

Create/add to Wishlist

16

1025704

Washer, Flat (5/16 x 5/8 x 1/16")

1

$7.20

Create/add to Wishlist

17

1025730

Locknut (5/16-24)

1

$8.00

Create/add to Wishlist

18

1016263

Spacer, Coved (3/4 x 1 x 1/2")

1

4

$9.20

Create/add to Wishlist

19

16308X000

Washer, Flat (5/16 x 11/16 x 1/16")

1

2

Create/add to Wishlist

20

1057832

NLA - Hardware, Crossbrace

1

N/A

Create/add to Wishlist

22

1076284

Screw w/ Washer (#10 x 7/8")

1

2

$8.00

Create/add to Wishlist

22

40163X003

NLA - Screw, Phillips Pan Head (#10 X 5/8")

1

2

N/A

Create/add to Wishlist

23

1025736

Locknut (1/4-20)

1

$7.20

Create/add to Wishlist

1057830

NLA - Hardware, Crossbrace Pivot Tube

1

N/A

A ,B

Create/add to Wishlist

See Chart

Added to Cart

Crossbrace Type		14" Wide		16" Wide		18" Wide		20" Wide
Hemi		Note-A 1064405- NLA		Note-A 1071545- NLA		Note-A 1071546- NLA		Note-A 1071547- NLA
Adult		1064409-NLA		1064410-NLA		1064411-NLA		1064412-NLA

Create/add to Wishlist

See chart-note

Chart Part Notes

Chart Code	Definition
A	Decals are not included with Crossbraces. See page titled "Packaging, Literature and Decals."
B	These Crossbraces are No Longer Available on Storm RII Series wheelchair.

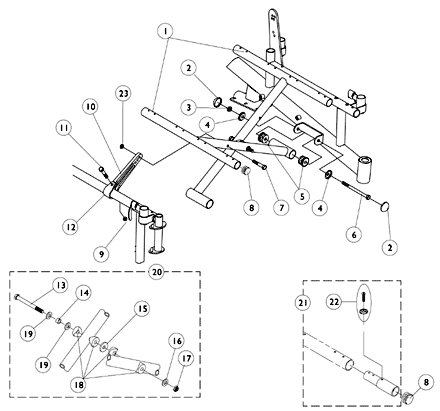

Item #1 - Crossbraces

N/A

See Chart

Added to Cart

Seat Extension Type (Pair) Includes Hardware		Part Number
1"		1058616- NLA
2"		1058617-NLA

Create/add to Wishlist

See chart-note

Chart Part Notes

Chart Code	Definition
A	No Longer Available for the Storm Ranger II Series wheelchair

Item #21 Seat Extension Kit (Pair)

N/A

Note Code	Definition
A	Includes Items 2-6
