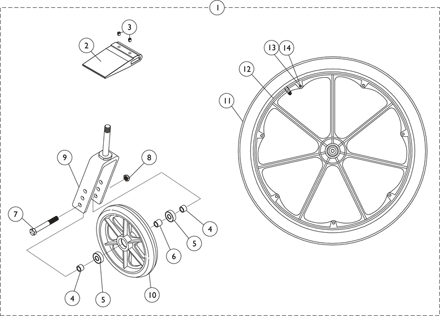

Wheels - Rear - 20-6 & 22-6 Wheel Options - Aluminum Black Anodized Handrim

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1037777

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	Spacer, Wheel Lock Shoe (2-63/64")	1	2
3	Screw, Set Socket Cup Point (#8-32 x 3/16")	1	4
4	Spacer (5/16 x 7/16 x 1/4")	1	4
5	Bearing, Flange (5/16")	1	4
6	Spacer (5/16 x 7/16 x 15/32")	1	2
8	Locknut (5/16-24)	1	2
9	Fork and Stem Assembly, Black (6 x 1" Caster)	1	2
10	NLA - Wheel Assembly, Composite, Urethane, Light Grey (6" x 1")	1	2
11	Wheel Assembly, Composite, Pneumatic (20")	1	2
12	Handrim, Aluminum, 7 PT, Black (34P) (20" Wheel)	1	2
13	Screw, Phillips Pan Head w/ Patch (#10-32 x 1-3/4")	1	14
14	Spacer (1/4 x 11/32 x 15/16")	1	14
7	Screw, Hex Head (5/16-24 x 2-1/4")	1	2

NLA - 20-6 Pneumatic Wheel Options with (6 x 1") Lt. Grey Urethane Casters

N/A

A ,B ,C

Create/add to Wishlist

1052735

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	Spacer, Wheel Lock Shoe (2-63/64")	1	2
3	Screw, Set Socket Cup Point (#8-32 x 3/16")	1	4
4	Spacer (5/16 x 7/16 x 1/4")	1	4
7	Screw, Hex Head (5/16-24 x 2-1/4")	1	2
8	Locknut (5/16-24)	1	2
9	Fork and Stem Assembly, Black (6 x 1" Caster)	1	2
10	Wheel Assembly, 3 Spoke Urethane w/ Bearings, Dark Grey (6" x 1")	1	2
11	Wheel Assembly, Composite, Pneumatic (20")	1	2
12	Handrim, Aluminum, 7 PT, Blk Anodized (20" Wheel)	1	2
13	Screw, Phillips Pan Head w/ Patch (#10-32 x 1-3/4")	1	14
14	Spacer (1/4 x 11/32 x 15/16")	1	14

20-6 Pneumatic Wheel Options with (6 x 1") Dk. Grey Urethane Casters

A ,B ,C ,D

Create/add to Wishlist

1037778

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	Spacer, Wheel Lock Shoe (1-45/64")	1	2
3	Screw, Set Socket Cup Point (#8-32 x 3/16")	1	4
4	Spacer (5/16 x 7/16 x 1/4")	1	4
5	Bearing, Flange (5/16")	1	4
6	Spacer (5/16 x 7/16 x 15/32")	1	2
7	Screw, Hex Head (5/16-24 x 2-1/4")	1	2
8	Locknut (5/16-24)	1	2
9	Fork and Stem Assembly, Black (6 x 1" Caster)	1	2
10	NLA - Wheel Assembly, Composite, Urethane, Light Grey (6" x 1")	1	2
11	Wheel Assembly, Composite, Pneumatic (22")	1	2
12	Handrim, Aluminum, 7 PT, Black (34P) (22" Wheel)	1	2
13	Screw, Phillips Pan Head w/ Patch (#10-32 x 1-3/4")	1	14
14	Spacer (1/4 x 11/32 x 15/16")	1	14

NLA - 22-6 Pneumatic Wheel Options w/ (6 x 1") Lt. Grey Urethane Casters

N/A

A ,B ,C

Create/add to Wishlist

1052736

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	Spacer, Wheel Lock Shoe (1-45/64")	1	2
3	Screw, Set Socket Cup Point (#8-32 x 3/16")	1	4
4	Spacer (5/16 x 7/16 x 1/4")	1	4
5	Bearing, Flange (5/16")	1	4
6	Spacer (5/16 x 7/16 x 15/32")	1	2
7	Screw, Hex Head (5/16-24 x 2-1/4")	1	2
8	Locknut (5/16-24)	1	2
9	Fork and Stem Assembly, Black (6 x 1" Caster)	1	2
10	NLA - Wheel, Urethane (6")	1	2
11	Wheel Assembly, Composite, Pneumatic (22")	1	2
12	Handrim, Aluminum, 7 PT, Blk Anodized (22" Wheel)	1	2
13	Screw, Phillips Pan Head w/ Patch (#10-32 x 1-3/4")	1	14
14	Spacer (1/4 x 11/32 x 15/16")	1	14

22-6 Pneumatic Wheel Options with (6 x 1") Dk. Grey Urethane Casters

A ,B ,C

Create/add to Wishlist

1064482

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	Spacer, Wheel Lock Shoe (2-63/64")	1	2
3	Screw, Set Socket Cup Point (#8-32 x 3/16")	1	4
4	Spacer (5/16 x 7/16 x 1/4")	1	4
5	Bearing, Flange (5/16")	1	4
6	Spacer (5/16 x 7/16 x 15/32")	1	2
7	Screw, Hex Head (5/16-24 x 2-1/4")	1	2
8	Locknut (5/16-24)	1	2
9	Fork and Stem Assembly, Black (6 x 1" Caster)	1	2
10	NLA - Wheel Assembly, Composite, Urethane, Light Grey (6" x 1")	1	2
11	Wheel Assembly, Composite, Urethane (20")	1	2
12	Handrim, Aluminum, 7 PT, Blk Anodized (20" Wheel)	1	2
13	Screw, Phillips Pan Head w/ Patch (#10-32 x 1-3/4")	1	14
14	Spacer (1/4 x 11/32 x 15/16")	1	14

20-6 Urethane Wheel Options with (6 x 1") Lt. Grey Urethane Casters

$475.00

A ,B ,C

Create/add to Wishlist

1064476

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	Spacer, Wheel Lock Shoe (2-63/64")	1	2
3	Screw, Set Socket Cup Point (#8-32 x 3/16")	1	4
4	Spacer (5/16 x 7/16 x 1/4")	1	4
5	Bearing, Flange (5/16")	1	4
6	Spacer (5/16 x 7/16 x 15/32")	1	2
7	Screw, Hex Head (5/16-24 x 2-1/4")	1	2
8	Locknut (5/16-24)	1	2
9	Fork and Stem Assembly, Black (6 x 1" Caster)	1	2
10	NLA - Wheel, Urethane (6")	1	2
11	Wheel Assembly, Composite, Urethane (20")	1	2
12	Handrim, Aluminum, 7 PT, Blk Anodized (20" Wheel)	1	2
13	Screw, Phillips Pan Head w/ Patch (#10-32 x 1-3/4")	1	14
14	Spacer (1/4 x 11/32 x 15/16")	1	14

20-6 Urethane Wheel Options with (6 x 1") Dk. Grey Urethane Casters

$475.00

A ,B ,C

Create/add to Wishlist

1064483

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	Spacer, Wheel Lock Shoe (1-45/64")	1	2
3	Screw, Set Socket Cup Point (#8-32 x 3/16")	1	4
4	Spacer (5/16 x 7/16 x 1/4")	1	4
5	Bearing, Flange (5/16")	1	4
6	Spacer (5/16 x 7/16 x 15/32")	1	2
8	Locknut (5/16-24)	1	2
9	Fork and Stem Assembly, Black (6 x 1" Caster)	1	2
10	NLA - Wheel Assembly, Composite, Urethane, Light Grey (6" x 1")	1	2
11	Wheel Assembly, Composite, Urethane (22")	1	2
12	Handrim, Aluminum, 7 PT, Blk Anodized (22" Wheel)	1	2
13	Screw, Phillips Pan Head w/ Patch (#10-32 x 1-3/4")	1	14
14	Spacer (1/4 x 11/32 x 15/16")	1	14

22-6 Urethane Wheel Options with (6 x 1") Lt. Grey Urethane Casters

$678.00

A ,B ,C

Create/add to Wishlist

1064477

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	Spacer, Wheel Lock Shoe (1-45/64")	1	2
3	Screw, Set Socket Cup Point (#8-32 x 3/16")	1	4
4	Spacer (5/16 x 7/16 x 1/4")	1	4
5	Bearing, Flange (5/16")	1	4
6	Spacer (5/16 x 7/16 x 15/32")	1	2
7	Screw, Hex Head (5/16-24 x 2-1/4")	1	2
8	Locknut (5/16-24)	1	2
9	Fork and Stem Assembly, Black (6 x 1" Caster)	1	2
10	NLA - Wheel, Urethane (6")	1	2
11	Wheel Assembly, Composite, Urethane (22")	1	2
12	Handrim, Aluminum, 7 PT, Blk Anodized (22" Wheel)	1	2
13	Screw, Phillips Pan Head w/ Patch (#10-32 x 1-3/4")	1	14
14	Spacer (1/4 x 11/32 x 15/16")	1	14

22-6 Urethane Wheel Options with (6 x 1") Dk. Grey Urethane Casters

$495.00

A ,B ,C

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes items 2-14.
B	These wheel options can be used in conjunction with Amputee Attachments for 9000SL and 9000XT only.
C	In order to convert the chair to hemi seat-to-floor height, please refer to the seat-to-floor matrix in the price list and/or the service manual.
D	Item number10 includes the Wheel and Items 5 and 6.

Catalog Literature

Parts Books for 9000SL 9000XT 9000XDT 9000XT Recliner
