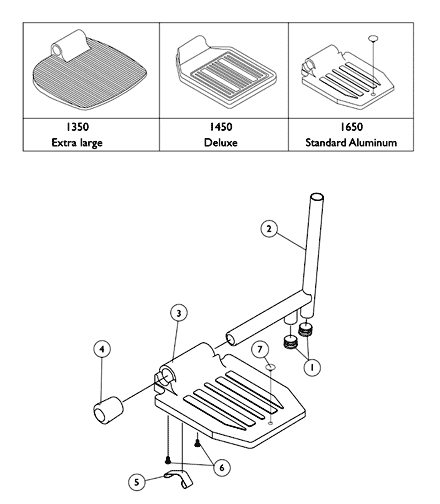

Front Riggings - Pivot/Slide Tube w/ Footplates - PH904A and PHAL4A

Assembly Part Notes

Note Code Definition
A Standard Aluminum (1650)
B Extra Large Aluminum (1350)
C Deluxe Aluminum (1450)
D PH904A
E PHAL4A
F Two per side
G Deluxe takes one
H Part #1023804 is no longer available as a service part individually. See category titled "Front Riggings - Reference Chart" and order part #1023924 or 1023925 Pivot/Slide Tube and Footplate Assembly (Deluxe Aluminum - 1450) as a replacement.
I Use one or more leaf springs per assembly as required such that footplate may be moved by hand to the up-right position and remain in place.
