Prior Model Numbers		Chair Width		Support Assembly Right		Support Assembly Left
T94HA/C/S, TLXH4A, TLXH4C - Black		14-22"		Note-A ,B 1110336 MSRP: $116.00		Note-A ,B 1110337 MSRP: $116.00
T94HA/C/S, TLXH4A, TLXH4C - Black		14-22"		Note-C 1110338 MSRP: $116.00		Note-C 1110339 MSRP: $116.00

Create/add to Wishlist

See chart-note

Chart Part Notes

Chart Code	Definition
A	Without Calf Pads.
C	After 10/14/14 color changed from Chrome to Black. It is recommended to order both the right and left side to match.
B	Black

Item #1 Upper Support Assembly

N/A

A

Create/add to Wishlist

2

1110308

Bracket, Release, Black

1

Create/add to Wishlist

3

1013519

Washer, Nylon (5/16 x 11/16 x 1/16")

1

$10.00

Create/add to Wishlist

4

1014807

Screw, Hex Head (5/16-24 x 3-1/4")

1

$10.00

Create/add to Wishlist

5

10261X000

Nut, Acorn (5/16-24)

1

$10.00

Create/add to Wishlist

6

1030948

Screw, Slotted Truss Head (5/16-24 x 1-1/2")

1

$10.00

Create/add to Wishlist

7

1037125

Cam, Legrest

1

$8.00

Create/add to Wishlist

8

1037126

Handle, Release

1

$10.00

Create/add to Wishlist

9

1037485

Spring, Release

1

$8.00

Create/add to Wishlist

10

1040060

Tip, Plastic, Black

1

$8.00

Create/add to Wishlist

11

1040831

Ring, Snap

1

$8.00

Create/add to Wishlist

12

1048085

Housing, Cam

1

$8.00

Create/add to Wishlist

13

1048086

Lever, Cam, Black

1

$8.00

Create/add to Wishlist

14

1091220

Spacer, Legrest

1

$10.00

Create/add to Wishlist

15

1095433

Plug Button, Black (7/8")

1

$10.00

Create/add to Wishlist

16

1096773

Nut, Push Dome (5/16")

1

$10.00

Create/add to Wishlist

17

1110165

NLA - Tube, Elevating Support, Chrome - Right

1

N/A

C

Create/add to Wishlist

17

1110166

NLA - Tube, Elevating Support, Chrome - Left

1

N/A

Create/add to Wishlist

17

1110163

Tube, Elevating Support, Black - Right

1

Create/add to Wishlist

17

1110164

NLA - Tube, Elevating Support, Black - Left

1

N/A

C

Create/add to Wishlist

18

1110208

NLA - Bracket, Calf Pad Mounting, Chrome

1

N/A

Create/add to Wishlist

18

1110207

Bracket, Calf Pad Mounting, Black

1

Create/add to Wishlist

19

42326X001

Bar, Ratchet

1

$8.00

Create/add to Wishlist

20

1110334

NLA - Legrest Support Tube Assembly, Hemi, Black - Right

1

N/A

B

Create/add to Wishlist

20

1110335

Legrest Support Tube Assembly, Hemi, Black - Left

1

$73.00

B

Create/add to Wishlist

20

1110332

NLA - Legrest Support Tube Assembly, Hemi, Black - Right

1

N/A

B ,C

Create/add to Wishlist

20

1110333

Legrest Support Tube Assembly, Hemi, Black - Left

1

B

Create/add to Wishlist

21

47328X003

Bushing, Pivot (5/16 x 7/16 x 7/8")

1

$10.00

Create/add to Wishlist

22

47330X003

Spacer (5/16 x 1/2 x 3/8")

1

$10.00

Create/add to Wishlist

23

48823X008

Spring, Leaf

1

$9.00

Create/add to Wishlist

24

60264X001

Locknut (5/16-24)

1

2

$8.00

Create/add to Wishlist

25

04526X019

Plate, Legrest Pad

1

$9.00

Create/add to Wishlist

26

1006490

Tip, Plastic, Black

1

$8.00

Create/add to Wishlist

26

1127688

Package, Plastic Tip, Black

10

1

$18.00

Note Code	Definition
A	Includes items 2-25.
B	Assembly includes: tip, bumper, screws, plug, spring, nuts, handle release, legrest support and bushing.
C	No longer available as a service part individually. Order item #1 as a replacement.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

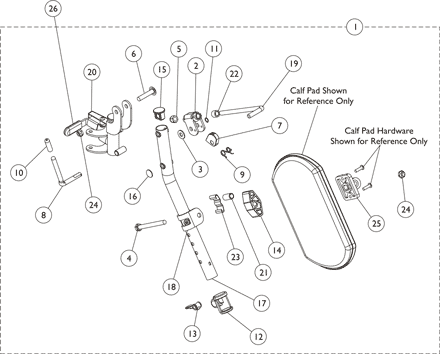

Front Riggings - Legrest Support Assembly - T94H/TLXH4 Series
