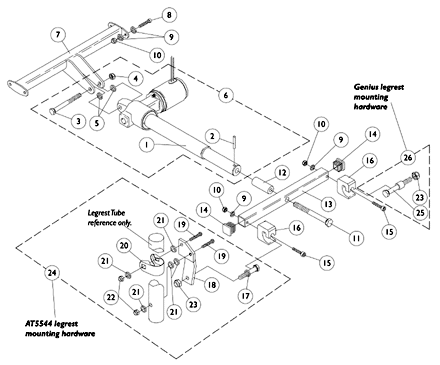

Front Riggings - Legrest - Power Elevating - Basic Recline 4XP

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	0239000	NLA - Actuator Motor, Power Leg, 4XP (4" Stroke)	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	0053600	NLA - Pin, Roll (1/8 x 1-1/8")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1106223	Screw, Socket Head (3/8-16 x 2-1/2")	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	0054106	NLA - Locknut, High Profile (3/8-16)	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	0053900	NLA - Washer, Nylon (3/8 x 13/16 x 1/16")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1077509	Actuator Motor w/ Hardware, Power Leg, 4XP (4" Stroke)	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	0236102	NLA - Brace, Cross, Power Leg - Rear (4XP) (16" W)	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	0236202	NLA - Brace, Cross, Power Leg - Rear (4XP) (18" W)	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1024793	NLA - Screw, Hex Head (1/4-20 x 1-3/4")	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	0050406	Washer, Flat (1/4 x 5/8 x 1/16")	1	10	$7.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	7930333	Locknut (1/4-20)	1	6	$44.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	0238206	NLA - Screw, Hex Head (1/2-20 x 2") (For 16" Seat Depth)	1	1	N/A	C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	0238306	NLA - Screw, Hex Head (1/2-20 x 4") (For 18" Seat Depth)	1	1	N/A	D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	0238406	Screw, Hex Head (1/2-20 x 6") (For 20" Seat Depth)	1	1		E	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	0235622	NLA - Actuator Extension, 2" (18" Seat Depth)	1	1	N/A	D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	0235722	NLA - Actuator Extension, 4" (20" Seat Depth)	1	1	N/A	E	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	0235802	NLA - Bar, Push, Power Leg (4XP) (16" W)	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	0235902	NLA - Push Bar, Power Leg (4XP) 18" Wide	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
14	1071237	Plug Button, Square, Black (1")	1	2			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
15	0132206	NLA - Screw, Allen Head (1/4-20 x 1-3/4")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
16	0026400	NLA - Receptacle, Power Legrest	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
17	0025306	NLA - Push Pin, AT5544	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
18	0236602	Bracket, Push - Right	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
18	0236502	Bracket, Push - Left	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
19	0055206	NLA - Screw, Cap, Button Head, Socket (5/16-18 x 1-3/4")	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
20	0055900	NLA - U-Clamp (7/8")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
21	0054806	NLA - Washer, Flat (11/32 x 11/16 x 1/16")	1	10	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
22	0054906	Locknut, High Profile (5/16-18)	1	4	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
23	0054106	NLA - Locknut, High Profile (3/8-16)	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
24	1084181	Hardware, Legrest Mounting, AT5554 - Right	1	1		A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
24	1084182	Hardware, Legrest Mounting, AT5554 - Left	1	1		A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
25	0203906	NLA - Pin, Push, Inside Mount, Genius	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
26	1077518	Hardware, Legrest Mounting, Genius	1	2		B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Includes items 17-23
B	Includes items 23, 25
C	16" Seat Depth
D	18" Seat Depth
E	20" Seat Depth

Catalog Literature

Parts Books for Tarsys® Basic Tilt, Tilt Only, Recline 4XP, Recline Only, Tilt/Recline
