Front Riggings - Legrest, Mechanical Actuator Linkage w/o M.S.R. - Basic Recline 4XP

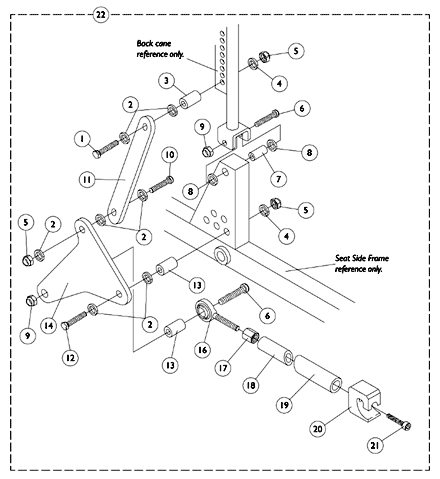

Mechanical Legrest Actuator Linkage Without M.S.R.

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1024793	NLA - Screw, Hex Head (1/4-20 x 1-3/4")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	0050100	NLA - Washer, Nylon Flat (1/4 x 1/2 x 1/16")	1	7	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	0233222	NLA - Spacer, Plastic	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	0050406	Washer, Flat (1/4 x 5/8 x 1/16")	1	2	$7.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	7930333	Locknut (1/4-20)	25	3	$44.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	0055506	NLA - Screw, Button Head, Socket (5/16-18 x 2")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	0060300	NLA - Bushing, Bronze (5/16 x 7/16 x 1-1/4")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	0055800	NLA - Washer, Nylon (7/16 x 3/4 x 3/32")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	0054906	Locknut, High Profile (5/16-18)	1	2	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	0051606	NLA - Screw, Cap, Button Head, Socket (1/4-20 x 1")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	0217324	NLA - Link, Small, Black	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	0233506	NLA - Screw, Hex Head (1/4-20 x 2-1/2")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	0217024	NLA - Bushing, Back Post/Leg Link	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
14	0217124	NLA - Link, Back Post Leg, Black	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
15	0220924	NLA - Spacer, Rod End	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
16	0083800	NLA - Rod, End, Male (5/16-24)	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
17	0141405	NLA - Nut, Hex (5/16-24)	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
18	0035902	NLA - Rod, Push, Rear Tube, Short, Black (12-1/2")	1	1	N/A	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
18	0222502	NLA - Rod, Push, Rear Tube, Long, Black (14")	1	1	N/A	C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
19	0035702	NLA - Rod, Push, Front Tube, AT5544 Legrest, Black	1	1	N/A	D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
19	0036402	NLA - Rod, Push, Front Tube, Genius Legrest, Black	1	1		E	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
20	0026400	NLA - Receptacle, Power Legrest	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
21	0053306	NLA - Screw, Allen Head (1/4-28 x 1")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
22	1077510	NLA - Mechanical Legrest Hardware Assembly	1	2	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Less items 18, 19
B	Short 12-1/2"
C	Long 14"
D	AT5544 Legrest
E	Genius Legrest

Catalog Literature

Parts Books for Tarsys® Basic Tilt, Tilt Only, Recline 4XP, Recline Only, Tilt/Recline
