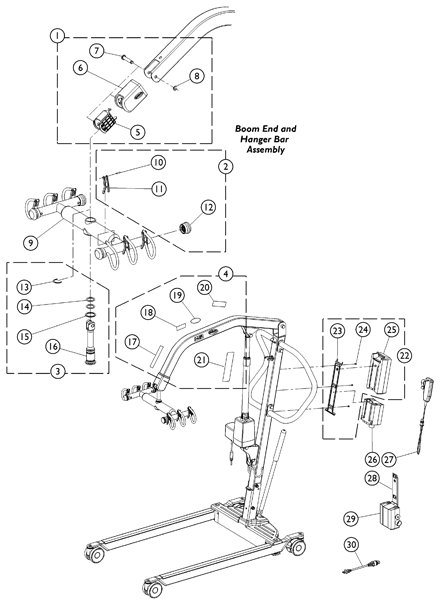

08. ILIFTEM - Manual Lift - Hanger Bar, Labels, Battery Pack and Controller
| Item | Part/Kit | Part/Kit Description | Qty/Pkg | Qty/Asbly | MSRP | View Parts Notes | |
|---|---|---|---|---|---|---|---|
| 1 |
1177616
|
Kit, Hanger Bar Mounting Hardware | 1 | 1 |
$19.00 |
A |
Create/add to WishlistCreate/add to Wishlist |
| 2 |
1177617
|
NLA - Kit, Hanger Bar Retainer Strap and Plug Button | 1 | 1 | N/A | B |
Create/add to WishlistCreate/add to Wishlist |
| 3 |
1177618
|
Kit, Hanger Bar Pin Assembly | 1 | 1 |
$39.00 |
C |
Create/add to WishlistCreate/add to Wishlist |
| 4 |
1177620
|
Kit, Label | 1 | 1 | D |
Create/add to WishlistCreate/add to Wishlist |
|
| 9 | 1177640 | NLA - Hanger Bar Assembly | 1 | 1 | N/A | E |
Create/add to WishlistCreate/add to Wishlist |
| 22 |
1177621
|
NLA - Kit, Battery and Mounting Bracket | 1 | 1 | N/A | F ,G |
Create/add to WishlistCreate/add to Wishlist |
| 23 | 1078284 | Bracket, Battery - Electric Only | 1 | 1 |
$49.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 24 | 1078980 | Screw, Phillips Pan Head (#10-24 x 1/4") | 1 | 3 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 25 | 1152383 | Battery Pack | 1 | 1 |
$296.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 26 | 1175310 | NLA - Controller | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 27 | 1177595 | Pendant, Two Channel w/ Hook | 1 | 1 |
$68.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 28 | 1078306 | Bracket, Wall Mount Charger | 1 | 1 |
$54.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 29 | 1175312 | Charger | 1 | 1 |
$291.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 30 | 1079133 | Cord, Power, USA | 1 | 1 |
$20.00 |
Create/add to WishlistCreate/add to Wishlist |
Assembly Part Notes
| Note Code | Definition |
|---|---|
| A | Includes items 5, 6, 7, and 8. |
| B | Includes items 10, 11, and 12. |
| C | Includes items 13, 14, 15, and 16. |
| D | Includes items 17 - 21. |
| E | Includes Hanger Bar and items 11, 12, and 13. |
| F | Includes items 23, 24, and 25. |
| G | 1177621 is not currently available at this time, please use the following part numbers as replacements, item 23 (1078284), item 24 (1078980), and item 25 (1152383). |
