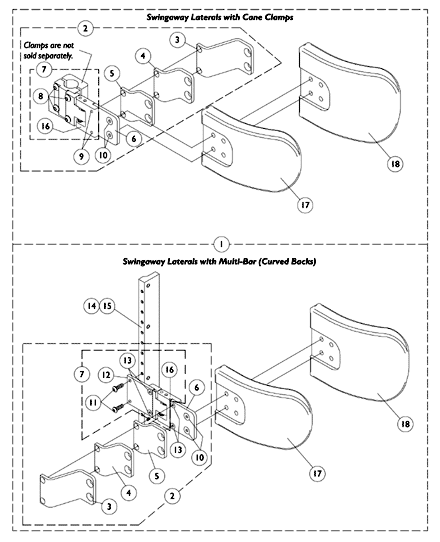

Accessories - Lateral Support Assembly - Basic Recline (4XP) or Tilt/Recline & Recline Only

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1072661	Swingaway Lateral Support Assembly (Tarsys) (Pair) Cane Clamp Hardware with Medium Pads	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	1072662	Swingaway Lateral Support Assembly (Tarsys) (Pair) Cane Clamp Hardware with Large Pads	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	1072585	NLA - Swingaway Lateral Support Assembly (Tarsys) (Pair) Multi Bar Hardware with Medium Pads	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	1072586	NLA - Swingaway Lateral Support Assembly (Tarsys) (Pair) Multi Bar Hardware with Large Pads	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1072660	NLA - Clamp, Cane - Right	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1077191	NLA - Clamp, Cane - Left	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1072588	NLA - Multi-Bar - Right	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1072587	NLA - Multi-Bar - Left	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1072592	Bracket, Extension Offset, Black (2")	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	See Note	See Footnote	1	1		C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1077186	NLA - Bracket, Extension Offset, Black (1/2")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1077185	Bracket, Flush Mount, Black	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1077192	Clamp, Cane - Right	1	1		B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1077193	Clamp, Cane - Left	1	1		B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1077194	NLA - Multi-Bar - Right	1	1	N/A	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1077195	NLA - Multi-Bar - Left	1	1	N/A	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	0051206	NLA - Screw, Machine, Hex Socket, Button Head (1/4-20 x 1-1/4)	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1084411	NLA - Screw, Socket Flat Head (#10-32 x 1/2")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1102887	Screw, Socket Flat Head (1/4-20 x 1/2")	1	2			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1072593	NLA - Screw, Allen Button Head (#10-32 x 5/8")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1077190	NLA - Bracket, Mounting, Black	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	1084411	NLA - Screw, Socket Flat Head (#10-32 x 1/2")	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
14	0063522	NLA - Bar, Multi-Attachment, A.B.S. Curved Back, 3/4" Spacing	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
15	0052906	NLA - Screw, Socket Button Head (1/4-20 x 3/4")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
16	1096489	NLA - Bracket, Swingaway, Cane Clamp, Black - Right	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
16	1096490	NLA - Bracket, Swingaway, Cane Clamp, Black - Left	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
16	1077188	Bracket, Swingaway - Right	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
16	1077189	NLA - Bracket, Swingaway - Left	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
17	1072589	Pad, Lateral Support - Medium (6" W x 4" H)	1	1	$71.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
18	1072590	Pad, Lateral Support - Large (6" W x 5" H)	1	1	$125.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Swingaway Bracket Assembly with Offset Brackets
B	Swingaway Bracket Assembly LESS Offset Brackets
C	No longer offered as an individual service part.

Catalog Literature

Parts Books for Tarsys® Basic Tilt, Tilt Only, Recline 4XP, Recline Only, Tilt/Recline
