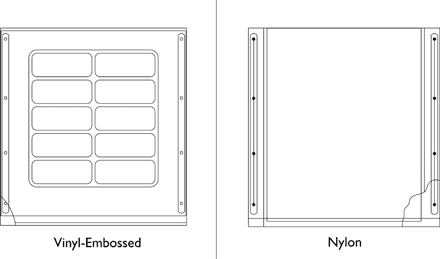

Upholstery - Back

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

See Chart

Added to Cart

Chair Width x Back Height		Part Number
16 x 16"		Note-A 8881127475 MSRP: $36.00
18 x 16"		Note-A 8881127476 MSRP: $36.00
20 x 16"		Note-A 8881127477 MSRP: $41.00

Create/add to Wishlist

See chart-note

Back Upholstery Kits - EXI/EX2 - Vinyl

N/A

See Chart

Added to Cart

Chair Width		Part Number
All Widths		1054595- NLA
All Widths		Note-A 8881181852 MSRP: $19.00

Create/add to Wishlist

See chart-note

Headrest Extension Tube - Chrome and Color

N/A

See Chart

Added to Cart

Chair Width	Nylon	Vinyl
14"	Note-A 1127488 MSRP: $71.00	Note-B 8881127493 MSRP: $71.00
16"	Note-A 1127489 MSRP: $71.00	Note-B 8881127494 MSRP: $71.00
18"	Note-A 1127490 MSRP: $71.00	Note-B 8881127495 MSRP: $42.00
20"	Note-A 1127491 MSRP: $71.00	Note-B 8881127496 MSRP: $42.00
22"	Note-A 1127492 MSRP: $71.00	Note-B 8881127497 MSRP: $71.00

Create/add to Wishlist

See chart-note

Back Upholstery Kits - SX5 Recliner

N/A

See Chart

Added to Cart

Chair Width	Nylon	Vinyl
14" Wide	Note-B 1127513 MSRP: $59.00	Note-A ,B 8881127518 MSRP: $60.00
16" Wide	Note-B 1127514 MSRP: $59.00	Note-A ,B 8881127519 MSRP: $60.00
18" Wide	1127515 MSRP: $59.00	Note-A 8881127520 MSRP: $42.00
19" Wide	Note-B 1130998	Note-A ,B 8881130999
20" Wide	Note-B 1127516 MSRP: $59.00	Note-A ,B 8881127521 MSRP: $60.00
22" Wide	Note-B 1127517 MSRP: $57.00	Note-A ,B 8881127522 MSRP: $60.00

Create/add to Wishlist

See chart-note

Recliner Headrest Upholstery w/ Hardware

N/A

See Chart

Added to Cart

Chair Width	Nylon	Vinyl
14" Wide	1133389 MSRP: $159.00	Note-A 8881133384 MSRP: $159.00
16" Wide	1133390 MSRP: $159.00	Note-A 8881133385 MSRP: $159.00
18" Wide	1133391 MSRP: $159.00	Note-A 8881133386 MSRP: $159.00
19" Wide	1133394	Note-A 8881133395
20" Wide	1133392 MSRP: $159.00	Note-A 8881133387 MSRP: $159.00
22" Wide	1133393 MSRP: $159.00	Note-A 8881133388 MSRP: $159.00

Create/add to Wishlist

See chart-note

Recliner Black Headrest Extension Tube and Upholstery Kits

N/A

See Chart

Added to Cart

Part Number		Description		Quantity
1041541 MSRP: $15.00		Screws w/Washers		1 Pkg of 12

Create/add to Wishlist

Back Upholstery and Headrest Extension Upholstery Hardware

N/A

See Chart

Added to Cart

Chair Width x Back Height	Nylon	Vinyl
14 x 16"	Note-A 1127478 MSRP: $71.00	Note-B 8881127498 MSRP: $71.00
14 x 18"	Note-A 1127479 MSRP: $71.00	Note-B 8881127499
16 x 16"	Note-A 1127480 MSRP: $39.00	Note-B 8881127500 MSRP: $36.00
16 x 18"	Note-A 1127481 MSRP: $71.00	Note-B 8881127501 MSRP: $71.00
18 x 16"	Note-A 1127482 MSRP: $39.00	Note-B 8881127502 MSRP: $33.00
18 x 18"	Note-A 1127483 MSRP: $39.00	Note-B 8881127503 MSRP: $71.00
20 x 16"	Note-A 1127484 MSRP: $71.00	Note-B 8881127504 MSRP: $39.00
20 x 18"	Note-A 1127485 MSRP: $71.00	Note-B 8881127505 MSRP: $71.00
22 x 16"	Note-A 1127486 MSRP: $71.00	Note-B 8881127506 MSRP: $53.00
22 x 18"	Note-A 1127487 MSRP: $71.00	Note-B 8881127507 MSRP: $71.00

Create/add to Wishlist

See chart-note

Back Upholstery Kits - SX5

N/A

See Chart

Added to Cart

Chair Width	Pillow Dimension	Nylon	Vinyl
14" Wide	14 x 5"	Note-A 1115386 MSRP: $32.00	Note-B 8881091676 MSRP: $32.00
16" Wide	14 x 5"	Note-A 1115387 MSRP: $32.00	Note-B 8881091677 MSRP: $32.00
18" Wide	14 x 5"	Note-A 1115387 MSRP: $32.00	Note-B 8881091677 MSRP: $32.00
20" Wide	16 x 5"	Note-A 1115388 MSRP: $32.00	Note-B 8881091678 MSRP: $32.00
22" Wide	18 x 5"	Note-A 1115389 MSRP: $32.00	Note-B 8881091679 MSRP: $32.00

Create/add to Wishlist

See chart-note

Recliner Headrest Pillows

N/A

Catalog Literature

Parts Books for Tracer® EX2 Tracer® EXI Tracer® SX5 Tracer® SX5 Recliner

Part/Kit Description	Qty/Pkg	Qty/Asbly
NLA - Headrest Extension Tube Assembly, Black	1	2
Hardware, Upholstery - Screws w/ Washers (Pkg. of 8)	1	1
Upholstery, Headrest Extension, Nylon, Black (14" W)	1	1
Upholstery, Headrest Pillow, Nylon, Black (14" W)	1	1

Part/Kit Description	Qty/Pkg	Qty/Asbly
NLA - Headrest Extension Tube Assembly, Black	1	2
NLA - Upholstery, Headrest Extension, Vinyl (14" W)	1	1
Upholstery, Headrest Pillow, Vinyl (14" W)	1	1
Hardware, Upholstery - Screws w/ Washers (Pkg. of 8)	1	1

Part/Kit Description	Qty/Pkg	Qty/Asbly
NLA - Headrest Extension Tube Assembly, Black	1	2
Hardware, Upholstery - Screws w/ Washers (Pkg. of 8)	1	1
Upholstery, Headrest Extension, Nylon, Black (16" W)	1	1
Upholstery, Headrest Pillow, Nylon, Black (16-18" W)	1	1

Part/Kit Description	Qty/Pkg	Qty/Asbly
NLA - Headrest Extension Tube Assembly, Black	1	2
NLA - Upholstery, Headrest Extension, Vinyl (16" W)	1	1
Upholstery, Headrest Pillow, Vinyl (16-18" W)	1	1
Hardware, Upholstery - Screws w/ Washers (Pkg. of 8)	1	1

Part/Kit Description	Qty/Pkg	Qty/Asbly
NLA - Headrest Extension Tube Assembly, Black	1	2
Hardware, Upholstery - Screws w/ Washers (Pkg. of 8)	1	1
Upholstery, Headrest Extension, Nylon, Black (18" W)	1	1
Upholstery, Headrest Pillow, Nylon, Black (16-18" W)	1	1

Upholstery - Back

Create/add to Wishlist

Create/add to Wishlist

Chart Part Notes

Create/add to Wishlist

Create/add to Wishlist

Chart Part Notes

Create/add to Wishlist

Create/add to Wishlist

Chart Part Notes

Create/add to Wishlist

Create/add to Wishlist

Chart Part Notes

Create/add to Wishlist

Create/add to Wishlist

Chart Part Notes

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Chart Part Notes

Create/add to Wishlist

Create/add to Wishlist

Chart Part Notes

Catalog Literature

Part/Kit Description	Qty/Pkg	Qty/Asbly
Screw, Phillips Oval Head w/ Washer (#10-16 x 7/8")	1	12
NLA - Upholstery, Back, Vinyl (16" W x 16" H)	1	1

Part/Kit Description	Qty/Pkg	Qty/Asbly
Screw, Phillips Oval Head w/ Washer (#10-16 x 7/8")	1	12
Upholstery, Back, Vinyl (18" W x 16" H)	1	1

Part/Kit Description	Qty/Pkg	Qty/Asbly
Screw, Phillips Oval Head w/ Washer (#10-16 x 7/8")	1	12
Upholstery, Back, Vinyl (20" W x 16" H)	1	1

Part/Kit Description	Qty/Pkg	Qty/Asbly
Screw, Phillips Oval Head w/ Washer (#10-16 x 7/8")	1	12
Upholstery, Back, Recliner, Nylon, Black (14" W)	1	1

Part/Kit Description	Qty/Pkg	Qty/Asbly
Screw, Phillips Oval Head w/ Washer (#10-16 x 7/8")	1	12
Upholstery, Back, Recliner, Vinyl (14" W)	1	1

Part/Kit Description	Qty/Pkg	Qty/Asbly
Screw, Phillips Oval Head w/ Washer (#10-16 x 7/8")	1	12
NLA - Upholstery, Back, Recliner, Vinyl (16" W)	1	1

Part/Kit Description	Qty/Pkg	Qty/Asbly
Upholstery, Headrest, Recliner, Vinyl (19" W)	1	1
Screw, Phillips Oval Head w/ Washer (#10-16 x 7/8")	1	12

Part/Kit Description	Qty/Pkg	Qty/Asbly
NLA - Headrest Extension Tube Assembly, Black	1	2
Hardware, Upholstery - Screws w/ Washers (Pkg. of 8)	1	1
Cushion, Headrest Upholstery, Nylon	1	1

Part/Kit Description	Qty/Pkg	Qty/Asbly
NLA - Headrest Extension Tube Assembly, Black	1	2
NLA - Upholstery, Headrest Extension, Vinyl (20" W)	1	1
Upholstery, Headrest Pillow, Vinyl (20" W)	1	1
Hardware, Upholstery - Screws w/ Washers (Pkg. of 8)	1	1

Part/Kit Description	Qty/Pkg	Qty/Asbly
NLA - Headrest Extension Tube Assembly, Black	1	2
NLA - Upholstery, Headrest Extension, Vinyl (22" W)	1	1
Upholstery, Headrest Pillow, Vinyl (22" W)	1	1
Hardware, Upholstery - Screws w/ Washers (Pkg. of 8)	1	1

Part/Kit Description	Qty/Pkg	Qty/Asbly
Screw, Phillips Oval Head w/ Washer (#10-16 x 7/8")	1	12
Upholstery, Back, Black, Nylon (14" W x 16" H)	1	1

Part/Kit Description	Qty/Pkg	Qty/Asbly
Screw, Phillips Oval Head w/ Washer (#10-16 x 7/8")	1	12
Upholstery, Back, Nylon, Black (16" W x 15"-17" H)	1	1

Part/Kit Description	Qty/Pkg	Qty/Asbly
Upholstery, Back, Vinyl (16" W x 16" H)	1	1
Screw, Phillips Oval Head w/ Washer (#10-16 x 7/8")	12	1

Part/Kit Description	Qty/Pkg	Qty/Asbly
Screw, Phillips Oval Head w/ Washer (#10-16 x 7/8")	1	12
Upholstery, Back, Nylon, Black (18" W x 15"-17" H)	1	1

Part/Kit Description	Qty/Pkg	Qty/Asbly
Screw, Phillips Oval Head w/ Washer (#10-16 x 7/8")	1	12
Upholstery, Back, Nylon, Black (20" W x 15"-17" H)	1	1

Part/Kit Description	Qty/Pkg	Qty/Asbly
Screw, Phillips Oval Head w/ Washer (#10-16 x 7/8")	1	12
Upholstery, Back, Black, Nylon (22" W x 16" H)	1	1

Part/Kit Description	Qty/Pkg	Qty/Asbly
NLA - Upholstery, Back, Vinyl (22" W x 16" H)	1	1
Screw, Phillips Oval Head w/ Washer (#10-16 x 7/8")	1	12
