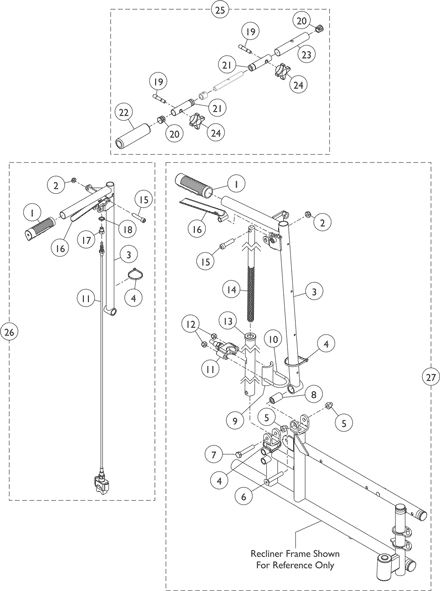

Back - Recliner Assembly
Item | Part/Kit | Part/Kit Description | Qty/Pkg | Qty/Asbly | MSRP | View Parts Notes | |
---|---|---|---|---|---|---|---|
1 | 1021261 | Grip, Hand (6") | 1 | 1 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
2 | 60290X002 | Locknut (5/16-18) | 1 | 1 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
3 | 1101925 | Tube, Back Reclining, Black - Right | 1 | 1 |
Create/add to WishlistCreate/add to Wishlist |
||
3 | 1101926 | Tube, Back Reclining, Black - Left | 1 | 1 |
Create/add to WishlistCreate/add to Wishlist |
||
4 | 1021260 | Tie Wrap (5-5/8" L) | 1 | 2 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
5 | 1060057 | Nut, Cap (5/16-24) | 1 | 2 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
6 | 1058920 | Screw, Socket Flat Head (5/16-24 x 2") | 1 | 1 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
7 | 11239X000 | NLA - Screw, Hex Head (5/16-24 x 1-3/4") | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
8 | 1058938 | Bushing, Pivot (5/16 x 5/8 x 1-1/8") | 1 | 1 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
9 | 1023329 | NLA - Plate Support | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
10 | 1023328 | U-Bolt (1/4-20 x 1-13/16") | 1 | 1 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
11 |
1074471
|
Cable and Housing Assembly | 1 | 1 |
$40.00 |
Create/add to WishlistCreate/add to Wishlist |
|
12 | 7930307 | NLA - Locknut (1/4-20") | 25 | 2 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
13 | 1098445 | Tube and Cap Assembly, Black | 1 | 1 |
Create/add to WishlistCreate/add to Wishlist |
||
14 | 1100700 | Rod, Locking | 1 | 1 |
$21.00 |
Create/add to WishlistCreate/add to Wishlist |
|
15 | 1021344 | Screw, Socket Head (5/16-18 x 1-1/2") | 1 | 1 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
16 | 1021085 | Lever, Brake Release, Black | 1 | 1 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
17 | 1070840 | NLA - Nut, Swivel (5/16-18 x 21/32") | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
18 | 1071676 | Fastener, Spring Grip | 1 | 1 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
19 | 1021091 | Stud (5/16-18 x 1-3/4") | 1 | 2 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
20 | 1027097 | Plug Button, Black (3/4") | 1 | 2 |
$7.50 |
Create/add to WishlistCreate/add to Wishlist |
|
21 | 1101934 | NLA - Tube, Right | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
21 | 1101935 | NLA - Tube, Left | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
22 | 1101930 | Grip, Handle, Black | 1 | 1 |
Create/add to WishlistCreate/add to Wishlist |
||
23 | 1101932 | NLA - Cover, Tube, Chrome (10 - 12" W) | 1 | 1 | N/A | G |
Create/add to WishlistCreate/add to Wishlist |
23 | 1021353 | NLA - Cover, Tube, Chrome (14 - 15" W) | 1 | 1 | N/A | G |
Create/add to WishlistCreate/add to Wishlist |
23 | 1021088 | NLA - Cover, Tube, Chrome (16 - 19" W) | 1 | 1 | N/A | G |
Create/add to WishlistCreate/add to Wishlist |
24 | 1021092 | Knob, Black | 1 | 2 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
25 | 1101936 | NLA - Bar, Adjustable, Spreader, Chrome (10 - 12" W) | 1 | 1 | N/A | A |
Create/add to WishlistCreate/add to Wishlist |
25 | 1052597 | NLA - Bar, Adjustable, Spreader, Chrome (14 - 15" W) | 1 | 1 | N/A | A |
Create/add to WishlistCreate/add to Wishlist |
25 | 1021276 | NLA - Bar, Adjustable, Spreader, Chrome (16 - 19" W) | 1 | 1 | N/A | A |
Create/add to WishlistCreate/add to Wishlist |
25 | 8881181933 | Bar, Adjustable, Spreader, Color (10 - 12" W) | 1 | 1 |
$97.00 |
A ,F |
Create/add to WishlistCreate/add to Wishlist |
25 | 8881181932 | Bar, Adjustable, Spreader, Color (14 - 15" W) | 1 | 1 |
$97.00 |
A ,F |
Create/add to WishlistCreate/add to Wishlist |
25 | 8881181931 | Bar, Adjustable, Spreader, Color (16 - 19" W) | 1 | 1 |
$97.00 |
A ,F |
Create/add to WishlistCreate/add to Wishlist |
26 | 1102013 | Recliner Assembly - Right | 1 | 1 |
$112.00 |
B |
Create/add to WishlistCreate/add to Wishlist |
26 | 1102014 | Recliner Assembly - Left | 1 | 1 |
$112.00 |
B |
Create/add to WishlistCreate/add to Wishlist |
27 | 1102015 | Recliner Back Assembly - Right | 1 | 1 | E |
Create/add to WishlistCreate/add to Wishlist |
|
27 | 1102016 | Recliner Back Assembly - Left | 1 | 1 | E |
Create/add to WishlistCreate/add to Wishlist |
|
1098443 | Spacer, Tube (9/16 x 5/8 x 1/2") | 1 | 1 | C ,D |
Create/add to WishlistCreate/add to Wishlist |
||
1054595 | NLA - Headrest Extension Tube Assembly, Black | 1 | 2 | N/A | D |
Create/add to WishlistCreate/add to Wishlist |
|
8881181852 | Headrest Extension Tube Assembly, Color | 1 | 2 |
$19.00 |
D ,H |
Create/add to WishlistCreate/add to Wishlist |
Assembly Part Notes
Note Code | Definition |
---|---|
A | Includes items 19-24. |
B | Includes items 1-4, 11, 15 - 18. |
C | Tube spacer is placed over non-threaded end of Locking Rod (item #14) before inserting into Tube & Cap Weldment (item #13). |
D | Not Shown. |
E | Includes items 1-16. |
F | Specify 71P Flat Black when ordering. |
G | The Color Tube Cover is not available for color frame models. Must order item #25 as a replacement. |
H | Specify 71P Silver Vein when ordering. |
