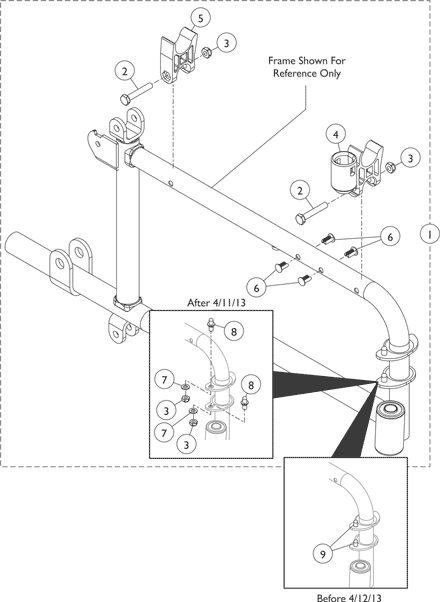

Frames - Side - Hardware - 9000XT Recliner

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1074659

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	Screw, Hex Head (1/4-20 x 1-1/2")	1	4
3	Locknut (1/4-20)	1	8
4	H-Block with Socket Cup	1	2
5	H-Block	1	2
6	NLA - Rivet, Ratchet	1	8
7	Washer, Plain (1/4 x 1/2 x 9/16")	1	4
8	Pin, Hinge	1	4

Kit, Side Frame Hardware, (Pair)

$31.00

Create/add to Wishlist

16720X004

Screw, Hex Head (1/4-20 x 1-1/2")

$10.00

Create/add to Wishlist

60275X000

Locknut (1/4-20)

$10.00

Create/add to Wishlist

1109938

H-Block with Socket Cup

$11.00

Create/add to Wishlist

1107805

H-Block

$8.00

Create/add to Wishlist

1023450

NLA - Rivet, Ratchet

N/A

Create/add to Wishlist

1096781

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
	NLA - Wrench, Allen (3/32")	1	1
15	Cap, Threaded	1	4
15	Washer, Locking Split (#10)	1	4
15	Screw, Socket Button Head Cap, Regulator (8-32 x 3/8")	1	4
15	NLA - Wrench, Allen (3/32")	1	1
	Washer, Locking Split (#10)	1	4
	Washer, Locking Split (#10)	1	4
	Cap, Threaded	1	4
	NLA - Wrench, Allen (3/32")	1	1
	Cap, Threaded	1	4
	Washer, Locking Split (#10)	1	4
	Screw, Socket Button Head Cap, Regulator (8-32 x 3/8")	1	4
	Screw, Socket Button Head Cap, Regulator (8-32 x 3/8")	1	4
	NLA - Wrench, Allen (3/32")	1	1
	Cap, Threaded	1	4
	Washer, Locking Split (#10)	1	4
	Screw, Socket Button Head Cap, Regulator (8-32 x 3/8")	1	4
	NLA - Wrench, Allen (3/32")	1	1
	Cap, Threaded	1	4
	Washer, Locking Split (#10)	1	4
	Screw, Socket Button Head Cap, Regulator (8-32 x 3/8")	1	4
	NLA - Wrench, Allen (3/32")	1	1
	Cap, Threaded	1	4
	Washer, Locking Split (#10)	1	4
	Screw, Socket Button Head Cap, Regulator (8-32 x 3/8")	1	4
	NLA - Wrench, Allen (3/32")	1	1
	Cap, Threaded	1	4
	Washer, Locking Split (#10)	1	4
	Cap, Threaded	1	4
	NLA - Wrench, Allen (3/32")	1	1
	Cap, Threaded	1	4
	Washer, Locking Split (#10)	1	4
	Screw, Socket Button Head Cap, Regulator (8-32 x 3/8")	1	4
	Screw, Socket Button Head Cap, Regulator (8-32 x 3/8")	1	4
	Screw, Socket Button Head Cap, Regulator (8-32 x 3/8")	1	4
	NLA - Wrench, Allen (3/32")	1	1
	Washer, Locking Split (#10)	1	4
	NLA - Wrench, Allen (3/32")	1	1
	Screw, Socket Button Head Cap, Regulator (8-32 x 3/8")	1	4
	Cap, Threaded	1	4

Kit, Hinge Pin Replacement Hardware (Pair)

$26.00

C ,C1

Create/add to Wishlist

1058139

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
22	Cup, Socket Pivot	1	1
23	NLA - Screw, Hex Head (1/4-20 x 1-3/8")	1	1
24	Locknut (1/4-20)	1	1
25	Cup, Socket Pivot	1	1
26	Locknut (1/4-20)	1	1
27	NLA - Screw, Hex Head (1/4-20 x 1-3/8")	1	1
22	NLA - Screw, Hex Head (1/4-20 x 1-3/8")	1	1
23	Locknut (1/4-20)	1	1
15	NLA - Screw, Hex Head (1/4-20 x 1-3/8")	1	1
16	Cup, Socket Pivot	1	1
17	Locknut (1/4-20)	1	1
15	NLA - Screw, Hex Head (1/4-20 x 1-3/8")	1	1
16	Cup, Socket Pivot	1	1
17	Locknut (1/4-20)	1	1
12	Cup, Socket Pivot	1	1
13	NLA - Screw, Hex Head (1/4-20 x 1-3/8")	1	1
14	Locknut (1/4-20)	1	1
13	NLA - Screw, Hex Head (1/4-20 x 1-3/8")	1	1
14	Cup, Socket Pivot	1	1
15	Locknut (1/4-20)	1	1
14	NLA - Screw, Hex Head (1/4-20 x 1-3/8")	1	1
15	Cup, Socket Pivot	1	1
16	Locknut (1/4-20)	1	1
22	Cup, Socket Pivot	1	1
23	NLA - Screw, Hex Head (1/4-20 x 1-3/8")	1	1
24	Locknut (1/4-20)	1	1
21	Cup, Socket Pivot	1	1
13	NLA - Screw, Hex Head (1/4-20 x 1-3/8")	1	1
14	Cup, Socket Pivot	1	1
15	Locknut (1/4-20)	1	1
	Cup, Socket Pivot	1	1
	NLA - Screw, Hex Head (1/4-20 x 1-3/8")	1	1
	Locknut (1/4-20)	1	1
	Cup, Socket Pivot	1	1
	NLA - Screw, Hex Head (1/4-20 x 1-3/8")	1	1
	Locknut (1/4-20)	1	1
	Locknut (1/4-20)	1	1
	Cup, Socket Pivot	1	1
	NLA - Screw, Hex Head (1/4-20 x 1-3/8")	1	1
25	Cup, Socket Pivot	1	1
26	NLA - Screw, Hex Head (1/4-20 x 1-3/8")	1	1
27	Locknut (1/4-20)	1	1
21	Cup, Socket Pivot	1	1
22	NLA - Screw, Hex Head (1/4-20 x 1-3/8")	1	1
23	Locknut (1/4-20)	1	1
21	Locknut (1/4-20)	1	1
22	Cup, Socket Pivot	1	1
23	NLA - Screw, Hex Head (1/4-20 x 1-3/8")	1	1
21	Locknut (1/4-20)	1	1
22	Cup, Socket Pivot	1	1
23	NLA - Screw, Hex Head (1/4-20 x 1-3/8")	1	1
25	Cup, Socket Pivot	1	1
26	NLA - Screw, Hex Head (1/4-20 x 1-3/8")	1	1
27	Locknut (1/4-20)	1	1
13	NLA - Screw, Hex Head (1/4-20 x 1-3/8")	1	1
14	Cup, Socket Pivot	1	1
15	Locknut (1/4-20)	1	1
24	NLA - Screw, Hex Head (1/4-20 x 1-3/8")	1	1
25	Locknut (1/4-20)	1	1
23	Cup, Socket Pivot	1	1

Kit, Armrest Hardware

$16.00

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes items 2 - 8.
B	Not Shown.
C	Hinge Pin Replacement Hardware Kit is only used on Side Frames w/ welded-on Hinge Pins manufactured before 4/12/13. Side Frames after 4/11/13 have Hinge Pin Saddle Plates w/ square holes to attach REMOVABLE Non-Welded Hinge Pins.
C1	Side Frames ordered after 4/11/13 require new Side Frame Hardware that will include the removable Hinge Pins also. Removable Hinge Pins are not sold separately.

Catalog Literature

Parts Books for 9000SL 9000XT 9000XDT 9000XT Recliner
