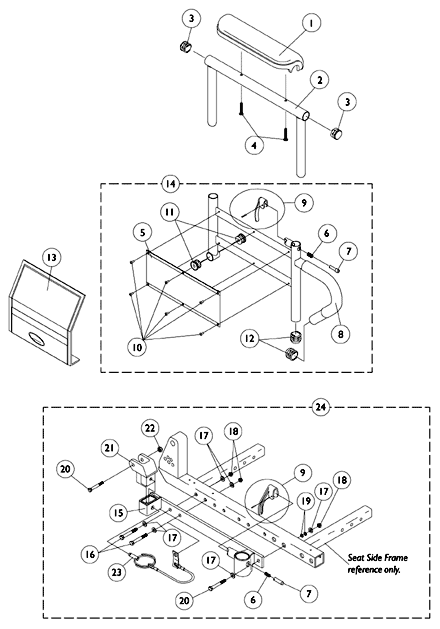

Arms - Basic Tilt & Tilt Only (After 10/14/98)

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1117328	Kit, Arm Pad w/ Screws, Full Length, Urethane Waterfall, Black (13" L x 2-5/8" W)	1	1	$66.00	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	1110818	Kit, Arm Pad w/ Screws, Full Length, Urethane Waterfall, Black (13" L x 2-5/8" W) (Pair)	2	1	$122.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	1117327	Kit, Arm Pad w/ Screws, Desk Length, Urethane Waterfall, Black (9" L x 2-5/8" W)	1	1	$47.00	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	1110817	Kit, Arm Pad w/ Screws, Desk Length, Urethane Waterfall, Black (9" L x 2-5/8" W) (Pair)	2	1	$122.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1071253	Arm Tube Assembly w/ Plug Buttons, Full Length, Black - Right/Left	1	1	$53.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1070859	Arm Tube Assembly w/ Plug Buttons, Desk Length, Black - Right/Left	1	1	$53.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1027095	Plug Button, Black (7/8")	1	2	$9.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1055949	Package, Screw, Phillips Pan Head (#10-32 x 1-3/8")	2	1	$13.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1094270	NLA - Package, Screw, Phillips Pan Head (#10-32 x 1-1/4")	2	1	N/A	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1064130	NLA - Guard, Clothing	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	47471X074	Spring, Arm Lock	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1028594	Pin, Arm Lock, Black	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1032244	Grip, Foam Hand (9" L)	1	1	$2.50		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1090768	Kit, Lock Handle w/Rivets (Pair)	2	1	$16.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1028645	Rivet	1	6	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1065936	Plug, Pivot	1	2	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1067734	Plug Button, Black (5/8")	1	2	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	1035065	Cover, Clothing Guard w/ Pocket, FXDESK & ADJFULL/ADJDESK	1	1	$98.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
14	1068416	Arm Base Assembly, Black - Right (16-19" D)	1	1	$94.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
14	1068417	Arm Base Assembly, Black - Left (16-19" D)	1	1	$94.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
14	1068418	Arm Base Assembly, Black - Right (20" and Deeper)	1	1	$94.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
14	1068419	Arm Base Assembly, Black - Left (20" and Deeper)	1	1	$94.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
14	1067761	Arm Base Assembly, 1" Lower, Black - Right (16-19" D)	1	1	$94.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
14	1067762	Arm Base Assembly, 1" Lower, Black - Left (16-19" D)	1	1	$94.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
14	1067755	NLA - Arm Base Assembly, 1" Lower, Black - Right (20" and Deeper)	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
14	1067756	NLA - Arm Base Assembly, 1" Lower, Black - Left (20" and Deeper)	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
15	1078053	NLA - Receptacle, Flip Back Arm, Black - Right	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
15	1078052	NLA - Receptacle, Flip Back Arm, Black - Left	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
16	1024793	NLA - Screw, Hex Head (1/4-20 x 1-3/4")	1	3	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
17	0050406	Washer, Flat (1/4 x 5/8 x 1/16")	1	6	$7.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
18	7930333	Locknut (1/4-20)	25	3	$44.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
19	0050506	NLA - Lockwasher, High Collar, Split (1/4")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
20	1030949	Screw, Hex Head (1/4-20 x 1-1/2")	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
21	1068025	Clevis, Pivot	1	1	$16.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
22	7930323	NLA - Package, Locknut (1/4-20)	25	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
23	1068039	Pin, Pull	1	1	$12.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
24	1081427	NLA - Hardware, Armrest Mounting - Right	1	1	N/A	C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
24	1081428	NLA - Hardware, Armrest Mounting - Left	1	1	N/A	C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	As of 1/3/02 upholstered waterfall armpads were replaced with black urethane waterfall armpads. Order in pairs with screws for chairs serviced before 1/3/02.
B	For Black Urethane Watefall Arm Pads only
C	Includes items 6, 7, 9 and 15-23

Catalog Literature

Parts Books for Tarsys® Basic Tilt, Tilt Only, Recline 4XP, Recline Only, Tilt/Recline
