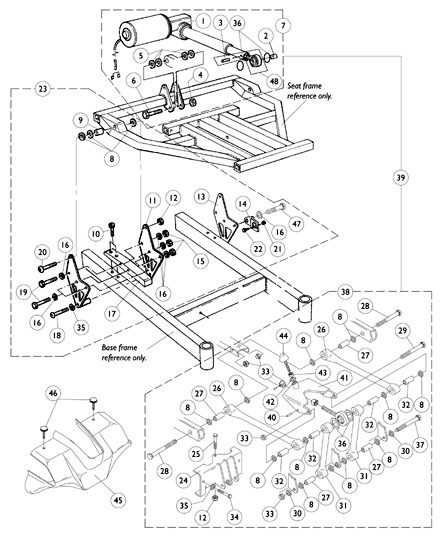

Frames - Seat Attaching Hardware - Includes Tilt Actuator - Basic Tilt & Tilt Only

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	0308500	NLA - Actuator Motor Assembly, Large (5" Stroke)	1	1	N/A	E	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	0060500	Bushing (3/8 x 1/2 x 5/8")	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1028848	NLA - Pin, Roll (1/8" x 7/8")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	0054106	NLA - Locknut, High Profile (3/8-16)	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	0053900	NLA - Washer, Nylon (3/8 x 13/16 x 1/16")	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1106223	Screw, Socket Head (3/8-16 x 2-1/2")	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1072786	NLA - Actuator Motor w/ Hardware, Large (5" Stroke)	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	0055800	NLA - Washer, Nylon (7/16 x 3/4 x 3/32")	1	16	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	0060300	NLA - Bushing, Bronze (5/16 x 7/16 x 1-1/4")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	0140506	NLA - Screw, Socket Head w/ Thread Lock (5/16-18 x 1")	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	0115102	NLA - Plate, Seat Frame Inner Mounting - Right	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	0115202	NLA - Plate, Seat Frame Inner Mounting - Left	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	0054906	Locknut, High Profile (5/16-18)	1	2	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	0115302	NLA - Plate, Seat Frame Outer Mounting - Right	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	0115402	NLA - Plate, Seat Frame Outer Mounting - Left	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
14	0190102	NLA - Bracket, Connector, Black	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
15	7930333	Locknut (1/4-20)	25	6	$44.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
16	0050406	Washer, Flat (1/4 x 5/8 x 1/16")	1	12	$7.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
17	0115024	NLA - Bar, Mounting	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
18	0140406	NLA - Screw, Socket Head, Cap (5/16-18 x 1-1/2")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
19	0052306	NLA - Screw, Hex Head (1/4-20 x 2-1/4")	1	5	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
20	0055506	NLA - Screw, Button Head, Socket (5/16-18 x 2")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
21	0143205	NLA - Locknut, Low Profile (#6-32)	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
22	313329	NLA - Screw, Phillips Pan Head (#6-32 x 1/2")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
23	1072747	Plates, Seat Frame Mounting w/ Hardware	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
24	0115502	Link, Mounting Plate, Black	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
25	0139806	NLA - Screw, Hex Head (5/16-18 x 3")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
26	0115624	Link, Tilt, Black - Upper	1	2			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
27	0120300	Bushing (3/8 x 1/2 x 7/8")	1	4			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
28	1106223	Screw, Socket Head (3/8-16 x 2-1/2")	1	2	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
29	0140306	NLA - Screw, Hex Head (3/8-16 x 4-1/2")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
30	0140006	Washer, Steel (13/32 x 5/8 x 1/32")	1	2			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
31	0115724	Link, Tilt, Black - Lower	1	2			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
32	0120100	Bushing (3/8 x 1/2 x 3/4")	1	4			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
33	0054106	NLA - Locknut, High Profile (3/8-16)	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
34	0139606	NLA - Screw, Hex Head (5/16-18 x 1")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
35	1072692	NLA - Lockwasher, Split (5/16")	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
36	0140600	Washer, Rubber (13/16 x 13/32 x 3/32)	1	2			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
37	0140206	NLA - Screw, Hex Head (3/8-16 x 3-1/2")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
38	1072809	Hardware, Seat Frame Mounting	1	1		D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
39	1072746	NLA - Hardware, Tilt Actuator w/ Tilt Mounting	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
40	1077357	NLA - Pin, Roll (3/16 x 1-1/8" Long)	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
41	0211102	Stop, Tilt, Black	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
42	1077358	Lockwasher, Split (3/8-16)	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
43	1077359	Nut, Hex (3/8-16)	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
44	0225100	NLA - Bumper, Tilt	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
45	0309019	NLA - Cover, Controller	1	1	N/A	C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
46	1077365	Knob, Thumb Screw (5/16-18 x 1")	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
47	0052206	Screw, Hex Head (1/4-20 x 2-1/2")	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
48	0313900	NLA - Rod, End with Locknut and Roll Pin	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
48	1077197	Rod, End w/ Locknut and Roll Pin	1	1		B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	SKF Actuator
B	Motion Systems Actuator
C	Tarsys/Storm
D	Tilt
E	No longer available as a service part individually. See item 7 part #1072786 as a replacement.
