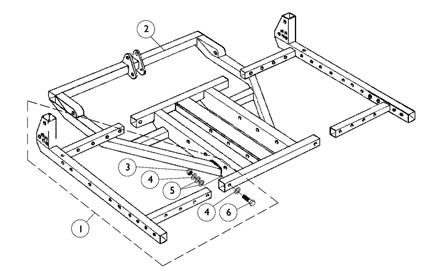

Frames - Seat & Hardware - Basic Tilt & Tilt Only or Tilt/Recline & Recline Only
| Item | Part/Kit | Part/Kit Description | Qty/Pkg | Qty/Asbly | MSRP | View Parts Notes | |||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 |
See Chart
Added to Cart
Create/add to WishlistCreate/add to Wishlist |
Seat Side Frame and Hardware | N/A | N/A | N/A | A |
Create/add to WishlistCreate/add to Wishlist |
||||||||||||||||||||||||||||||||||||||||
| 2 | 0114702 | NLA - Frame, Seat, Black | 1 | 1 | N/A | B |
Create/add to WishlistCreate/add to Wishlist |
||||||||||||||||||||||||||||||||||||||||
| 2 | 0208902 | NLA - Frame, Seat, Black | 1 | 1 | N/A | C |
Create/add to WishlistCreate/add to Wishlist |
||||||||||||||||||||||||||||||||||||||||
| 3 | 1025736 | Locknut (1/4-20) | 1 | 2 |
$7.20 |
Create/add to WishlistCreate/add to Wishlist |
|||||||||||||||||||||||||||||||||||||||||
| 4 | 0050406 | Washer, Flat (1/4 x 5/8 x 1/16") | 1 | 4 |
$7.00 |
Create/add to WishlistCreate/add to Wishlist |
|||||||||||||||||||||||||||||||||||||||||
| 5 | 0050506 | NLA - Lockwasher, High Collar, Split (1/4") | 1 | 4 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|||||||||||||||||||||||||||||||||||||||||
| 6 | 0051006 | NLA - Screw, Hex Head Full Thread (1/4-20 x 1-1/2") | 1 | 2 | N/A |
Create/add to WishlistCreate/add to Wishlist |
Assembly Part Notes
| Note Code | Definition |
|---|---|
| A | Includes seat side frame and items 3-6 |
| B | 14" - 20" Wide |
| C | 21" - 24" Wide |
