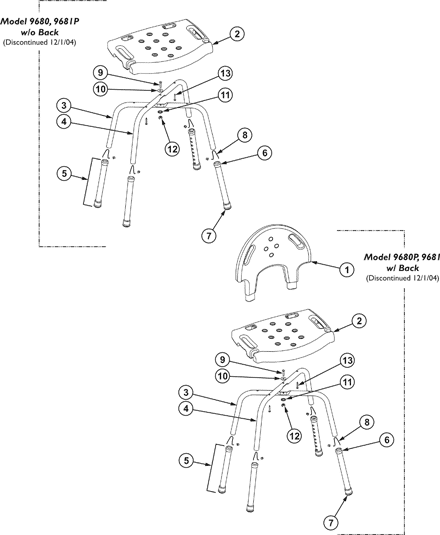

Shower Chair - Large Blow Molded - Model 9680, 9680P, 9681 & 9681P

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1060375

NLA - Back

N/A

A ,C

Create/add to Wishlist

1060376

NLA - Seat

N/A

Create/add to Wishlist

1061419

NLA - Leg, Bottom

N/A

Create/add to Wishlist

1079315

NLA - Leg, Bottom

N/A

Create/add to Wishlist

1061418

NLA - Leg, Top

N/A

Create/add to Wishlist

1079314

NLA - Leg, Top

N/A

Create/add to Wishlist

1065346

NLA - Leg Extension Assembly

N/A

Create/add to Wishlist

1063124

Anti-Rattle, Grey (1-1/8")

Create/add to Wishlist

1057797

Tip, Rubber, Light Grey (1-1/8")

$8.00

Create/add to Wishlist

1094945

Button, Snap

$8.00

Create/add to Wishlist

1044142

Screw, Phillips Pan Head (1/4-20 x 1-3/8")

Create/add to Wishlist

1008882

Locknut (1/4-20)

$8.00

Create/add to Wishlist

1021944

NLA - Screw, Slotted Hex Washer Head (1/4-14 x 1-1/2")

N/A

Create/add to Wishlist

1074248

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
9	Screw, Phillips Pan Head (1/4-20 x 1-3/8")	1	1
12	Locknut (1/4-20)	1	1
13	NLA - Screw, Slotted Hex Washer Head (1/4-14 x 1-1/2")	1	4

NLA - Kit, Hardware

N/A

A ,D ,J

Create/add to Wishlist

1074249

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
9	Screw, Phillips Pan Head (1/4-20 x 1-3/8")	1	1
10	NLA - Washer, Steel Flat (1/4 x 5/8 x 1/16")	1	1
11	NLA - Washer, External Tooth Lock (1-1/4")	1	1
12	NLA - Nut, Wing (1/4-20)	1	1
8	NLA - Nut, Wing (1/4-20)	1	1
9	NLA - Washer, External Tooth Lock (1-1/4")	1	1
10	Screw, Phillips Pan Head (1/4-20 x 1-3/8")	1	1
11	NLA - Screw, Slotted Hex Washer Head (1/4-14 x 1-1/2")	1	4
12	NLA - Washer, Steel Flat (1/4 x 5/8 x 1/16")	1	1
11	NLA - Screw, Slotted Hex Washer Head (1/4-14 x 1-1/2")	1	4
12	NLA - Nut, Wing (1/4-20)	1	1
13	NLA - Washer, Steel Flat (1/4 x 5/8 x 1/16")	1	1
14	Screw, Phillips Pan Head (1/4-20 x 1-3/8")	1	1
15	NLA - Washer, External Tooth Lock (1-1/4")	1	1
11	NLA - Washer, External Tooth Lock (1-1/4")	1	1
12	Screw, Phillips Pan Head (1/4-20 x 1-3/8")	1	1
13	NLA - Screw, Slotted Hex Washer Head (1/4-14 x 1-1/2")	1	4
14	NLA - Washer, Steel Flat (1/4 x 5/8 x 1/16")	1	1
15	NLA - Nut, Wing (1/4-20)	1	1
13	NLA - Screw, Slotted Hex Washer Head (1/4-14 x 1-1/2")	1	4

NLA - Kit, Hardware

N/A

B ,C ,K

Create/add to Wishlist

1068492

NLA - Back With Hardware

N/A

Create/add to Wishlist

1064507

NLA - Plug, End

N/A

H ,I

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	To be used with Model 9681.
B	To be used with Model 9681P.
C	To be used with Model 9680P.
D	To be used with Model 9680.
E	Includes Items 6 and 7.
F	Before 11/2/98.
G	After 11/1/98.
H	Not Shown.
I	Used with Back before 5/15/97.
J	Kit Includes Items 9, 12 and 13.
K	Kit Includes Items 9, 10, 11, 12 and 13.
