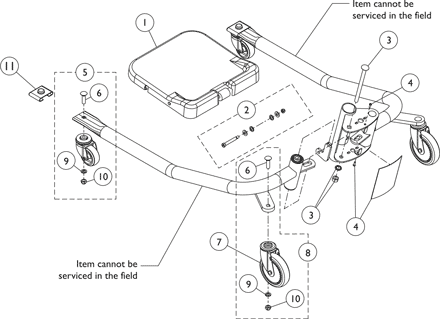

Base Assembly - Get-U-Up - GHS350

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1148212

Footplate Assembly, Beige

$121.00

Create/add to Wishlist

1152594

Part/Kit Description	Qty/Pkg	Qty/Asbly
NLA - Screw, Shoulder Hex Socket Head (3/8 x 1-1/4", 5/16-18)	1	1
Washer, Nylon (3/4 x 1/2 x 1/16")	1	4
NLA - Screw, Shoulder Hex Socket Head (3/8 x 1-1/4", 5/16-18)	1	1
NLA - Washer (3/8 x 13/16 x 1/16")	1	4
Screw, Shoulder Hex Socket Head (3/8" x 2-1/4", 5/16-18)	1	2
Washer, Nylon (3/4 x 1/2 x 1/16")	1	4
NLA - Locknut (5/16-18)	1	3
NLA - Washer (3/8 x 13/16 x 1/16")	1	4
NLA - Locknut (5/16-18)	1	3
Screw, Shoulder Hex Socket Head (3/8" x 2-1/4", 5/16-18)	1	2

Kit, Boom Hardware

$16.00

Create/add to Wishlist

1123448

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
20	NLA - Bolt, Carriage (1/2-13 x 6-3/4")	1	1
	NLA - Washer, Lock (1/2 x 7/8 x 1/32")	1	1
	NLA - Bolt, Carriage (1/2-13 x 6-3/4")	1	1
21	NLA - Washer, Lock (1/2 x 7/8 x 1/32")	1	1
	NLA - Nut (1/2-13)	1	1
22	NLA - Nut (1/2-13)	1	1
20	NLA - Bolt, Carriage (1/2-13 x 6-3/4")	1	1
21	NLA - Washer, Lock (1/2 x 7/8 x 1/32")	1	1
22	NLA - Nut (1/2-13)	1	1

Kit, Base Bolt

$9.00

Create/add to Wishlist

1152596

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
	Cover, Plate	1	1
	Screw (#8-18 x 5/8")	1	2

NLA - Kit, Plate Cover with Screws

N/A

Create/add to Wishlist

1152591

Part/Kit Description	Qty/Pkg	Qty/Asbly
NLA - Washer, Lock (7/16 x 25/32 x 1/64")	1	1
NLA - Bolt, Carriage (7/16-14 x 1-3/4")	1	1
NLA - Locknut (7/16-14)	1	1
Caster Assembly, Swivel (3")	1	1

Kit, 3" Caster with Hardware

$49.00

Create/add to Wishlist

1026474

NLA - Bolt, Carriage (7/16-14 x 1-3/4")

N/A

Create/add to Wishlist

1123536

NLA - Caster Assembly, Swivel (5")

N/A

Create/add to Wishlist

1123449

Part/Kit Description	Qty/Pkg	Qty/Asbly
Instruction Sheet, Installation	1	1
Locknut (3/8-16)	1	2
Bolt, Round Head Square Neck (7/16-14 x 1-1/2")	1	2
NLA - Washer, Lock (7/16 x 25/32 x 1/64")	1	2
Wheel (5")	1	2
NLA - Washer, Lock (7/16 x 25/32 x 1/64")	1	2
Locknut (7/16-14)	1	2
Screw, Hex Head Cap (3/8-16 x 2-1/4")	1	2
Locknut (3/8-16)	1	2
Locknut (7/16-14)	1	2
Fork, Swivel	1	2
Bolt, Round Head Square Neck (7/16-14 x 1-1/2")	1	2
Locknut (7/16-14)	1	2
NLA - Washer, Lock (7/16 x 25/32 x 1/64")	1	2
Instruction Sheet, Installation	1	1
Wheel (5")	1	2
Bolt, Round Head Square Neck (7/16-14 x 1-1/2")	1	2
Instruction Sheet, Installation	1	1
Fork, Swivel	1	2
Wheel (5")	1	2
Locknut (3/8-16)	1	2
Screw, Hex Head Cap (3/8-16 x 2-1/4")	1	2
Fork, Swivel	1	2
Screw, Hex Head Cap (3/8-16 x 2-1/4")	1	2

Kit, Caster, Swivel (Pair)

$84.00

Create/add to Wishlist

1014808

NLA - Washer, Lock (7/16 x 25/32 x 1/64")

N/A

Create/add to Wishlist

1024297

NLA - Locknut (7/16-14)

N/A

Create/add to Wishlist

1123442

Part/Kit Description	Qty/Pkg	Qty/Asbly
NLA - Cap, Mast	1	1
NLA - Cap, Mast	1	1
Cap, End, Grey (2 x 2-1/2")	2	1
Cap, End, Grey (2 x 2-1/2")	2	1
NLA - Plug Button, Metal, Chrome (1-3/4")	2	1
Cap, End, Grey (2 x 2-1/2")	1	2
Cap, End, Grey (2 x 2-1/2")	2	1
NLA - Plug Button, Metal, Chrome (1-3/4")	2	1
NLA - Cap, Mast	1	1
NLA - Cap, Mast	1	1
NLA - Plug Button, Metal, Chrome (1-3/4")	2	1
NLA - Plug Button, Metal, Chrome (1-3/4")	1	2

NLA - Kit, Plugs and Caps

N/A

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	The Shoulder Screw (3/8 x 1 1/4, 5/16-18) that is included in this kit is used for the Arm and Horn Assembly. See category titled, "Arm & Horn Assembly - Get-U-Up - GHS350". Use (1) Shoulder Screw (3/8-14 x 2 1/4) to mount the footplate.
B	No longer available. See 1123449 for replacement.
C	Includes (2) Plug Buttons, (2) leg end caps and (1) Mast Cap. See category titled, "Mast Assembly - Get - U - Up - GHS350" for Plug Button. Single mast cap not used on this model and may be discarded.
