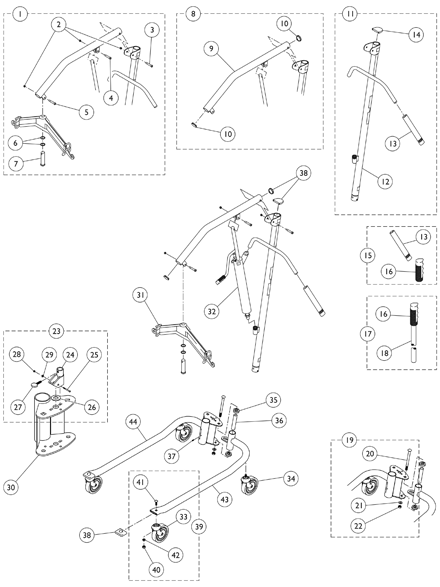

Hydraulic Patient Lift - 9805

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1123443

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	NLA - Locknut (5/16-18)	3	1
5	NLA - Screw, Shoulder Hex Socket Head (3/8 x 1-1/4", 5/16-18)	1	1
4	Screw, Shoulder Hex Socket Head (3/8" x 1-1/2", 5/16-18)	1	1
2	NLA - Locknut (5/16-18)	3	1
3	Screw, Shoulder Hex Socket Head (3/8" x 2-1/4", 5/16-18)	1	1
7	Pin (1-1/4" x 4-1/4")	1	1
5	NLA - Screw, Shoulder Hex Socket Head (3/8 x 1-1/4", 5/16-18)	1	1
6	Washer, Nylon (1-1/64 x 1-11/32 x 1/16")	2	1
6	Washer, Nylon (1-1/64 x 1-11/32 x 1/16")	2	1
7	Pin (1-1/4" x 4-1/4")	1	1
4	Screw, Shoulder Hex Socket Head (3/8" x 1-1/2", 5/16-18)	1	1
3	Screw, Shoulder Hex Socket Head (3/8" x 2-1/4", 5/16-18)	1	1

Kit, Hardware, Boom

$48.00

Create/add to Wishlist

1123450

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
9	NLA - Boom, Chrome	1	1
10	NLA - Plug Button, Metal, Chrome (1-3/4")	2	1

Kit, Boom

$76.00

Create/add to Wishlist

1123451

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
12	Mast, Chrome	1	1
14	NLA - Cap, Mast	1	1
13	Grip, Hand - 9805	2	1

Kit, Mast

$145.00

Create/add to Wishlist

1123444

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
13	Grip, Hand - 9805	2	1
20	Grip, Hand - 9805	2	1
17	NLA - Grip, Handle - 9805	1	1
16	NLA - Grip, Handle - 9805	1	1
16	NLA - Grip, Handle - 9805	1	1
13	Grip, Hand - 9805	2	1

Kit, Handgrip

$9.00

Create/add to Wishlist

1123445

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
16	NLA - Grip, Handle - 9805	1	1
18	Handle, Shifter, Chrome	1	1

Kit, Shifter

$44.00

E ,G

Create/add to Wishlist

1123448

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
20	NLA - Bolt, Carriage (1/2-13 x 6-3/4")	1	1
	NLA - Washer, Lock (1/2 x 7/8 x 1/32")	1	1
	NLA - Bolt, Carriage (1/2-13 x 6-3/4")	1	1
21	NLA - Washer, Lock (1/2 x 7/8 x 1/32")	1	1
	NLA - Nut (1/2-13)	1	1
22	NLA - Nut (1/2-13)	1	1
20	NLA - Bolt, Carriage (1/2-13 x 6-3/4")	1	1
21	NLA - Washer, Lock (1/2 x 7/8 x 1/32")	1	1
22	NLA - Nut (1/2-13)	1	1

Kit, Base Bolt

$9.00

Create/add to Wishlist

1052250

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
24	Lock, Cam, Chrome	1	1
25	NLA - Screw, Socket Button Head (1/4-20 x 1-7/16")	1	1
	NLA - Instruction Sheet	1	1
26	NLA - Bushing (5/8 x 1-1/8 x 5/16")	1	1
27	NLA - Screw, Thumb (1/4-20 x 1")	1	1
28	Locknut (1/4-20)	1	1
29	NLA - Washer, Flat (1/4 x 1/2 x 1/16")	1	1

Kit, Cam Lock

$81.00

Create/add to Wishlist

90200X000

NLA - Socket - Chrome

N/A

Create/add to Wishlist

1095642

Bar, Swivel with Pad, Chrome

$138.00

Create/add to Wishlist

9099

NLA - Pump

N/A

Create/add to Wishlist

1123447

Part/Kit Description	Qty/Pkg	Qty/Asbly
Screw, Hex Head Cap w/ Patch (7/16-14 x 1-1/2")	1	2
NLA - Washer, Lock (7/16 x 25/32 x 1/64")	1	2
Wheel (5")	1	2
Fork, Swivel	1	2
NLA - Washer, Lock (7/16 x 25/32 x 1/64")	1	2
Wheel (5")	1	2
Screw, Hex Head Cap w/ Patch (7/16-14 x 1-1/2")	1	2
Locknut (3/8-16)	1	2
Fork, Swivel	1	2
Screw, Hex Head Cap (3/8-16 x 2-1/4")	1	2
Instruction Sheet, Installation	1	1
Screw, Hex Head Cap (3/8-16 x 2-1/4")	1	2
Locknut (3/8-16)	1	2
Instruction Sheet, Installation	1	1

Kit, Caster, Rear (Pair)

$80.00

Create/add to Wishlist

90068X000

Bearing, Flange

$11.00

Create/add to Wishlist

90071X000

NLA - Spacing, Bearing

N/A

Create/add to Wishlist

60284X001

Screw, Socket Head (1/4-20 x 1/2")

$10.00

Create/add to Wishlist

1123442

Part/Kit Description	Qty/Pkg	Qty/Asbly
NLA - Cap, Mast	1	1
NLA - Cap, Mast	1	1
Cap, End, Grey (2 x 2-1/2")	2	1
Cap, End, Grey (2 x 2-1/2")	2	1
NLA - Plug Button, Metal, Chrome (1-3/4")	2	1
Cap, End, Grey (2 x 2-1/2")	1	2
Cap, End, Grey (2 x 2-1/2")	2	1
NLA - Plug Button, Metal, Chrome (1-3/4")	2	1
NLA - Cap, Mast	1	1
NLA - Cap, Mast	1	1
NLA - Plug Button, Metal, Chrome (1-3/4")	2	1
NLA - Plug Button, Metal, Chrome (1-3/4")	1	2

NLA - Kit, Plugs and Caps

N/A

Create/add to Wishlist

1123449

Part/Kit Description	Qty/Pkg	Qty/Asbly
Instruction Sheet, Installation	1	1
Locknut (3/8-16)	1	2
Bolt, Round Head Square Neck (7/16-14 x 1-1/2")	1	2
NLA - Washer, Lock (7/16 x 25/32 x 1/64")	1	2
Wheel (5")	1	2
NLA - Washer, Lock (7/16 x 25/32 x 1/64")	1	2
Locknut (7/16-14)	1	2
Screw, Hex Head Cap (3/8-16 x 2-1/4")	1	2
Locknut (3/8-16)	1	2
Locknut (7/16-14)	1	2
Fork, Swivel	1	2
Bolt, Round Head Square Neck (7/16-14 x 1-1/2")	1	2
Locknut (7/16-14)	1	2
NLA - Washer, Lock (7/16 x 25/32 x 1/64")	1	2
Instruction Sheet, Installation	1	1
Wheel (5")	1	2
Bolt, Round Head Square Neck (7/16-14 x 1-1/2")	1	2
Instruction Sheet, Installation	1	1
Fork, Swivel	1	2
Wheel (5")	1	2
Locknut (3/8-16)	1	2
Screw, Hex Head Cap (3/8-16 x 2-1/4")	1	2
Fork, Swivel	1	2
Screw, Hex Head Cap (3/8-16 x 2-1/4")	1	2

Kit, Caster, Swivel (Pair)

$84.00

Create/add to Wishlist

1110421

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
	Caster Assembly, Swivel w/ Brake (5")	1	2
	Caster Assembly, Swivel w/ Brake (5")	1	2
	Bushing (15/32 x 1-1/16 x 9/32")	1	2
	Instruction Sheet	1	1
	Instruction Sheet	1	1
	Caster Assembly, Swivel w/ Brake (5")	1	2
	Bushing (15/32 x 1-1/16 x 9/32")	1	2
	Bushing (15/32 x 1-1/16 x 9/32")	1	2
	Bushing (15/32 x 1-1/16 x 9/32")	1	2
	Instruction Sheet	1	1
	Instruction Sheet	1	1
3	Bushing (15/32 x 1-1/16 x 9/32")	1	2
	Bushing (15/32 x 1-1/16 x 9/32")	1	2
	Instruction Sheet	1	1
	Caster Assembly, Swivel w/ Brake (5")	1	2
	Bushing (15/32 x 1-1/16 x 9/32")	1	2
	Instruction Sheet	1	1
2	Caster Assembly, Swivel w/ Brake (5")	1	2
	Bushing (15/32 x 1-1/16 x 9/32")	1	2
	Instruction Sheet	1	1
	Bushing (15/32 x 1-1/16 x 9/32")	1	2
	Instruction Sheet	1	1
	Caster Assembly, Swivel w/ Brake (5")	1	2
	Instruction Sheet	1	1
	Caster Assembly, Swivel w/ Brake (5")	1	2
	Instruction Sheet	1	1
	Caster Assembly, Swivel w/ Brake (5")	1	2
	Bushing (15/32 x 1-1/16 x 9/32")	1	2
	Instruction Sheet	1	1
	Instruction Sheet	1	1
	Caster Assembly, Swivel w/ Brake (5")	1	2
	Caster Assembly, Swivel w/ Brake (5")	1	2
	Caster Assembly, Swivel w/ Brake (5")	1	2
	Caster Assembly, Swivel w/ Brake (5")	1	2
	Bushing (15/32 x 1-1/16 x 9/32")	1	2
	Caster Assembly, Swivel w/ Brake (5")	1	2
	Bushing (15/32 x 1-1/16 x 9/32")	1	2
	Instruction Sheet	1	1
	Bushing (15/32 x 1-1/16 x 9/32")	1	2

Kit, Caster Assembly, Swivel w/ Brake (5") (Pair)

$99.00

A ,F

Create/add to Wishlist

1024283

Leg, Chrome - Left

$88.00

Create/add to Wishlist

1024282

Leg, Chrome - Right

$88.00

Create/add to Wishlist

1060539

Part/Kit Description	Qty/Pkg	Qty/Asbly
Screw, Shoulder Hex Socket Head (3/8" x 2-1/4", 5/16-18)	1	1
NLA - Plug Button, Metal, Chrome (1-3/4")	1	2
NLA - Boom, Chrome	1	1
NLA - Locknut (5/16-18)	1	3
NLA - Instruction Sheet	1	1
Bar, Swivel with Pad, Chrome	1	1
Screw, Shoulder Hex Socket Head (3/8" x 1-1/2", 5/16-18)	1	1
NLA - Screw, Shoulder Hex Socket Head (3/8 x 1-1/4", 5/16-18)	1	1
Pin (1-1/4" x 4-1/4")	1	1
Washer, Nylon (1-1/64 x 1-11/32 x 1/16")	1	2

NLA - Kit, Boom Retro Fit

N/A

A ,G ,I

Create/add to Wishlist

1143629

Part/Kit Description	Qty/Pkg	Qty/Asbly
Bar, Pad	1	1
Bar, Hanger	1	1
Bar, Pad	1	1
Bar, Pad	1	1
Bar, Hanger	1	1
Bar, Hanger	1	1

Kit, Hanger Bar w/ Latches - Retrofit

$173.00

A ,C ,D

Create/add to Wishlist

1110421

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
	Caster Assembly, Swivel w/ Brake (5")	1	2
	Caster Assembly, Swivel w/ Brake (5")	1	2
	Bushing (15/32 x 1-1/16 x 9/32")	1	2
	Instruction Sheet	1	1
	Instruction Sheet	1	1
	Caster Assembly, Swivel w/ Brake (5")	1	2
	Bushing (15/32 x 1-1/16 x 9/32")	1	2
	Bushing (15/32 x 1-1/16 x 9/32")	1	2
	Bushing (15/32 x 1-1/16 x 9/32")	1	2
	Instruction Sheet	1	1
	Instruction Sheet	1	1
3	Bushing (15/32 x 1-1/16 x 9/32")	1	2
	Bushing (15/32 x 1-1/16 x 9/32")	1	2
	Instruction Sheet	1	1
	Caster Assembly, Swivel w/ Brake (5")	1	2
	Bushing (15/32 x 1-1/16 x 9/32")	1	2
	Instruction Sheet	1	1
2	Caster Assembly, Swivel w/ Brake (5")	1	2
	Bushing (15/32 x 1-1/16 x 9/32")	1	2
	Instruction Sheet	1	1
	Bushing (15/32 x 1-1/16 x 9/32")	1	2
	Instruction Sheet	1	1
	Caster Assembly, Swivel w/ Brake (5")	1	2
	Instruction Sheet	1	1
	Caster Assembly, Swivel w/ Brake (5")	1	2
	Instruction Sheet	1	1
	Caster Assembly, Swivel w/ Brake (5")	1	2
	Bushing (15/32 x 1-1/16 x 9/32")	1	2
	Instruction Sheet	1	1
	Instruction Sheet	1	1
	Caster Assembly, Swivel w/ Brake (5")	1	2
	Caster Assembly, Swivel w/ Brake (5")	1	2
	Caster Assembly, Swivel w/ Brake (5")	1	2
	Caster Assembly, Swivel w/ Brake (5")	1	2
	Bushing (15/32 x 1-1/16 x 9/32")	1	2
	Caster Assembly, Swivel w/ Brake (5")	1	2
	Bushing (15/32 x 1-1/16 x 9/32")	1	2
	Instruction Sheet	1	1
	Bushing (15/32 x 1-1/16 x 9/32")	1	2

Kit, Caster Assembly, Swivel w/ Brake (5") (Pair)

$99.00

Create/add to Wishlist

9884

Base Assembly Only, Adjustable, Chrome (For 9805 Hydraulic Lift)

$602.16

Create/add to Wishlist
