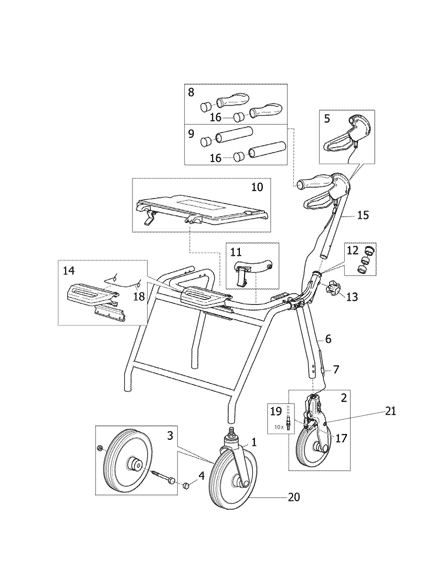

12. Symphony Rollator

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	13565-25-V01	Wheel Assembly, Grey w/ Fork, SL II - Front	1	2	$40.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	70047	Washer, Friction	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	70137	Bushing, Wheel	1	2			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	62005DOL	Bolt, Stem (1/4 x 3/16")	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	12590-25	Wheel Assembly with Fork, Grey, SL II - Rear	1	2		A ,B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	12594	Wheel Assembly with Plastic Fork SLII - Rear	1	2		D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	12609	Wheel with Hardware, Grey, SLII - Front	1	2	$25.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	70050	NLA - Cap, Black Plastic - Front Fork	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1452282	Cap, Black, Plastic - Front Fork (20 pcs)	20	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	12619-L	Kit, Brake Handle - Left	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	12619-R	Kit, Brake Handle - Right	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	80068	Wire	1	2			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1452283	Package, Wire (10 pcs)	10	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	80090	Wire Cover (630mm)	1	2			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1529918	Package, Wire Cover (630MM)	10	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	80089	Wire Cover (550mm)	1	2			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1529917	Package, Wire Cover (550MM)	10	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	80088	Wire Cover (500mm)	1	2			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1529910	Package, Wire Cover (500MM)	10	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	12519	Grip, Anatomical (Pair)	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	12593	Grip, Soft (Pair)	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	12545	Seat Assembly with Hardware, Flip-up	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	12656	Lock, Folding	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1452288	Package, Lock, Folding (10 pcs)	10	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	12687	Hinge Component Assembly (Pair)	2	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	70253	Knob, Adjustable	1	2			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	1452289	Package, Knob, Adjustable	10	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
14	1510376	Kit, Folding Handle	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
15	13509-L	Kit, Handle DABSII - Left	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
15	13509-R	Kit, Handle DABSII - Right	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
16	1529859	End Cap (20 pcs)	20	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
17	12620	Brake Flap Assembly, DABSII	1	2		B ,C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
17	12617	Brake Flap Assembly, DABS	1	2		D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
18	72025	Spring, Torsion Handle	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
18	1529858	Spring for Folding Handle (10 pcs)	10	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
19	1542524	Package, Screw, Adjustment w /Nut (10 pcs)	10	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
20	13511	NLA - Wheel Complete - Front	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
21	13093	Fork, Plastic, Rear	1	2			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	12530-15	Basket, Standard / Low, max load 9 kg	1	1	$55.00	E	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	12538-15	Basket, Super Low, max load 7 kg	1	1		E	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Includes part number 13093, Brake Handle, Adjustment Knob and Washer.
B	Used after March 3, 2010.
C	Includes part number 12707.
D	Used before February 3, 2010.
E	Not Shown.
